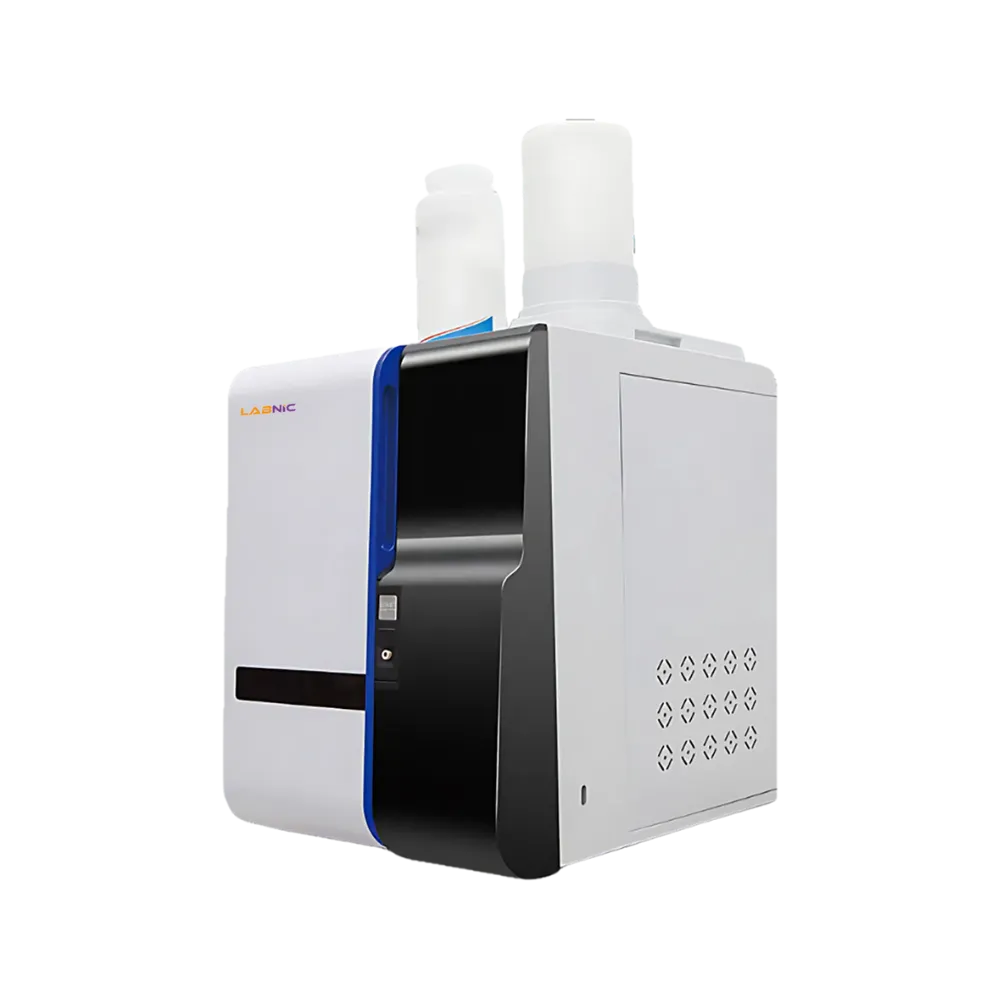

Ion Chromatograph LBN-IC173 is a highly stable device with upgraded circuit technology and it includes a 42 MPa pressure pump with a flow rate range of 0.001 to 9.999 mL/min. It not only detects anions, cations, and other polar substances, but it also separates ions with different orders of magnitude difference while operating at temperatures ranging from 5° to 60° C. The conductivity detector has a 0.8L cell volume and can detect signals with concentrations ranging from ppb to ppm without adjusting the range.
| Cell Volume | ≤0.8 µL |
| Detection Range | 0 to 50000 µS/cm |
| Detection Resolution | ≤0.0020 ns/cm |
| Electronic Noise | 0.02 ns |
| Baseline Noise | ≤0.001 µs |
| Baseline Drift | ≤0.001 µs |
| Pump Maximum Pressure | 42 MPa |
| Pressure Display Accuracy | ≤0.1 MPa |
| Flow Rate Range | 0.001 to 9.999 mL/min |
| Injector Maximum Pressure | 35 MPa |
| Detector Maximum Pressure | 10.0 MPa |
| Eluent Type | KOH/NaOH |
| Eluent Concentration Range | 0.1 to 100 mM |
| Concentration Increment | 0.1 mM |
| Pressure | 0.1 – 5.0 mL/min |
| Operating Temperature Range | ≤ 30 MPa |
| Temperature Accuracy | 5° to 60°C |
| Power Requirement | ± 1°C |
| Dimension (L×W×H) | 150 W |
| Net Weight | 350×470×650 mm |
| Gross Weight | 34 Kg |
Ion Chromatographs are widely used in the fields of environment protection, disease control, food industries, chemical industries commercial labs, electronics, mining and metallurgy.
Ion Chromatographs are widely used in the fields of environment protection, disease control, food industries, chemical industries commercial labs, electronics, mining and metallurgy.
Most Frequently Asked Questions
1. What are Ion Chromatographs used for?
Ans. Ion Chromatographs are used for separation and analysis of charged particles in liquid samples with high precision.
2. What type of analysis can Ion Chromatographs perform?
Ans. Ion Chromatographs detect trace levels of ions in complex mixtures for accurate qualitative and quantitative analysis.
3. How do Ion Chromatographs ensure reliable results?
Ans. Ion Chromatographs are engineered with advanced detection systems to deliver consistent and dependable analytical results.
4. Do Ion Chromatographs support automated operation?
Ans. Ion Chromatographs include automated sample handling to improve efficiency and reduce manual errors.
5. How do Ion Chromatographs improve laboratory workflows?
Ans. Ion Chromatographs enhance workflow efficiency through precise analysis and reduced operator intervention.
6. Where are Ion Chromatographs commonly used?
Ans. Ion Chromatographs are commonly used in commercial laboratories, food industries, and environmental protection applications.
Ion Chromatograph LBN-IC173 is a highly stable device with upgraded circuit technology and it includes a 42 MPa pressure pump with a flow rate range of 0.001 to 9.999 mL/min. It not only detects anions, cations, and other polar substances, but it also separates ions with different orders of magnitude difference while operating at temperatures ranging from 5° to 60° C. The conductivity detector has a 0.8L cell volume and can detect signals with concentrations ranging from ppb to ppm without adjusting the range.
