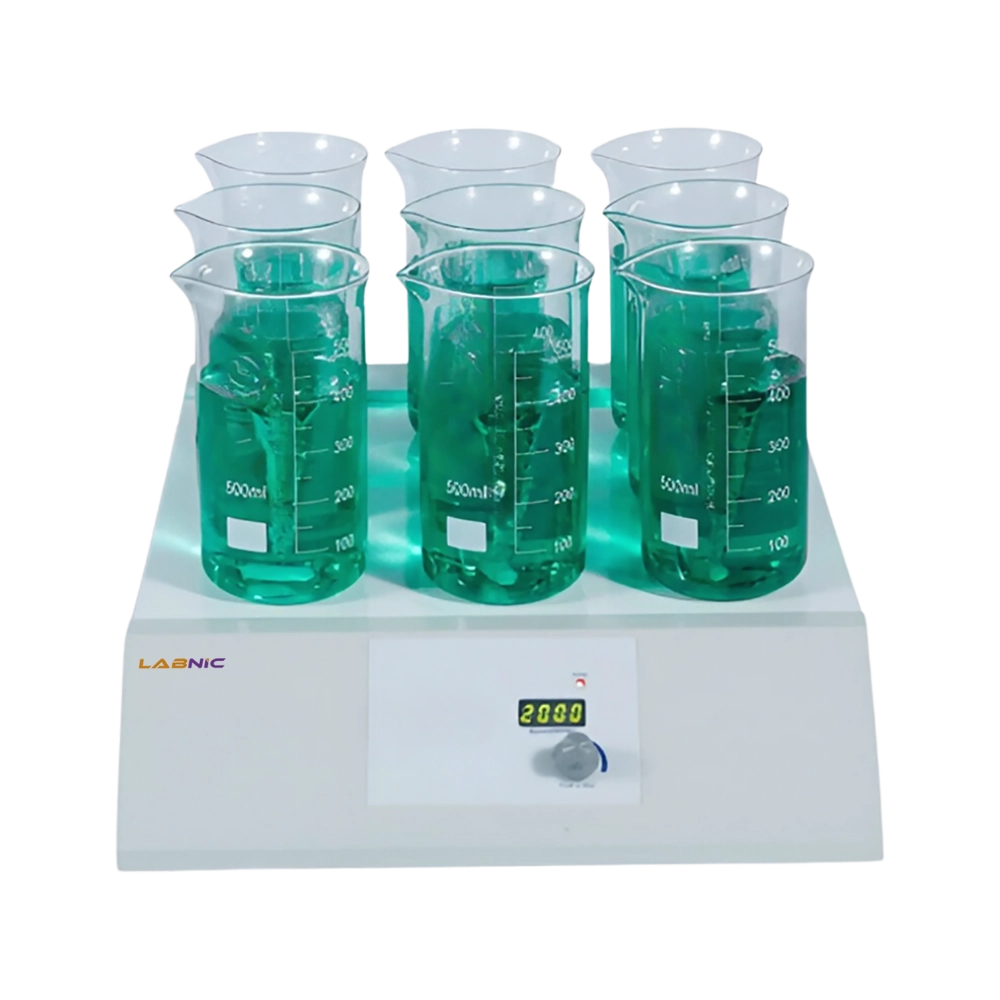

Multi-Position Magnetic Stirrer LBN-MM186 features nine stirring positions for enhanced mixing capacity. It operates within a speed range of 100 to 2000rpm for diverse applications. Incorporated with a digital display for precise monitoring during operation. Built-in ceramic coated stainless-steel plate offer chemical resistance. Our Multi-Position Magnetic Stirrer is perfect for chemical, biological research, and laboratory experiments.
| Number of Stirring Positions | 9 |
|---|---|
| Maximum Stirring Quantity per Position | 1L (H2O) |
| Speed Range | 100 to 2000rpm |
| Speed Control | 1rpm/step |
| Stirring Position Distance | 100mm |
| Stirring Bar Length | 25 to 35mm |
| Plate Material | Ceramic Coated Stainless Steel |
| Chemical Resistant | Yes |
| Operation Temperature | 5 to 40℃ |
| Operation Relative Humidity | 80% |
| Protection Class According to DIN EN 60529 | IP42 |
| Power Supply | 110 to 240 V |
| Frequency | 50/60Hz |
| Power Consumption | 70W |
| Fuse | 2x T6A 250V |
| Plate Dimensions | 330×300mm |
| Dimensions (L×W×H) | 450×330×80mm |
| Weight | 4.8 kg |
Overheat protection function
PID control mechanism
Knob control system
Brushless DC motor
Maximum 1L quantity per position
Multi-Position Magnetic Stirrer LBN-MM186 is perfect for chemical synthesis, biological research, pharmaceutical development, academic and general laboratory applications.
