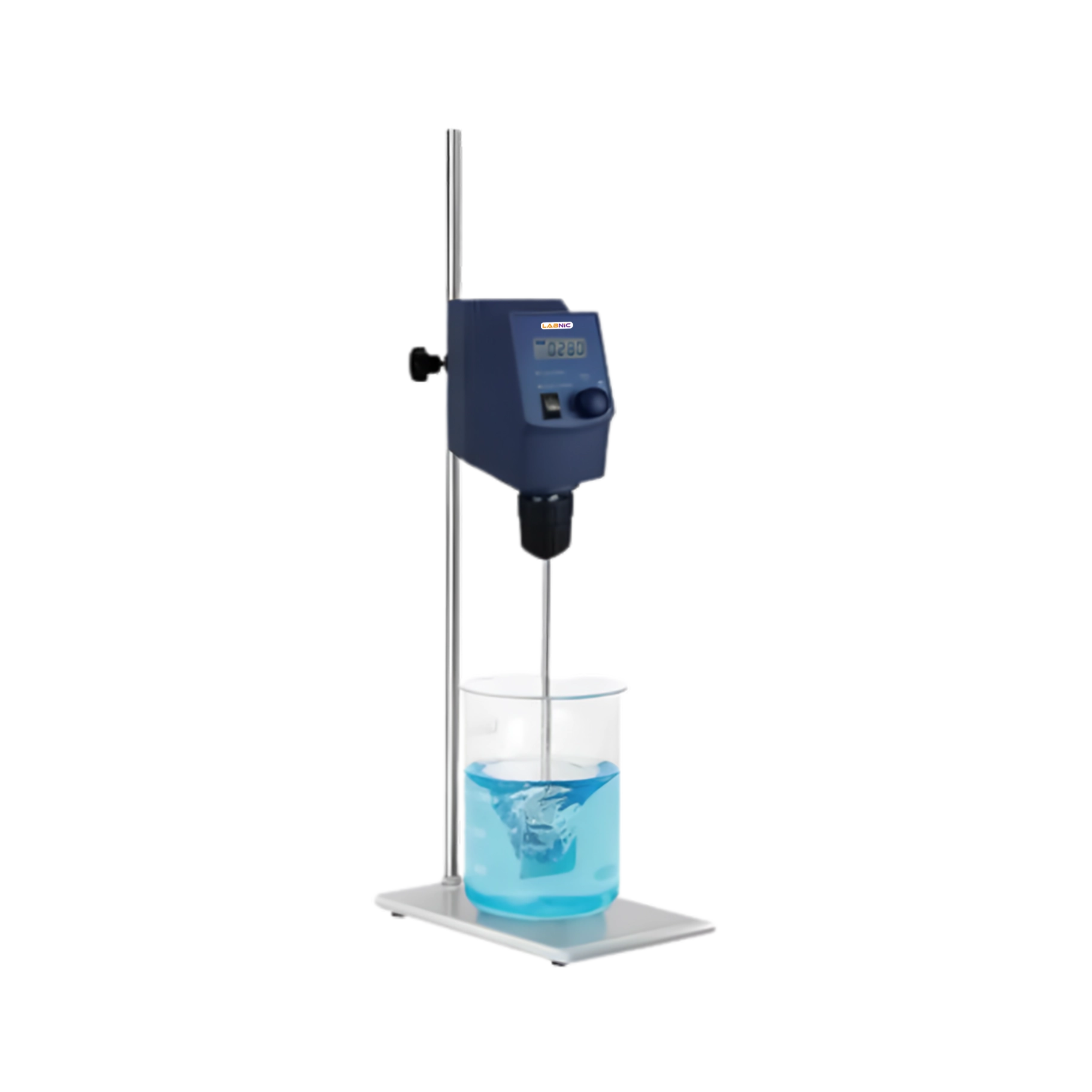

Overhead Stirrer LBN-OS125

Overview

Overhead Stirrer LBN-OS125 is a Laboratory stirrer that is ideal for stirring a maximum quantity of 40 L. Equipped with an LCD screen for monitoring the speed at the range of 50 to 2200 rpm. The stirrer produces constant speed even if the viscosity of the sample changes. Driven by brushless DC motor producing highly reliable results. Provides remote function with PC control and data transmission.

Specifications :

Speed Range	50 to 2200 rpm
Maximum Stirring Quantity [H2O]	40 L
Speed Display Accuracy	±3 rpm
Speed Display	LCD
Motor Type	Brushless DC motor
Ambient Temperature	5 to 40 °C
Humidity	80 %RH
Maximum Torque	60 Ncm
Maximum Viscosity	10000 mPas
Chuck Range Diameter	0.5 to 10 mm
Data Connector	RS232
Overload Protection Display	LED lights
Power	130 W
Motor Input Power	60 W
Motor Output Power	50 W
Voltage	100 to 240V, 50/60 Hz
Dimension [W×D×H]	83×220×186 mm
Weight	2.8 kg

Features :

• It has high reliability and outstanding performance
• Designed with an LCD for precise monitoring of set and actual speeds, a wide range of speeds from 50 to 2200 rpm with control accuracy of ±3rpm
• Equipped with Brushless DC motor for long life, maintenance-free and explosion-proof, torque trend display for real-time information on viscosity change
• Featured with safety circuits, in case of anti-stall or overload conditions the device automatically stops functioning
• Smooth operation prevents accidental spillage and splashing of sample solution
• Even with the change in viscosities of the samples it maintains constant speed
• Can be connected to PC for remote operation and data transmission
• Adopts auto-restart function in case of power loss for overnight operations

Applications :

Overhead Stirrer are mainly used for mixing, homogenizing, suspending, and recirculating large volumes or high-viscosity substances.
