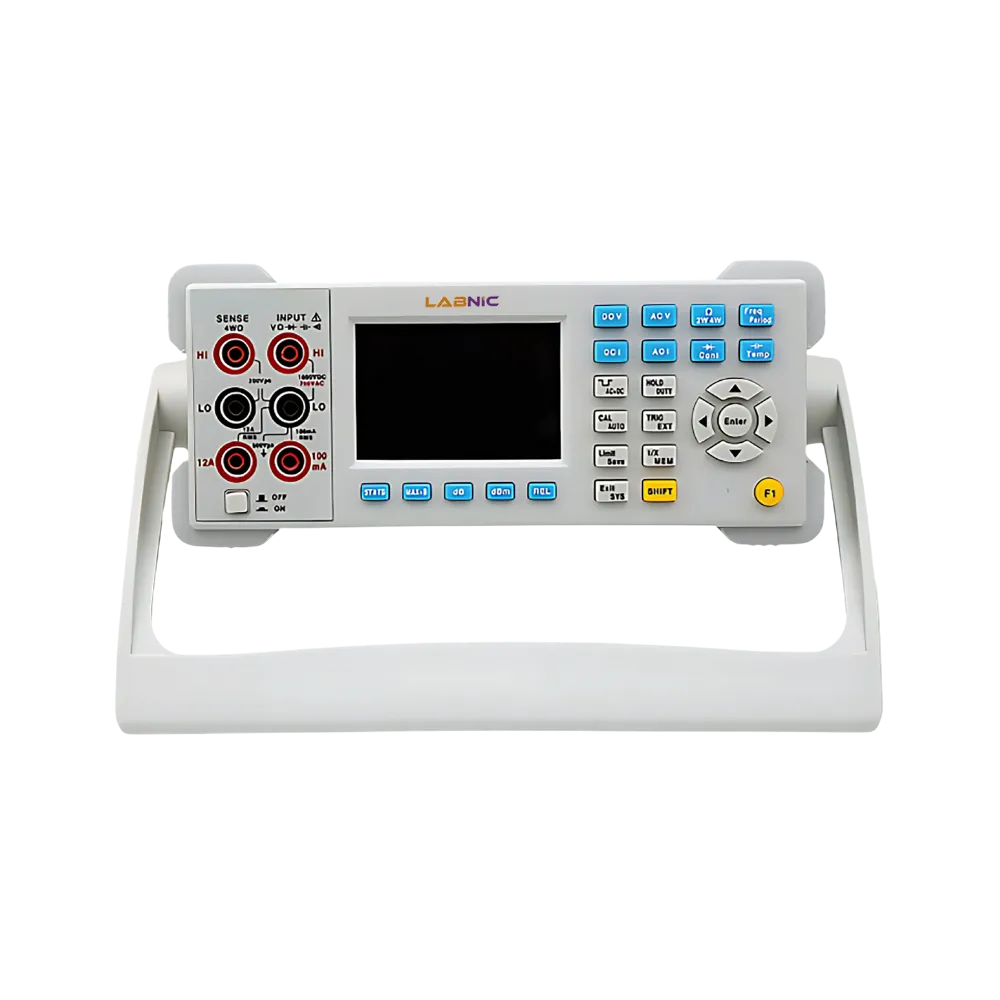

Portable Digital Multimeter LBN-MT121 Catalog

Portable Digital Multimeter LBN-MT121 offers precise reading for range of parameters and measures voltage up to 1000V. It includes both internal and external calibration to improve accuracy. Equipped with a customizable display interface with options for graphics, numbers, and mathematical functions. Our Portable Digital Multimeter is suitable for applications in research laboratories, quality assurance and environmental evaluations.

DC Voltage Accuracy	±0.0035% MV + 0.0005% FSR
DC Voltage Range	0 mV to 1000 V
DC Voltage Resolution	100 nV
AC Voltage Accuracy	±0.06% MV + 0.03% FSR
AC Voltage Range	1 mV to 750 V
AC Voltage Resolution	100 nV
Frequency Range	3 Hz to 300 kHz
DC Current Accuracy	±0.05% MV + 0.006% FSR
DC Current Range	0 µA to 12 A
DC Current Resolution	1 × 10⁻¹² A
AC Current Accuracy	±0.10% MV + 0.04% FSR
AC Current Range	1 µA to 12 A
AC Current Resolution	1 × 10⁻¹⁰ A
AC Frequency Range	3 Hz to 10 kHz
Resistance Accuracy	±0.01% MV + 0.001% FSR
Resistance Range	0 Ω to 1 GΩ
Resistance Resolution	10 µΩ
Frequency/Period Accuracy	0.0001
Frequency/Period Range	3 Hz to 1 MHz
Frequency/Period Resolution	1 µHz
Capacitance Accuracy	±1% MV + 0.3% FSR
Capacitance Range	0 nF to 100 mF
Capacitance Resolution	1 pF
On/Off/Diode Test	Yes
DC Reference Range	100 mV to 10 V
DC Input Range	100 mV to 1000 V
Temperature Type	Platinum, Thermistor and custom sensor
Temperature Range	‘-5°C to +45°C
Temperature Resolution	0.001°C
Humidity Range	5% to 85% RH
Display	3.5-inch Color Screen (320 × 480 resolution)
Digits Displayed	6 1/2 digits
Signal Terminal	Front-End
Measurement Speed	2500 Readings Per Second
Mathematical Functions	Maximum, Minimum, Average, Standard Deviation, dB, dBm, Read Retention, Limit Test
Graphics	Histogram, Trend Graph
Interface	RS232, USB Host, USB Device, LAN, Wifi, Bluetooth, IEEE 488
Programming Compatibility	SCPI
Data Storage	512 kB
Power Supply	220V AC ±10% / 45 to 66 Hz<hr> 110V AC ±10% / 45 to 440 Hz
Dimension	265 × 105 × 335 mm
Weight	2.7 kg

Compact and simple design

Dual-parameter Display

Adjustable speed settings

Supports standard commands

Provides platinum, thermistor, custom sensors

Multiple display format options

Portable Digital Multimeter LBN-MT121 is essential for various applications in research and laboratories, including electrical measurements, system diagnostics, and testing of various components.
