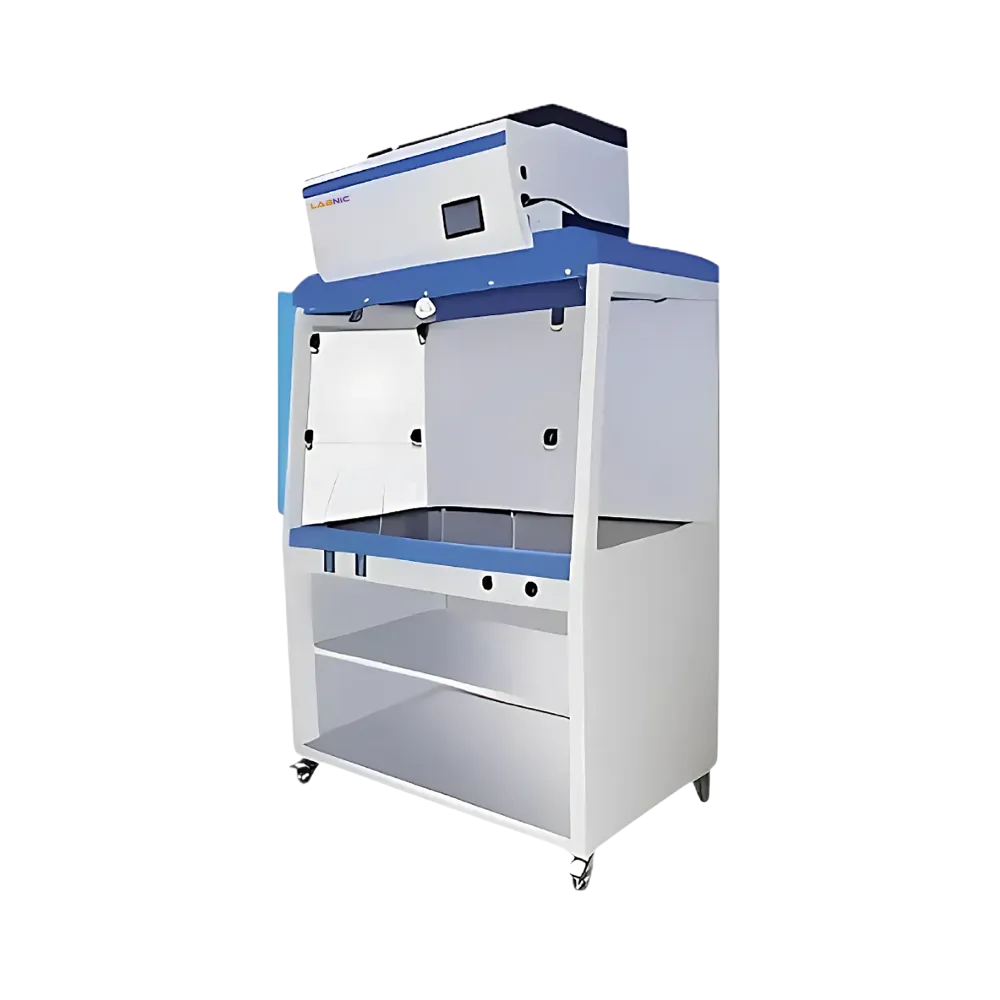

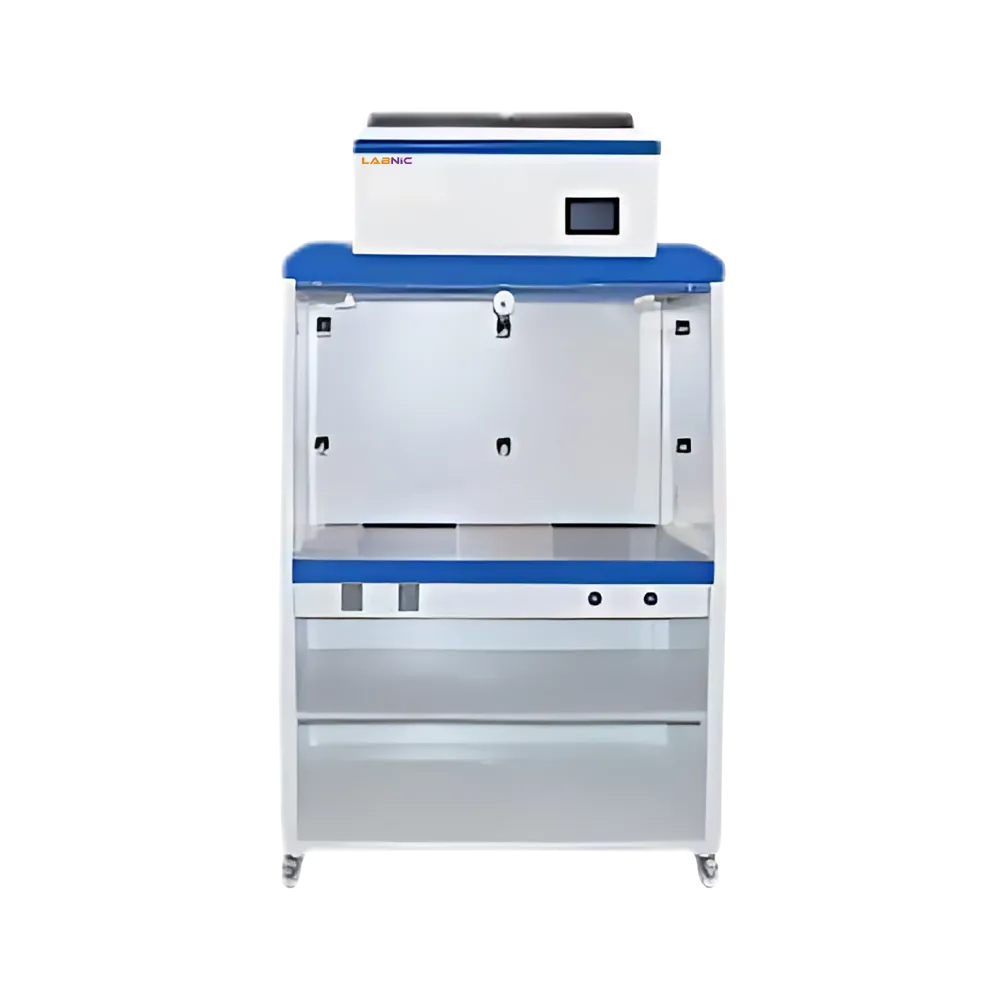

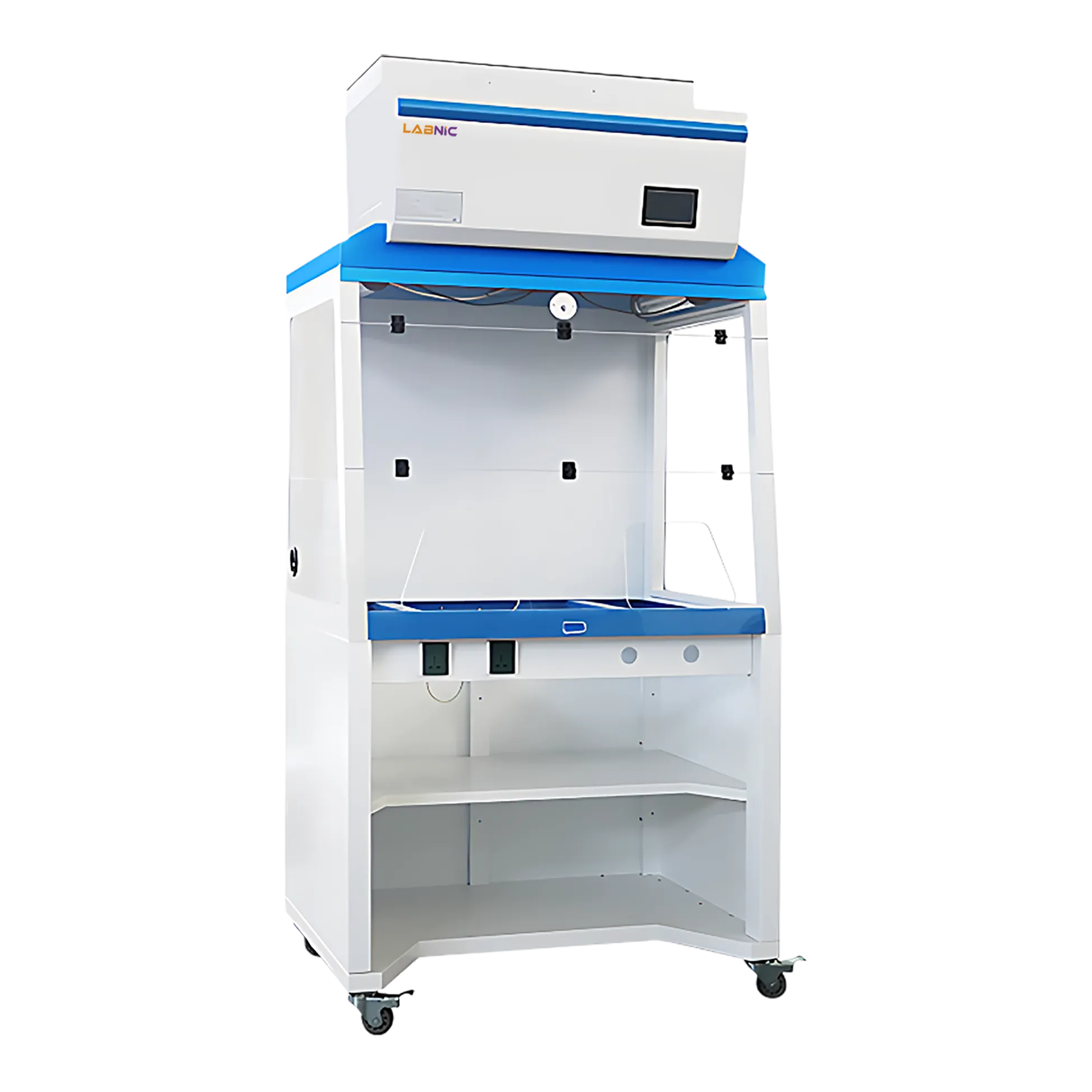

Ductless Fume Hood LBN-DF165

Ductless Fume Hood LBN-DF165

Ductless Fume Hood LBN-DF165 provides effective ventilation with an air velocity ranging from 0.4 ~ 0.6 m/s. It offers touch screen controls for straightforward operation. Equipped with an ergonomic slope to improve comfort and minimize strain during extended use. Built in sensors monitor the temperature and humidity levels in the workstation. Our Ductless Fume Hood is suitable for chemical handling, fume extraction, and sample preparation.

Air Velocity 0.4 ~ 0.6 m/s
Airflow Volume 432 m³/h
Work Surface Height 900 mm
Maximum Opening 650 mm
UV Lamp Emission of 253.7 nm for efficient decontamination (optional)
Blower Built-in centrifugal blower, speed adjustable
Front Window Acrylic window, manual, reversal design
External Size 1500 × 940 × 2140 mm
Internal Size 1410 × 690 × 740 mm
Exterior Material Cold-rolled steel with anti-bacteria powder coating
Side Window Material Acrylic window
Work Table Material Chemical resistant phenolic resin
Fluorescent Lamp 12W × 3
Noise ≤ 58 dB(A)
Power Consumption 500 Watt
Power Supply AC 220V ± 10%, 50/60Hz; 110V ± 10%, 60Hz
Chemical Filter 4 pcs
Main Body Packaging Size 1650 × 1110 × 1490 mm
Base Cabinet Size 1650 × 1110 × 1060 mm
Gross Weight 380 kg

Digital display for real-time monitoring

LED lamp for illumination

Compact design for space efficiency

Safe electronic control system

Auto-restart function

Data storage option

Fluorescent lamp


Base cabinet with 2 × waterproof sockets
Chemical filter

Ductless Fume Hood LBN-DF165 is essential for chemical analysis, sample preparation, biological research, environmental testing, and product development, providing a safe workspace for handling hazardous substances.

Download Catalog for Ductless Fume Hood LBN-DF165

Download

Ductless Fume Hood

Labnic Ductless Fume Hood filters and recirculates air for safe handling of indoor hazardous compounds. They offer adjustable airflow control to ensure user safety. Their filtering technology captures chemical vapours and particulates maintaining air purity. These hoods have illumination to increase visibility while working. Our Ductless Fume Hood is suitable for electronics, pharmaceutical research, and chemical processing.

Ductless Fume Hood LBN-DF161

Ductless Fume Hood LBN-DF161

Airflow Volume : 136m3/h

Worksurface Height : 900 mm

Maximum Opening : 650 mm

Air Velocity : 0.4 – 0.6 m/s

Ductless Fume Hood LBN-DF162

Ductless Fume Hood LBN-DF162

Airflow Volume : 136m3/h

Worksurface Height : 900 mm

Maximum Opening : 650 mm

Air Velocity : 0.4 – 0.6 m/s

Ductless Fume Hood LBN-DF163
Ductless Fume Hood LBN-DF163

Airflow Volume : 432m3/h

Worksurface Height : 900 mm

Maximum Opening : 650 mm

Air Velocity : 0.4 – 0.6 m/s

Ductless Fume Hood LBN-DF164
Ductless Fume Hood LBN-DF164

Airflow Volume : 547m3/h

Worksurface Height : 900 mm

Maximum Opening : 650 mm

Air Velocity : 0.4 – 0.6 m/s

Labnic PP Spray Fume Hood is built with durable, high-quality polypropylene (PP) material resistant to various chemicals and corrosion. They feature customizable countertop options, including solid core, PP, and ceramic materials. Their exhaust system optimizes airflow and reduces harmful fumes. These hoods have integrated control panels making it easy to manage lighting, circuits, and airflow. Our PP Spray Fume Hood includes an adjustable sash for improved visibility and a comfortable workspace.

PP Spray Fume Hood LBN-PF164

PP Spray Fume Hood LBN-PF164

Material : Porcelain white PP, 8mm thickness

Airflow Velocity : 0.3 ~ 0.8 m/s

Exhaust Volume : 1130 m3 /h

Waterproof Socket : Two, total load ≤500 W

PP Spray Fume Hood LBN-PF162
PP Spray Fume Hood LBN-PF162

Material : Porcelain white PP, 8mm thickness

Airflow Velocity : 0.3 ~ 0.8 m/s

Exhaust Volume : 700 m3 /h

Waterproof Socket : Two, total load ≤500 W

PP Spray Fume Hood LBN-PF163
PP Spray Fume Hood LBN-PF163

Material : Porcelain white PP, 8mm thickness

Airflow Velocity : 0.3 ~ 0.8 m/s

Exhaust Volume : 920 m3 /h

Waterproof Socket : Two, total load ≤500 W

PP Spray Fume Hood LBN-PF161

PP Spray Fume Hood LBN-PF161

Material : Porcelain white PP, 8mm thickness

Airflow Velocity : 0.3 ~ 0.8 m/s

Exhaust Volume : 560 m3 /h

Waterproof Socket : Two, total load ≤500 W

Labnic Ducted Fume Hood offer precise airflow for effectively removing hazardous fumes and airborne contaminants. They provide adjustable front windows for easy and safe operation. These hoods are made of premium material for durability and stability. They have intuitive interface for user-friendly process. Our safety-compliant Ducted Fume Hood ensures optimal protection and performance for versatile applications in laboratories and industries.

Ducted Fume Hood LBN-FH161
Ducted Fume Hood LBN-FH161

External Dimension : 1200 × 800 × 2550 mm

Internal Dimension : 990 × 605 × 900 mm

Maximum Opening : 500 mm

Air Velocity : 0.3m/s to 0.8 m/s

Labnic Walk-In Fume Hood is designed to handle large-scale experiments with ease. They are equipped with high-capacity filters for demanding operations. Their built-in memory function retains settings during power failure. They feature water and gas taps, along with gas and water valves for added safety. Our Walk-In Fume Hood is ideal for chemical fume control, powder and dust removal, solvent vapour control and more.

Walk-In Fume Hood LBN-WF162

Walk-In Fume Hood LBN-WF162

Maximum Opening : 1300 mm

Exhaust Air Flow Volume : 1500m3/h

Inflow Air Velocity : 0.3 – 0.8 m/s

Noise : ≤62 dB

Walk-In Fume Hood LBN-WF161

Walk-In Fume Hood LBN-WF161

Maximum Opening : 1300 mm

Exhaust Air Flow Volume : 1150m3/h

Inflow Air Velocity : 0.3 – 0.8 m/s

Noise : ≤62 dB

Walk-In Fume Hood LBN-WF163
Walk-In Fume Hood LBN-WF163

Maximum Opening : 1300 mm

Exhaust Air Flow Volume : 1850m3/h

Inflow Air Velocity : 0.3 – 0.8 m/s

Noise : ≤62 dB

Labnic Stainless Steel Fume Hood provides a durable and corrosion-resistant workspace. They feature a high-quality construction, ensuring long-term reliability. These incorporate an efficient exhaust system that removes hazardous fumes effectively. Their integrated airflow management enhances safety by maintaining proper ventilation. Our Stainless Steel Fume Hood is essential for chemical research, pharmaceutical labs, and industrial applications.

Stainless Steel Fume Hood LBN-SF161

Stainless Steel Fume Hood LBN-SF161

Material : Stainless Steel

Work Surface Height : 800 mm

Maximum Opening of Window : 750 mm

Air Velocity : 0.4~0.6m/s
