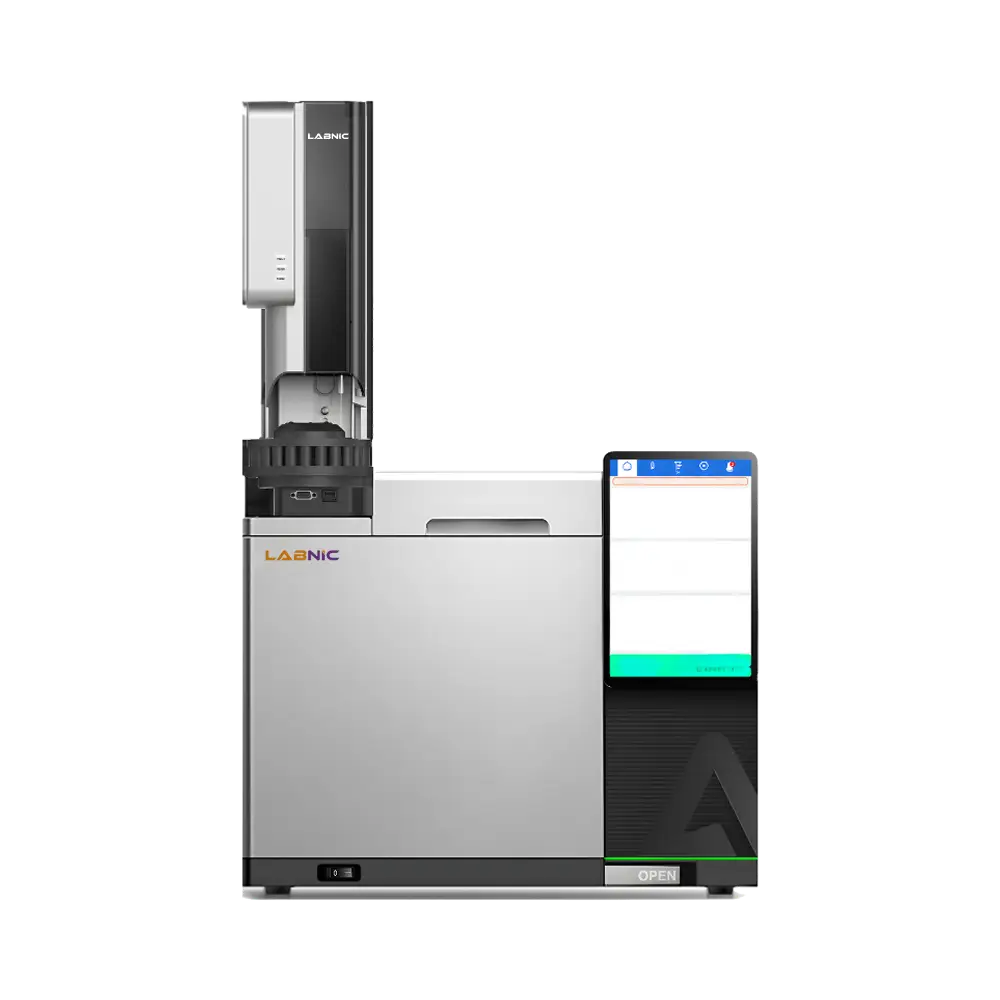

Gas Chromatography System LBN-GC111 delivers high-precision analytical performance with advanced temperature, flow, and pressure control supported by a quad-core processor. It features a 10.1-inch high-definition touch screen for intuitive operation and clear visualization. Equipped with a self-tuning PID algorithm, remote browser-based control, and QR-code column information loading for smart automation. Integrated multi-detector support (FID, ECD, TCD, FPD, MSD) and high-speed 1000Hz data acquisition with secure electronic signature reporting. Our Gas Chromatography System is ideal for petrochemical testing, pharmaceuticals, environmental monitoring, food safety laboratories, research institutions, and quality control applications.
| Retention Time Reproducibility | < 0.008% or < 0.0008 min |
| Peak Area Reproducibility | ≤ 1% RSD |
| Inlet Type | Split / Spitless Inlet Ports |
| Maximum Inlet Temperature | 450°C |
| Electronic Pressure Control Accuracy | 0.001 psi |
| Control Range | 0 to 100 psi (0 to 150 psi optional) |
| Maximum Split Ratio | 12,500:1 |
| Column Oven Temperature Range | +4°C to 450°C above room temperature |
| Temperature Precision | ≤ 0.1°C |
| Max Heating Rate | ≥ 75°C/min or ≥ 120°C/min (optional) |
| Column Cooling Time | 450°C to 50°C in < 5 min |
| Detector Options | FID, ECD, TCD, FPD, MSD |
| FID Max Operating Temp | 450°C |
| FID Minimum Detection Limit | ≤1.5 pg/s |
| FID Linear Range | ≥10⁷ |
| ECD Minimum Detection Limit | ≤6 × 10⁻¹⁵ g/mL |
| ECD Linear Range | ≥10³ |
| Autosampler Capacity | 16 Sample Positions |
| Injection Volume | 0.1 to 5 mL |
| Data Acquisition Rate | Up to 1000 Hz |
| Remote Control | Mobile / Tablet / PC Browser Based |
| Workstation Software | Electronic Signature, Batch Processing |
| Power Supply | 220V ±10%, 50Hz ±2% |
| Ambient Temperature | 5°C–40°C |
| Relative Humidity | 20% to 85% RH |
Liquid Autosampler, 150 Positions 1 Set
Split/Split Less Injection Port with EFC Control 1 Set
Liquid Autosampler, 16 Positions 1 Set
FID Detector (EPC Component) 1 Set
SE-30 Column 1 Pcs
Gas Chromatography System LBN-GC111 is ideal for petrochemical analysis, pharmaceutical testing, environmental monitoring, food safety inspection, forensic toxicology, research laboratories, universities, and industrial quality control applications.
Gas Chromatography System LBN-GC111 is ideal for petrochemical analysis, pharmaceutical testing, environmental monitoring, food safety inspection, forensic toxicology, research laboratories, universities, and industrial quality control applications.
Most Frequently Asked Questions
1. What analytical applications is the Gas Chromatography System LBN-GC111 designed for ?
Ans. The Gas Chromatography System LBN-GC111 is designed for high-precision qualitative and quantitative analysis in petrochemical testing, pharmaceutical analysis, environmental monitoring, food safety laboratories, research institutions, and quality control applications.
2. How does the Gas Chromatography System LBN-GC111 ensure precise temperature and pressure control?
Ans. The Gas Chromatography System LBN-GC111 utilizes a quad-core intelligent control system with a self-tuning PID algorithm and high-accuracy electronic pressure control to maintain stable temperature, flow, and pressure conditions throughout analysis.
3. What detector options are supported by the Gas Chromatography System LBN-GC111?
Ans. The Gas Chromatography System LBN-GC111 supports multiple detectors including FID, ECD, TCD, FPD, and MSD, allowing flexible configuration for diverse analytical requirements.
4. How does the Gas Chromatography System LBN-GC111 improve operational efficiency?
Ans. The Gas Chromatography System LBN-GC111 features A10.1-inch high-definition touch screen, one-click batch data processing, smart column QR-code identification, and high-speed 1000 Hz data acquisition for efficient and streamlined workflows.
5. What remote operation capabilities are available in the Gas Chromatography System LBN-GC111?
Ans. The Gas Chromatography System LBN-GC111 supports remote browser-based control via mobile devices, tablets, and PCs, enabling convenient monitoring and operation from multiple platforms.
6. How does the Gas Chromatography System LBN-GC111 support data integrity and compliance?
Ans. The Gas Chromatography System LBN-GC111 is integrated with workstation software that supports electronic signatures, secure data handling, and batch processing to meet laboratory documentation and compliance requirements.
7. What features support high-speed and high-resolution analysis in the Gas Chromatography System LBN-GC111?
Ans. The Gas Chromatography System LBN-GC111 offers rapid temperature ramping up to 75°C/min (120°C/min optional), fast column cooling, and high-sensitivity detector performance for accurate and high-resolution chromatographic analysis.
8. What is gas chromatography-mass spectrometry?
Ans. It is an analytical technique that combines gas chromatography and mass spectrometry to separate and identify chemical compounds in a sample.
9. What is gas chromatography-mass spectrometry used for?
Ans. It is used on forensic analysis, environmental testing, food safety, pharmaceutical research, and chemical analysis.
10. What types of samples can be analyzed using gas chromatography-mass spectrometry?
Ans. It is commonly used for volatile and semi-volatile organic compounds in gases, liquids, and solids.
11. What gases are used in gas chromatography-mass spectrometry?
Ans. Helium, nitrogen, or hydrogen are commonly used carrier gases in the gas chromatograph.
12. How long does a gas chromatography-mass spectrometry analysis take?
Ans. The duration varies typically ranges from a few minutes to an hour, depending on the complexity of the sample.
Gas Chromatography System LBN-GC111 delivers high-precision analytical performance with advanced temperature, flow, and pressure control supported by a quad-core processor. It features a 10.1-inch high-definition touch screen for intuitive operation and clear visualization. Equipped with a self-tuning PID algorithm, remote browser-based control, and QR-code column information loading for smart automation. Integrated multi-detector support (FID, ECD, TCD, FPD, MSD) and high-speed 1000Hz data acquisition with secure electronic signature reporting. Our Gas Chromatography System is ideal for petrochemical testing, pharmaceuticals, environmental monitoring, food safety laboratories, research institutions, and quality control applications.
