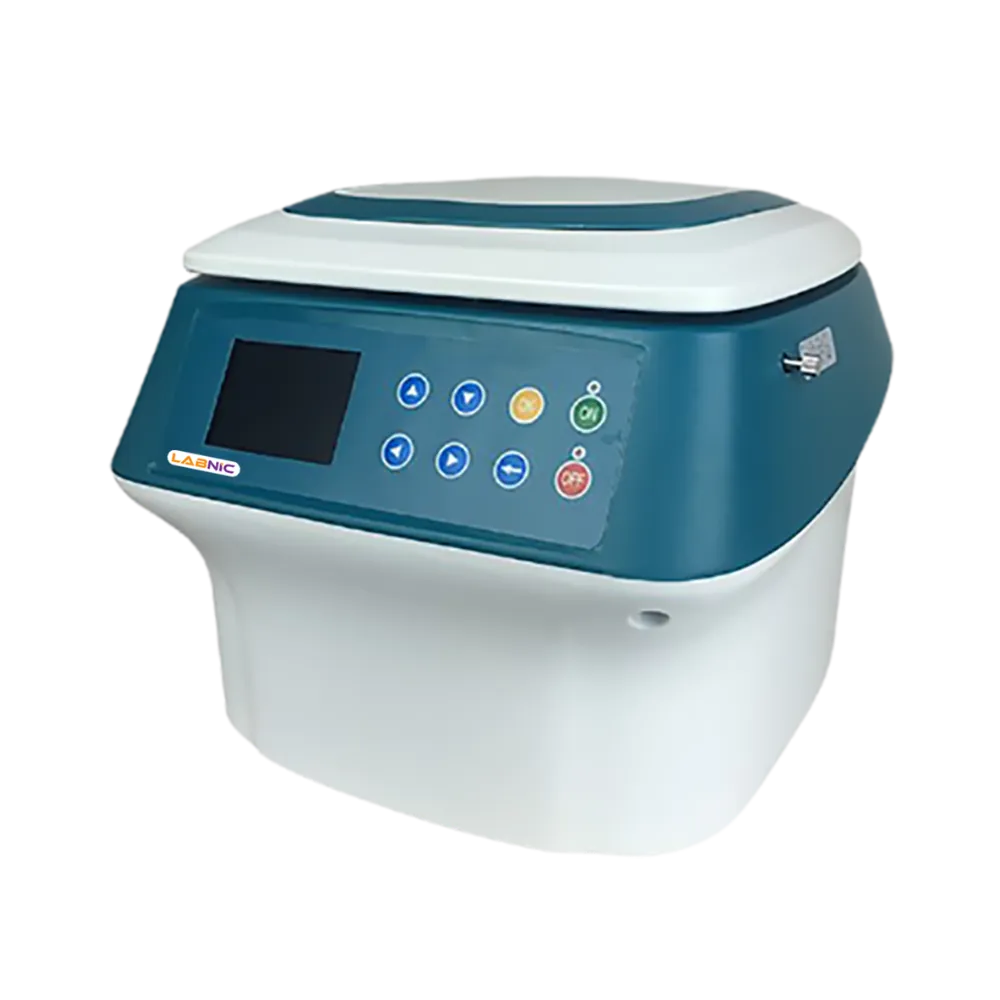

High Speed Centrifuge LBN-HC145 is a clinical benchtop model that runs at a maximum speed of 16000 rpm with a maximum RCF OF 17000 × g. It adopts brushless motors exhibit minimized energy use, long life, high output, low vibration and low noise thereby making it safe, reliable and user friendly. Automatic lid opening and control panel with a touchscreen display are its unique characteristics that facilitates a simple user interface for immediate, effortless productivity, operation monitoring and easy cleaning.
| Maximum RPM | 16000 rpm |
| Maximum RCF | 17000 x g |
| Timer | 0 to 99 min |
| Rotor capacity | 1.5 ml/2 ml ×12 (standard) |
| Voltage | 110 V 60 Hz /220 V 50 Hz |
| Dimension (W×D×H) | 320 x 340 x 280 mm |
| Gross weight/Net weight | 9 kg |
Maintanence free induction brushless motor drive for safe, quiet and smooth operation
Strong plastic case with metal lid
Overspeed and imbalance monitoring systems to detect and control rotor speed and rotor imbalance
Error code display system where an error code will be displayed on the display screen if any problem arises during operation
LCD display system to indicate rotational speed rates, RCF and time
Innovative control panel with a touch screen that is easy to operate
Automatic lid opening at the end of the run to prevent sample warming and allow for easy access
Adjustable speed rates to ensure rapid seperation
It is widely applied in the fields of biology, pharmacology and agriculture and are ideal for cellular and molecular biology work with clinical preparations and industrial applications.
