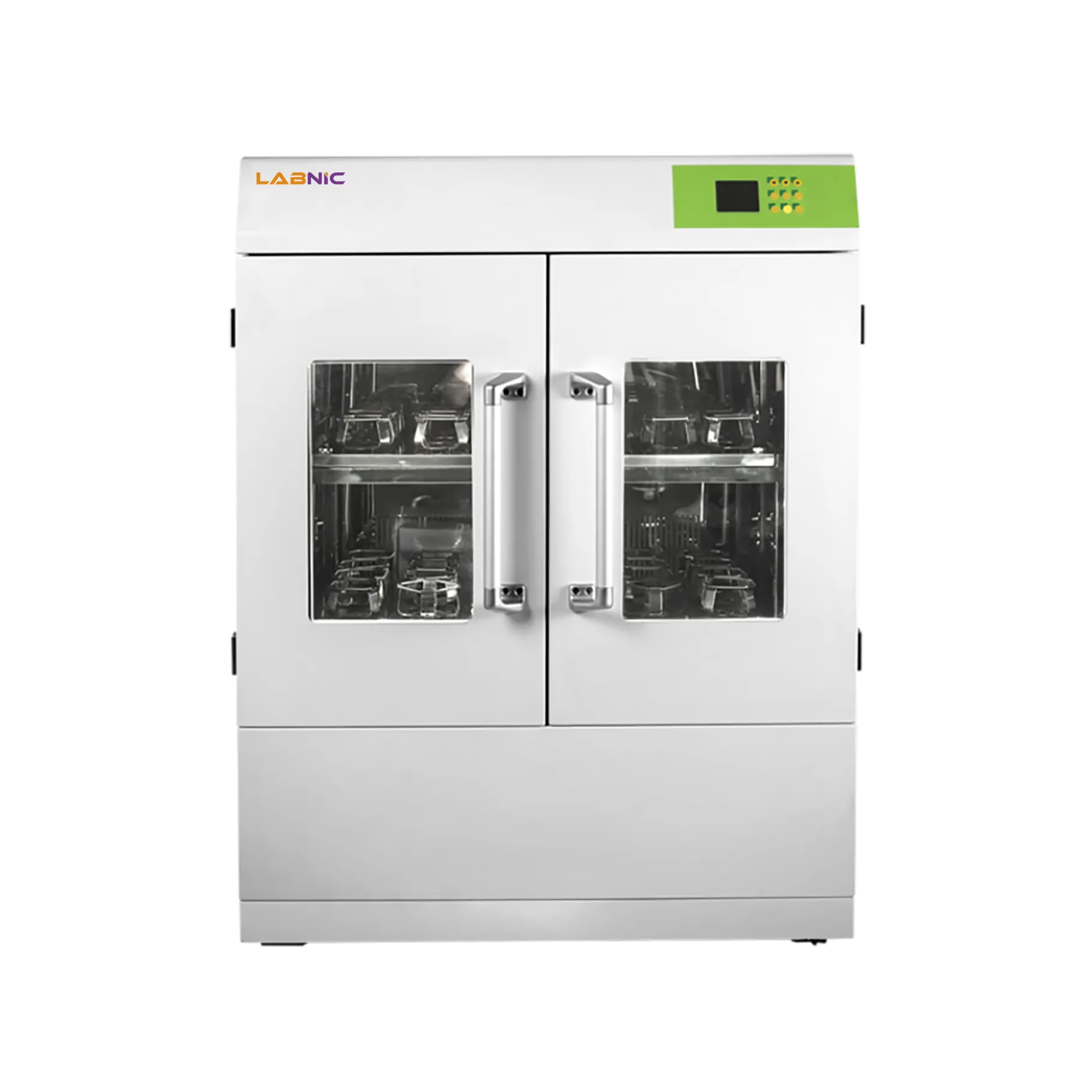

Laboratory Shaker Incubator LBN-LS145 is a 582 L device, offering a temperature range of 4 to 60 °C adopting a strong and fast refrigeration system for instant cooling requirements and automatic defrost. Equipped with a high-quality steel shell, polished stainless-steel chamber with a unique slope design panel, large LCD having a better visual effect. The double door is provided with a large view window and a leakage protection system.
| Temperature Range | 4 to 60 °C |
| Capacity | 582 L |
| Shaking Speed | 40 to 300 rpm |
| Temperature Accuracy | ± 0.1 °C |
| Temperature Uniformity | ± 1 °C |
| Time Range | 1 to 9999 min |
| Swing Amplitude | Φ26 mm |
| Speed Accuracy | ±1 rpm |
| Refrigeration System | Fast refrigeration with instant cooling and automatic defrosts |
| Door | Double |
| Standard Configuration | 250 ml×45 or 500 ml×37 |
| Maximum Capacity | 250 ml×90 or 500ml×74 or 1000 ml×36 or 5000 ml×8 |
| Display | LCD |
| No. Of Trays | 2 |
| Tray Size | 970×760 mm |
| Voltage | AC 220V to 240V ± 10 %, 50 to 60 Hz |
| Power | 1420 W |
| Chamber Dimension (W×D×H) | 1095×625×850 mm |
| External Dimension (W×D×H) | 1200×820×1600 mm |
| Net Weight | 425 kg |
Incubator is integrated with shaker saving the space and cost
Designed with a superior-quality steel shell, polished stainless-steel chamber
Slope design panel with large LCD for better visual effect
The door is provided with a large view window, a leakage protection system, and built-in lighting for easy observation
Comes with operation data memory and password locking function to eliminate faulty operation
Non-volatile memory retrieves the settings if any power fluctuations occur, and the device automatically restarts as originally programmed after power is restored
Audible and visual alarm system alerts the user if the measured temperature deviates from set temperature by 3℃ and it automatically stops heating
Equipped with the most advanced large torque motor to ensure continuous work without maintenance and low noise
Laboratory Shaker Incubators are often used for cell culturing, cell aeration, and solubility studies mainly in the field of biology and chemistry.
Download Catalog for Laboratory Shaker Incubator LBN-LS145
