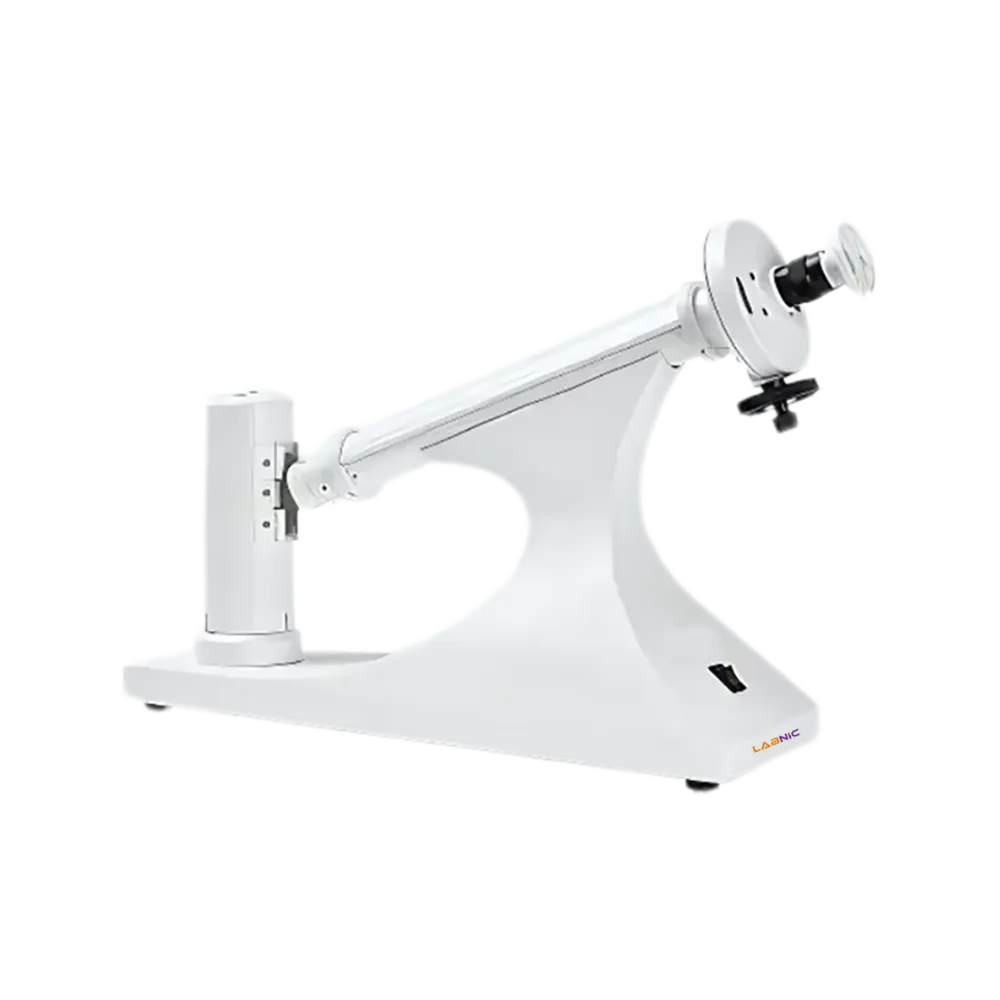

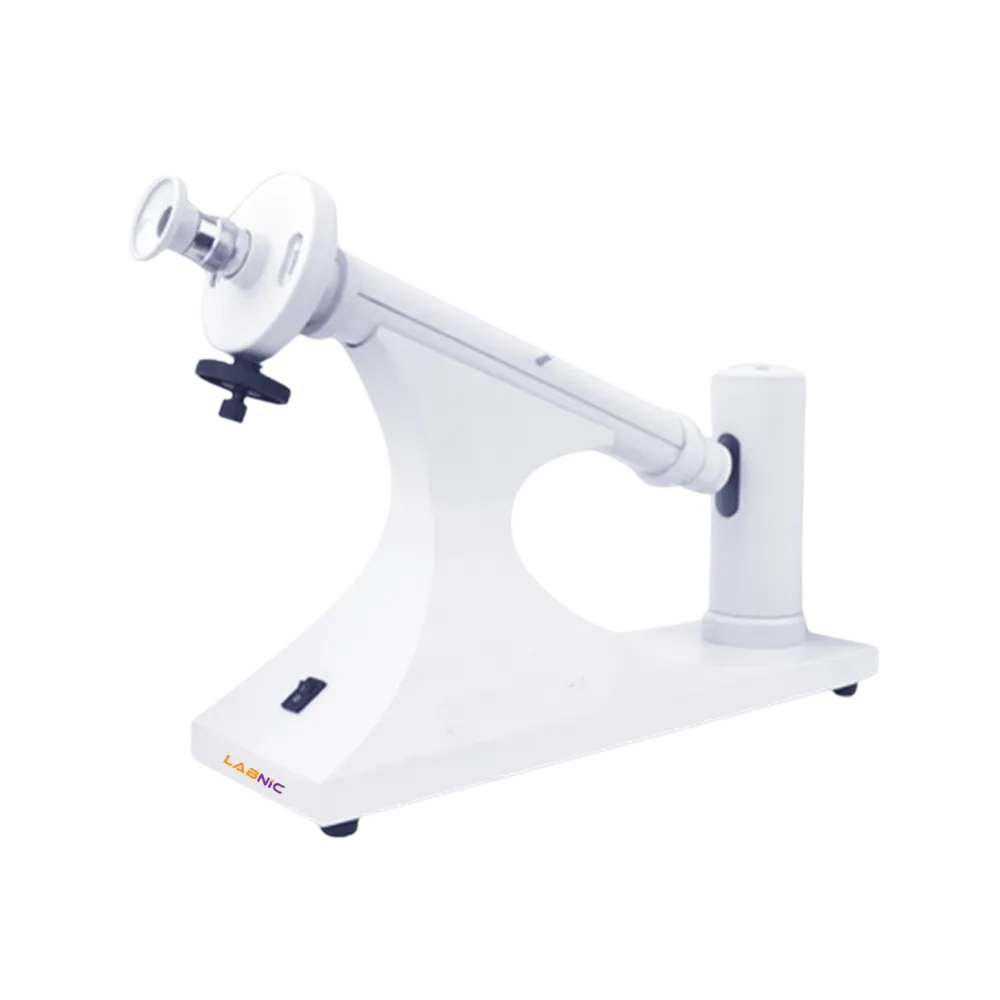

Manual Disc Polarimeter LBN-MP141 is a basic scientific instrument used to measure the optical rotation of optically active compound solutions with an accuracy of 0.05 degrees. It has a sample chamber tube with a length of up to 200 mm and sealing rings. A high performance 589 nm sodium lamp with a long service life is used as a light source. It is a simple manual polarimeter with a measuring range of -180 to +180° that requires little maintenance.
| Range | ±180° |
| Scale Value | 1° |
| Vernier | 0.05° |
| Magnifier | 3X |
| Light Source | Sodium lamp |
| Optical Wavelength | 589 nm |
| Sample Tube Length | Up to 200 mm |
| Power Requirement | AC 220V/50Hz |
| Dimension (L×W×H) | 500×135×330 mm |
| Weight | 5 Kg |
Sample chamber for measurement tubes up to 200mm length
Requires less maintenance due to 589 nm sodium lamp
Read and record the measured values from the vernier scale
Easy to calibrate
Easy to use manual polarimeter, accuracy 0.05 degrees
3X magnifier eyepiece
Low power utilization
Purity and concentration measurement
It is an ideal device for measuring the concentration of liquid samples in various fields of research and teaching, pharmaceutical and chemical industries, food and sugar industry and other industry applications.
Download Catalog for Manual Disc Polarimeter LBN-MP141
Download
