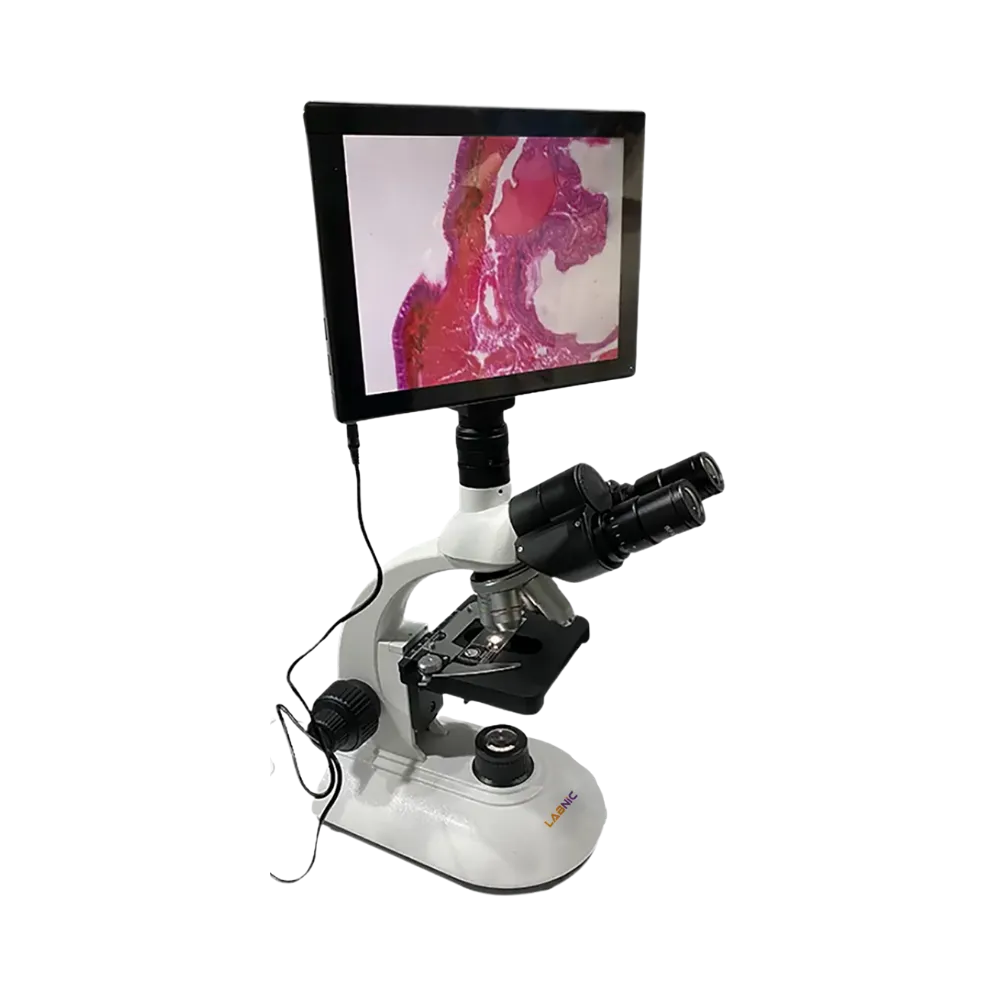

Biological Microscope LBN-BO143 offers precise and reliable observation in a controlled temperature range of 0 to 40C° avoiding high heat and humidity to prevent mildew or optical fog. It features a safe illumination system, which requires keeping flammable materials like alcohol and gasoline away from the light source to prevent fire hazards. Integrated with a 360° rotatable head, enabling flexible viewing and easy sharing among multiple users. Built-in aspherical LED with adjustable brightness, with a lifespan of over 100,000 hours, ensures clear and consistent results. Our biological microscope is ideal for observing cells, tissues, microorganisms, and other biological specimens in educational, clinical, and laboratory settings.
| Optical System | Achromatic Optical System with 4×10×40× and 100× Objectives |
|---|---|
| Standard Function | Microscopic Observation Only |
| Standard Magnification | 40×100× 400×1000 (using 10× Eyepiece) |
| Head Type | Monocular / Binocular / Trinocular (Butterfly Siedentop) |
| Head Inclination | 30° Inclined |
| Head Rotation | 360° Rotatable |
| Eyepiece Diameter | Standard 10× Eyepiece |
| Nosepiece Features | Quadplex Nosepiece, Smooth Rotation |
| Nosepiece Holes | 4 holes |
| Objective Type | Achromatic, Color-Corrected |
| Objective | 4×, 10×, 40×, 100× (Oil Immersion) |
| Working Stage Type | Mechanical Stage with X-Y Movement |
| Working Stage Size | 125× 115mm, Travel Range 35× 75mm |
| Focusing Features | Coaxial Coarse and Fine Knobs, Fine Division 2μm, Coarse Stroke 22mm |
| Focusing Type | Manual Focusing |
| Condenser Type | Abbe Condenser, N.A. 1.25, Adjustable Aperture, 12mm up/Down Range |
| Light Source Features | Aspherical Illumination, Uniform Light Distribution |
| Light Source Type | LED, 4000K to 5000K Color Temp, Greater than 100,000 hrs Lifespan |
| Power Supply Type | DC 5V to12V Input (≥1000mA), Adapter AC 100V to 240V, 50/60Hz |
Electromagnetic Compatibility
Safe Handling & Operation
Voltage Compatibility
Purpose-Specific Design
Fire Safety
Achromatic 4X/10X/40X/100X objective
WF10X eyepieces,
Quadplex nosepiece,
Butterfly trinocular head, Inclined 30°
Light distribution: 20:80
Stage: 125×115mm
Abbe N.A.1.25 condenser
3W LED illumination
Coarse and fine focusing knobs
Biological microscope LBN-BO143 is ideal for observing cells, tissues, microorganisms, and other biological specimens in educational, clinical, and laboratory settings.
