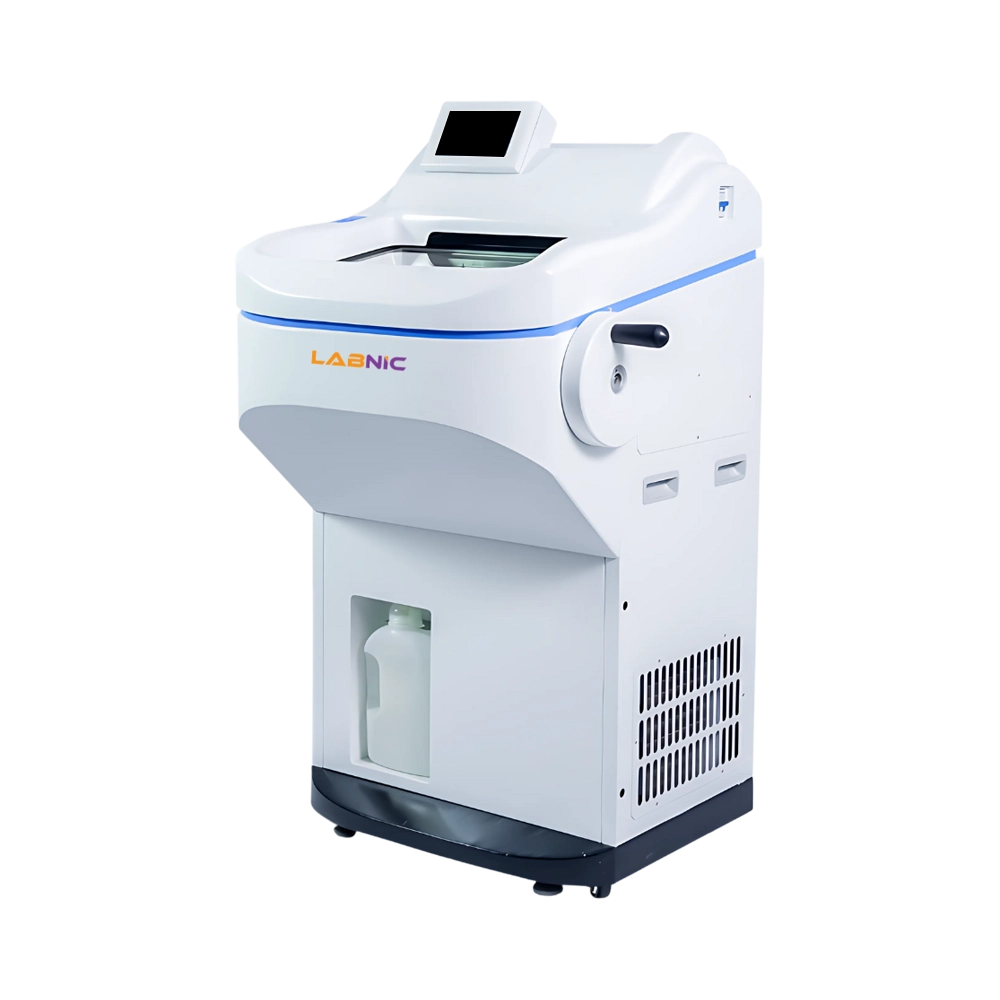

Cryostat Microtome LBN-CR121

Overview

Cryostat Microtome LBN-CR121 is a semi-automatic cryostat model with automatic and manual defrosting function. The unit has a light and smooth hand wheel with locking device on it. The microtome has a one time injected model cover, anti-fog heating glass design and a chromatic liquid crystal touch screen.

Specifications :

Slide Thickness Range	0 to 100 µm
Section Thickness Setting	0 to 10 µm, in 1 µm increment 10 to 20 µm, in 2 µm increment 20 to 50 µm, in 5 µm increment 50 to 100 µm, in 10 µm increment
Horizontal Specimen Stroke	25 mm
Vertical Specimen Stroke	60 mm
Specimen Clamp Max. Adjustable Angle	12 °
Specimen Fast Moving Speed	0.7 mm/s
Max Slice Section	55 × 55 mm
Voltage	AC 220 V, 50 Hz
Input Power	650 VA
Refrigerating Capacity	690 W
Dimensions (L × D × H)	780 × 700 × 1152 mm
Weight	180 Kg

Features :

• Each defrost time is 15 minutes by default
• Hibernation automatic or manual
• UV sterilization
• Semi-conductor refrigerant
• Slice number and thickness calculation
• Two movement speeds of specimen clamp
• Specimen clamp enables to adjust triaxially with a block in the centre to go back
• High precision guide rails make transmission smooth, durable and able to cut hard samples
• Extra large chamber with freezing shelf holds 20 specimen discs
• Equipped with a waste tray, instrument rack and blade holder
• Anti-fatigue cam lock ensures blades are clamped tight
• Blade clamp can be moved horizontally on the guide rail for safety and making full use of a blade
• Glass anti rolling plate to adjust angle and gap with pressure plate
• A pushing rod to pop the blades out

Standard Accessories :

Name	Quantity
Specimen Disc	10 pcs
Fuse (2A)	2 pcs
Fuse (15A)	2 pcs
Appliance Stand	1 pc
Power line	1 line
Hexagonal Wrench	1 set
Brush	1 pc
Handle	1 pc

Applications :

Cryostat Microtome is widely used in hospitals, medical schools, forensics, and animal and plant research units for pathological diagnosis, analysis, and research for rapid pathological section analysis.
