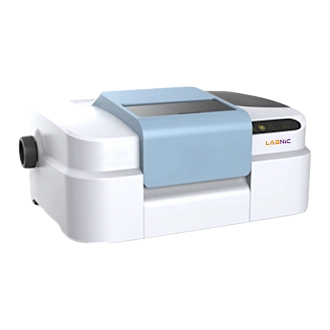

FTIR Spectrophotometer LBN-FTS110 Catalog

FTIR Spectrophotometer LBN-FTS110 delivers high spectral accuracy with a 30,000:1 signal-to-noise ratio for precise chemical analysis. It features a sealed Michelson interferometer, gold-coated reflector, and DLATGS detector for stable, reliable performance. Integrated software and a 1,800-compound library simplify spectral identification. Built with a durable cast aluminum optical bench, ensuring low maintenance and long-term use. Ideal for pharmaceutical, petrochemical, food, polymer, and academic applications

Spectral Range	7800 ~ 375 cm-1
Spectral Accuracy	0.01 cm-1
Signal Noise Ratio	30000:1 DLATGS, Resolution@4cm-1. Sample and Background Scan for 1 Min@2100cm-1
100%τ Line Tilt Range	Better than 0.5τ% 2200~1900cm -1
Resolution	1 cm-1 Wave
Spectral Repeatability	1 cm-1
Detector	High Resolution DLATGS Detector with Moisture-Proof Coating
Beamsplitter	KBr Coated with Ge
Light Source	Long-Life, Air-Cooled IR Light Source
Electronic System	A/D Converter of 24 Bits at 500MHz, USB 2.0
Power	110-220V AC, 50-60Hz
Dimension	450mm×350mm×235 mm
Weight	14Kg

Digital Humidity Display with Alarm

Tool-Free Desiccant Box Replacement

Push-Pull Type Sample Bin Design

Ceramic Light Source

Off-axis Mirror with SPDT Precision Cut

Steel Rail for Stability

Energy-Efficient Operation <30W

Intelligent Software with Calibration

Real-time Spectral Acquisition Monitoring

FTIR Spectrophotometer LBN-FTS110 features a high signal-to-noise ratio of 30,000:1 for precise spectral analysis. It is ideal for use in pharmaceuticals, materials science, petrochemicals, food safety, and academic research.
