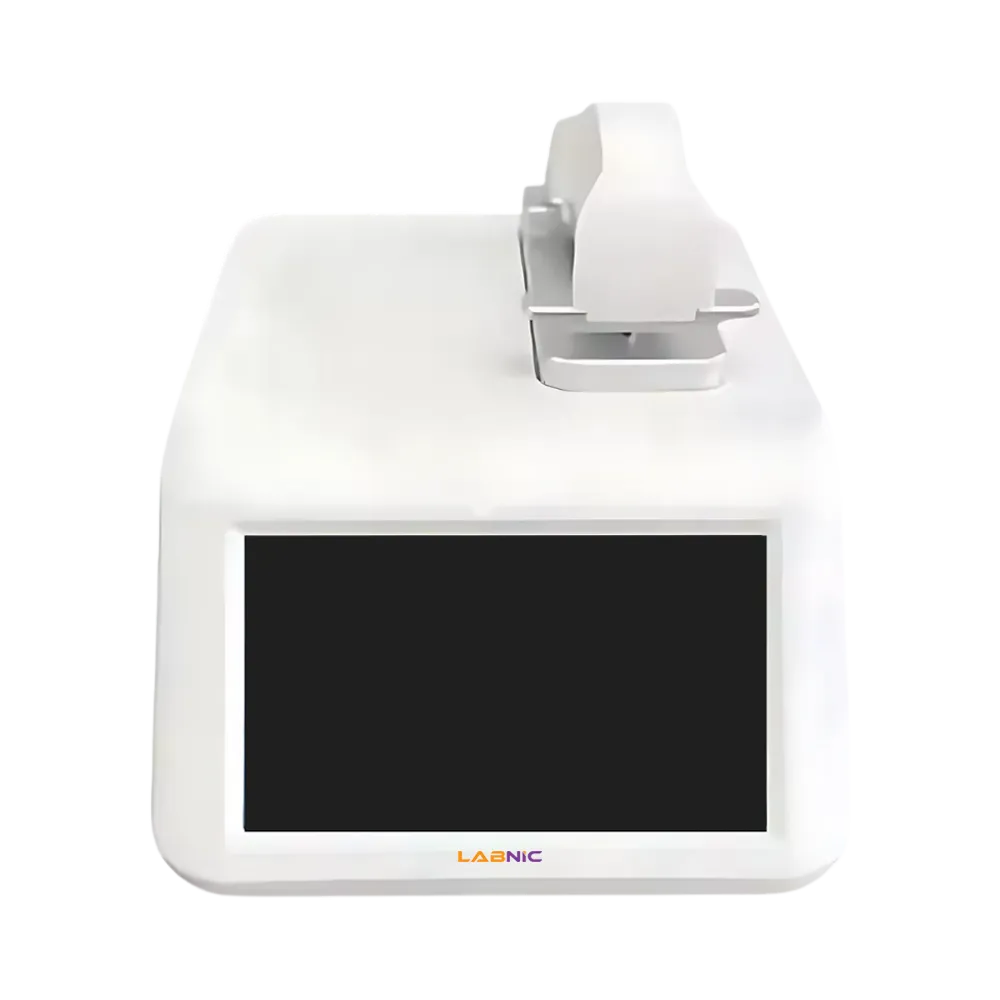

Micro Spectrophotometer LBN-MS162 is designed with a full spectrum wavelength range of 180 to 910nm. It requires only 0.5 to 2 µl of sample, allows recovery after testing, and delivers fast results within 2 to 6 seconds. Equipped with a long life xenon flash lamp and delivers high absorbance detection repeatability without preheating. Integrated 7-inch touch screen with multi touch and USB export enables efficient operation and data management. Our Micro Spectrophotometer is ideal for molecular biology, biotechnology, and clinical research applications.
| Optical Path | 0.2mm, 1.0mm, 1.2mm |
|---|---|
| Wavelength Scanning Range | 180 to 910nm |
| Wavelength Accuracy | ±1nm |
| Wavelength Resolution | ≤ 1.5 nm |
| Wavelength Precision | ±0.2nm |
| Sample Volume | 0.5 to 2.0μl |
| Absorbance Range | ±1nm |
| Absorbance Accuracy | ±0.2nm |
| Absorbance Precision | 0.002Abs |
| Nucleic Acid Range | dsDN:2 to 4500ng/μL<br>ssDNA:1.32 to 2970ng/μL<br>RNA:1.6 to 3600ng/μL |
| Protein Range | A280:0.04 to 750mg/ml<br>BSA: 0.06 to 1119mg/ml |
| Sample Pedestal Material | 304 Stainless Steel and Quartz Fiber |
| Light Source | Xenon Flash Lamp |
| Detector | 2048 -Element Linear CMOS Array |
| Detection Time | Less Than 6S |
| Data Export | USB |
| Power Consumption | 48W |
| Power Supply | 12V 4A |
| Dimension | 270 × 210 × 196 mm |
| Weight | 3.3 kg |
High Precision Optical System
Dedicated Intuitive APP Interface
Support JPG image export
Standalone Operation
Excel Compatible Data Export
High Accuracy
No Dilutations
High Sensitivity
Micro Spectrophotometer LBN-MS162 is used in laboratory, food industries, chemistry, microbiology, medicine research and development.
