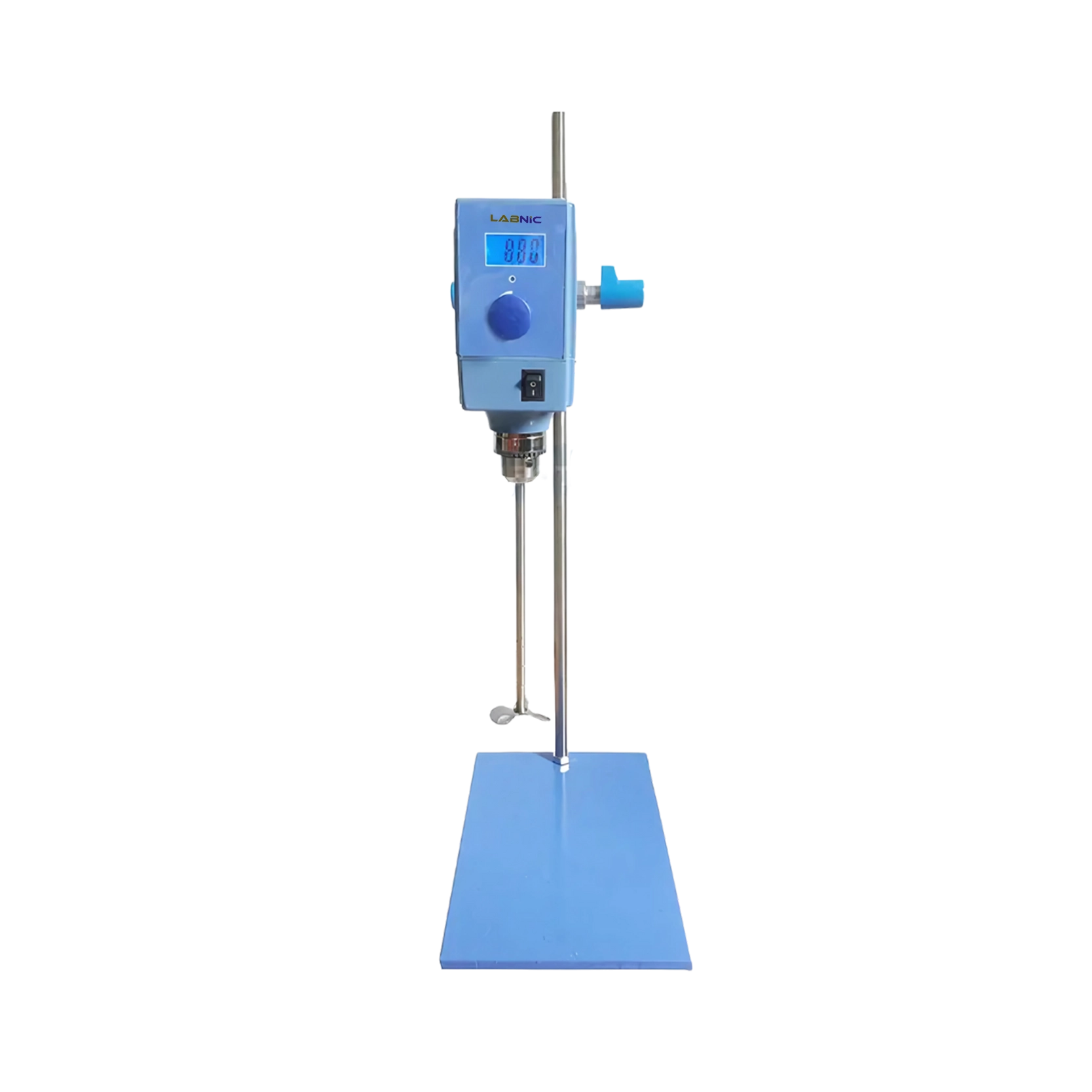

Overhead Stirrer LBN-OS173 ensures controlled and uniform stirring for various liquid formulations. Equipped with a brushless DC motor drive, it provides stable performance and long-term reliability. Incorporated with an MCO closed-loop control system, it delivers precise speed adjustments for consistent results. Built-in with a speed range of 60 to 1500 RPM, it maintains smooth and efficient operation. Our Overhead Stirrer with a 50-liter capacity is suitable mixer for mixing shampoo, shower gel, honey, paint, cosmetics, and cigarette oil.
| Stir Speed Range | 60 to 1500 RPM |
|---|---|
| Stirring Volume (Water) | 50 L |
| Motor Type | Brushless DC Motor |
| Motor Torque | 450m N.M |
| Stir Rod Length | 350 mm (Standard) |
| Stir Rod Material | SS 304 |
| Holder Length | 700 mm |
| Speed Control System | Closed Loop MCU Control |
| Digital Display | LCD |
| Chuck Clamping Range | Ø 1.5 to 13 |
| Motor Power | 100 W |
| Power Supply | 220 V / 110 Optional |
| Dimension (CM) | 69 × 39 × 20 |
| Gross Weight | 11.5 kg |
Long continuous working
Low noise operation
SS 304 stir rod material
700 mm Holder length
Highly reliable
Digital LCD display
Penetration type stirring shaft
Rotary encoder operation
Overhead Stirrer LBN-OS173 is suitable for chemical synthesis, pharmaceutical, physical and chemical analysis, petrochemical, cosmetics, healthcare, food, and biotechnology applications.
