Description:

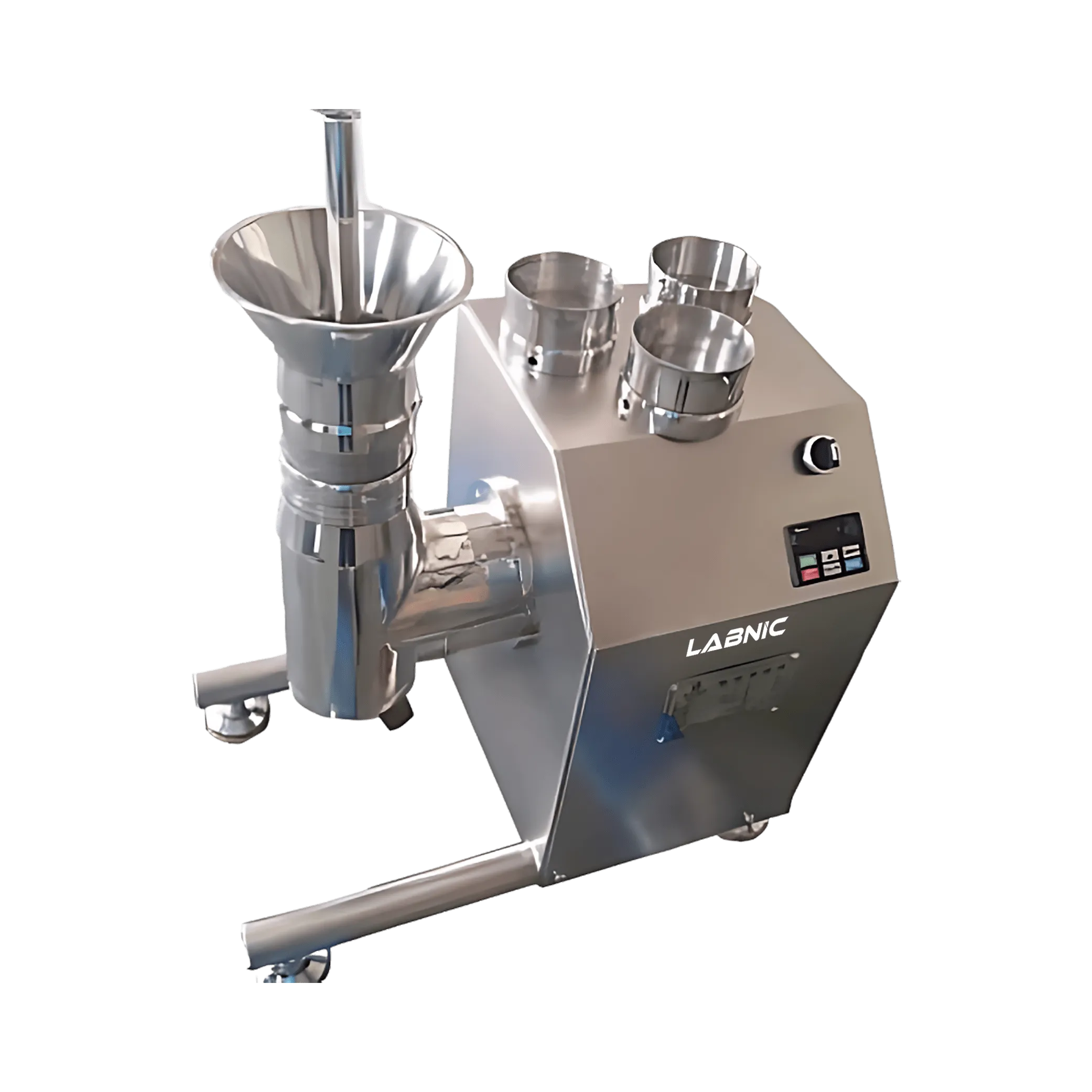

Rotary Granulator LBN-RG100 is a compact, high-performance wet granulation system designed for high-viscosity materials. It ensures high grain forming and shape rates with excellent granule appearance. Equipped with an automatic discharge mechanism, it prevents granule damage caused by manual unloading. Incorporated with 304 and 316L stainless steel construction, it offers superior hygiene and corrosion resistance. Our Rotary Granulator is ideal for pharmaceutical, chemical, agrochemical, food, and nutritional product applications.

Specifications :
Maximum Capacity 10 to 20 kg/Hour
Diameter of Basket 80 mm
Rotary Speed Inverter (VFD) Regulated
Sieve Hole 0.6 to 3mm
Control Options Touch Button
Contact Material SUS304 / SUS316L
Power Consumption 0.37 KW
Power Supply 220V/1P/50Hz
Dimensions 800 × 600 × 1000 mm
Net Weight 80 kg
Features :

Easy operation

Highly polished inner and outer surfaces

Dust-free operation

Easy cleaning

Scalable design

Manual, screw or belt feeding system

Standard Accessories :
  • Main Machine Support 1 set

  • Main Machine Coating 1 set

  • Materials Tank 1 set

  • Paddle 1 set

  • Driving Reducer and Motor 1 set

  • Bearing 1 Unit

  • Screen 1 Unit

  • Control System 1 Unit

  • Touch Button 1 set

  • Time Relay 1 set

  • Other Low Voltage Electric 1 set

Applications :

Rotary Granulator LBN-RG100 is ideal for pharmaceutical, chemical, agrochemical, food, and nutritional product applications.
