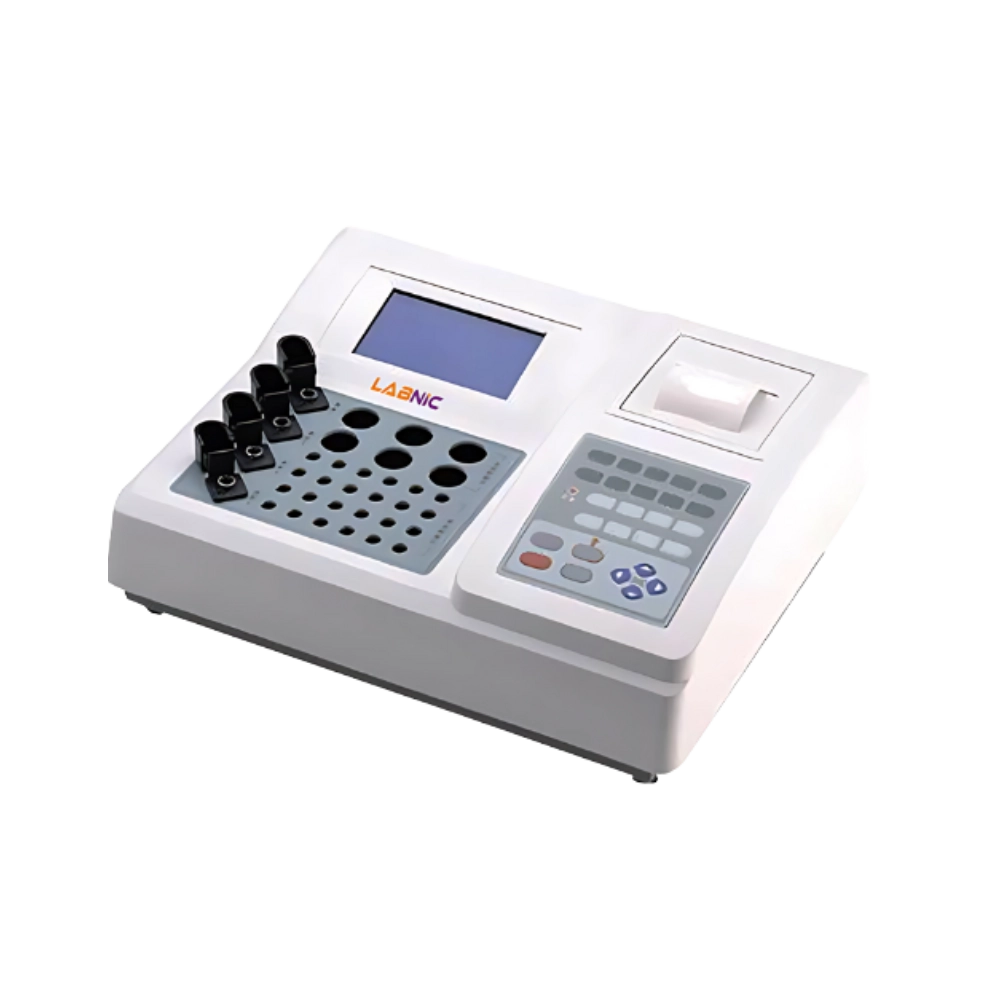

Semi-Auto Coagulation Analyzer LBN-CA131

Overview

Semi-Auto Coagulation Analyzer LBN-CA131 is a simple semi-automatic analyzer with two independent working channels at the same time. The advanced scattered light principle and percentage analysis ensure accurate results while consuming less than 20µL of reagent. To ensure precision results, it has an internal thermal sensitive printer, an LCD screen that displays test parameters, and an advanced optical light system. The unit operates between 15°C to 30°C, has a 470 nm test wavelength range, and can store up to 10,000 test results.

Specifications :

Testing Channel	2 channels
Sample Positions	16 positions
Reagent Positions	4 positions
Test Wavelength	470 nm
Sample Volume	20uL-40ul
Reagent Volume	20uL-40ul
Temperature Range	15℃ - 30℃
Temperature Control Precision	37 ± 0.3℃
Repeatability	Cv < 2%
Coincidence Indicator	≤3%
Memory Storage	Up to 10,000 results
Notation of Results	S, %, PTR, INR, g/L
Display	240 × 128 LCD
Dimensions (L × W × H)	395 × 320 × 135 mm
Weight	6 Kg

Features :

• Low reagent consumption less than 20uL, open reagent
• Special testing cup location system, adding sample bracket
• Optional PT Derived method for testing fibrinogen, decease the dosage of reagent
• Advanced optical light matching system ensure precision result
• Internal thermal-sensitive printer
• Environmental user-friendly system with limited accessories
• Light protection cap prevents stray light and dust
• Easy user interface and less maintenance

Applications :

Coagulation Analyzers are suitable for detection of blood coagulation factor in medical care, hospitals, scientific research, educational institutions and pathology labs etc.
