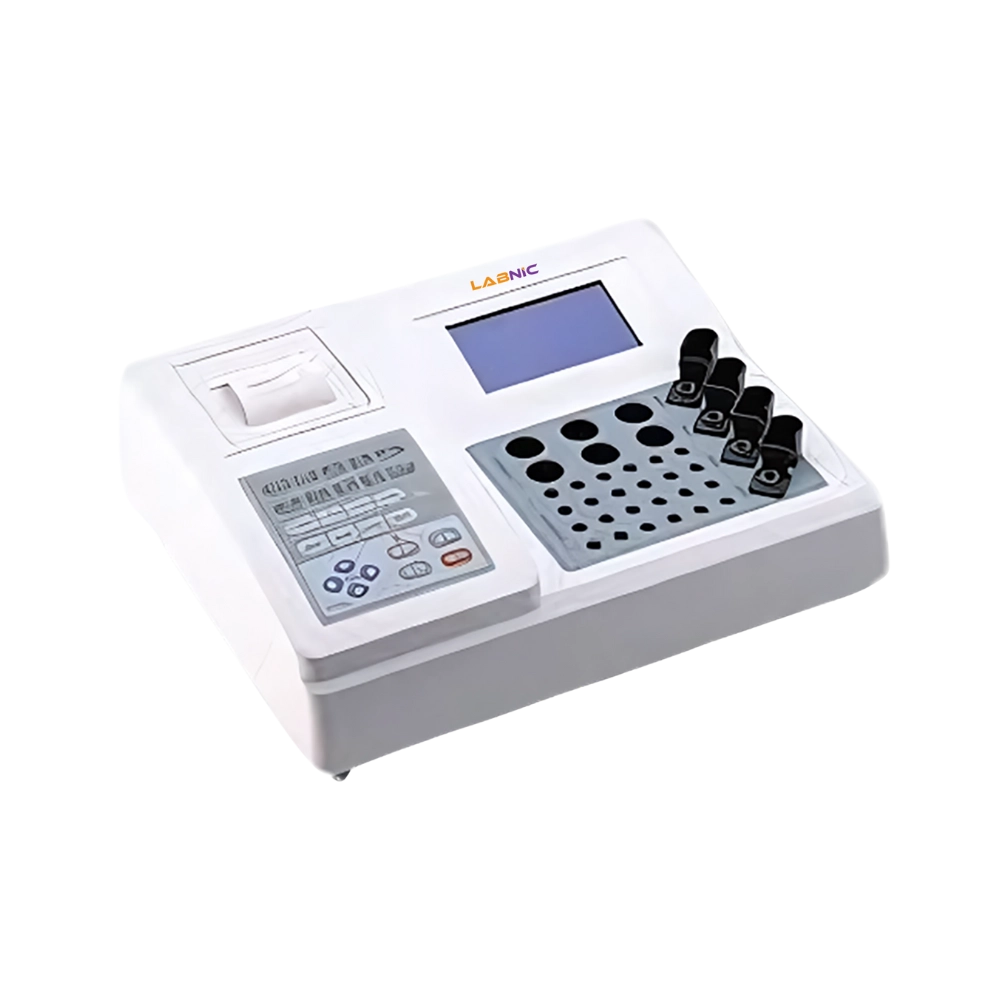

Semi Auto Coagulation Analyzer LBN-CA132 is equipped with four independent testing channels, enabling simultaneous multi-parameter analysis. Operates within controlled temperature range of 15°C to 30°C. Integrated with 470 nm wavelength optical detection for consistent accuracy in every result. Our Semi Auto Coagulation Analyzer have built-in storage capacity supporting data retention of thousands of samples.
| Testing Channel | 4 channels |
|---|---|
| Sample Positions | 24 positions |
| Reagent Positions | 6 positions |
| Test Wavelength | 470 nm |
| Sample Volume | 20uL to 40uL |
| Reagent Volume | 20uL to 40uL |
| Temperature Range | 15°C to 30°C |
| Temperature Control Precision | 37 ± 0.3°C |
| Repeatability | Cv < 2% |
| Coincidence Indicator | ≤3% |
| Memory Storage | Up to 10,000 results |
| Notation of Results | S, %, PTR, INR, g/L |
| Display | 240 × 128 LCD |
| Dimensions | 395 × 320 × 135 mm |
| Weight | 7 Kg |
Four Independent Testing Channels
High Sensitivity Optical Detection
Internal Thermal Printer
User Friendly Interface
Extensive Data Storage
Compact Design
Semi Auto Coagulation Analyzer LBN-CA132 is extensively utilized in clinical laboratories, hospitals, and diagnostic centers for routine coagulation testing, including PT, APTT, and TT assays. Its high-throughput capability and precise measurements make it suitable for both routine screenings and specialized coagulation studies.
