Overview

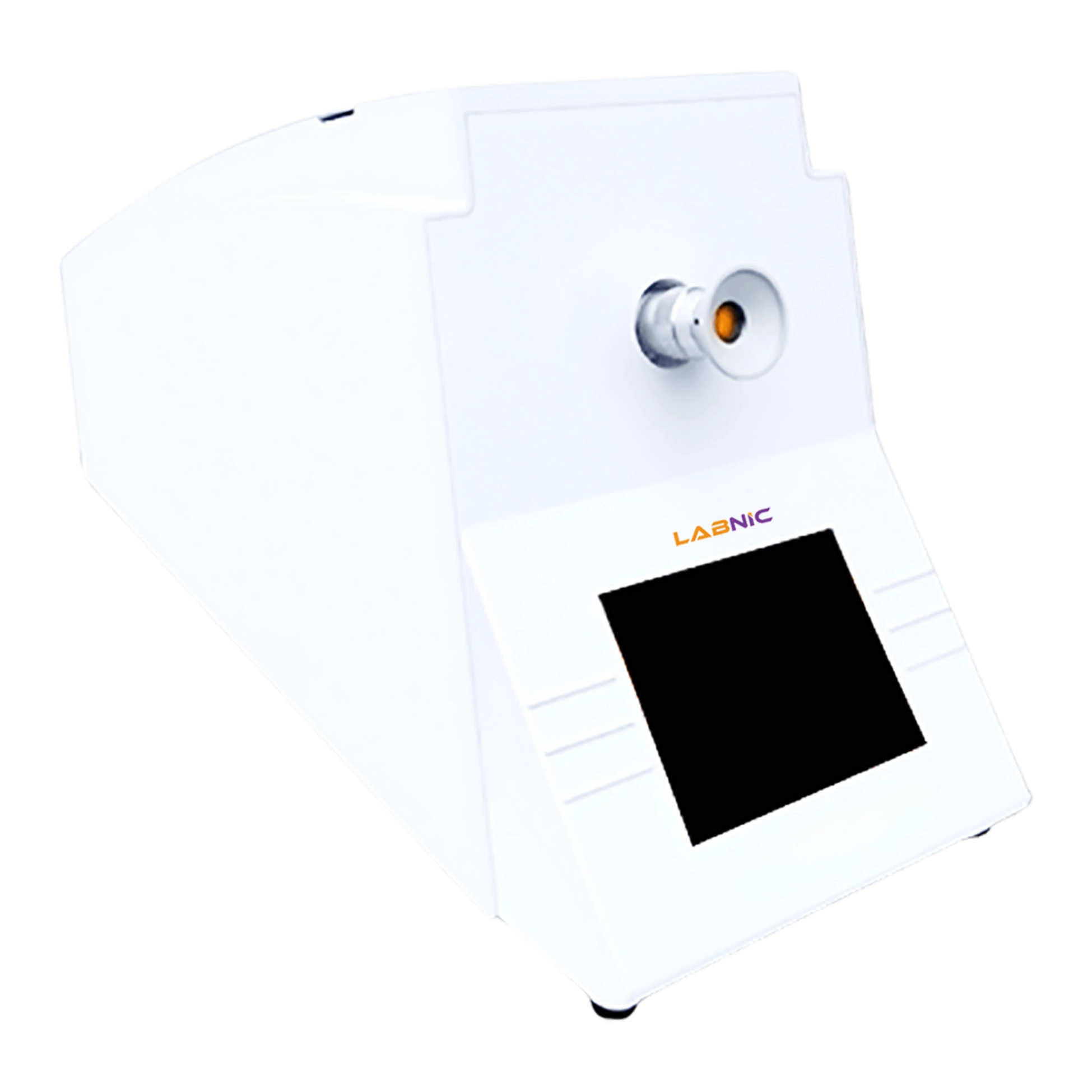

Semi-Automatic Polarimeter LBN-SP141 is a multi-parameter device with 3 point calibration, the instrument is suitable for measuring the optical rotation, specific rotation, concentration and sugar content of optically active compound solutions. It is equipped with a 5.6 inch TFT touch screen and uses a LED light source with 200-hour usage range. It uses a sample chamber tube of up to 200 mm length with a measuring range of 90° to 130°Z.

Specifications :
Measuring Range ± 90 ° / ± 130 ° Z
Display Resolution 0.005°
Measurement Accuracy ± 0.02 ° / ± 0.05 ° Z
Calibration Point 1 to 3 points
Light Source LED and Interference Filter
Wavelength 589.4 nm
Applicable Tube Length 50/100/200 mm
Data Storage 100 data sets
Monitor 5.6-inch TFT touch screen
Power Type AC220V/50Hz
Dimensions (L×W×H) 550×300×220 mm
Weight 7.5 kg
Features :
  • Selectable tube length or manually enter a desired value
  • Multi-parameter semi-automatic polarimeter
  • 5.6 inch TFT touch screen display
  • LED provides a long life source
  • Zero point calibration adjusts and eliminates the measurement error
  • Built-in temperature sensor automatically measures and compensates the readings to specific rotation value
  • Expanded memory storage and recalls up to 100 date sets
  • Reset function automatically resumes all settings back to the factory defaults
  • On-screen operation guide detailedly shows the polarimeter uses
Applications :

It is widely used in sugar industry, pharmaceutical industry, chemical and food industry and also used for detection of starch agriculture products and amino acids.
