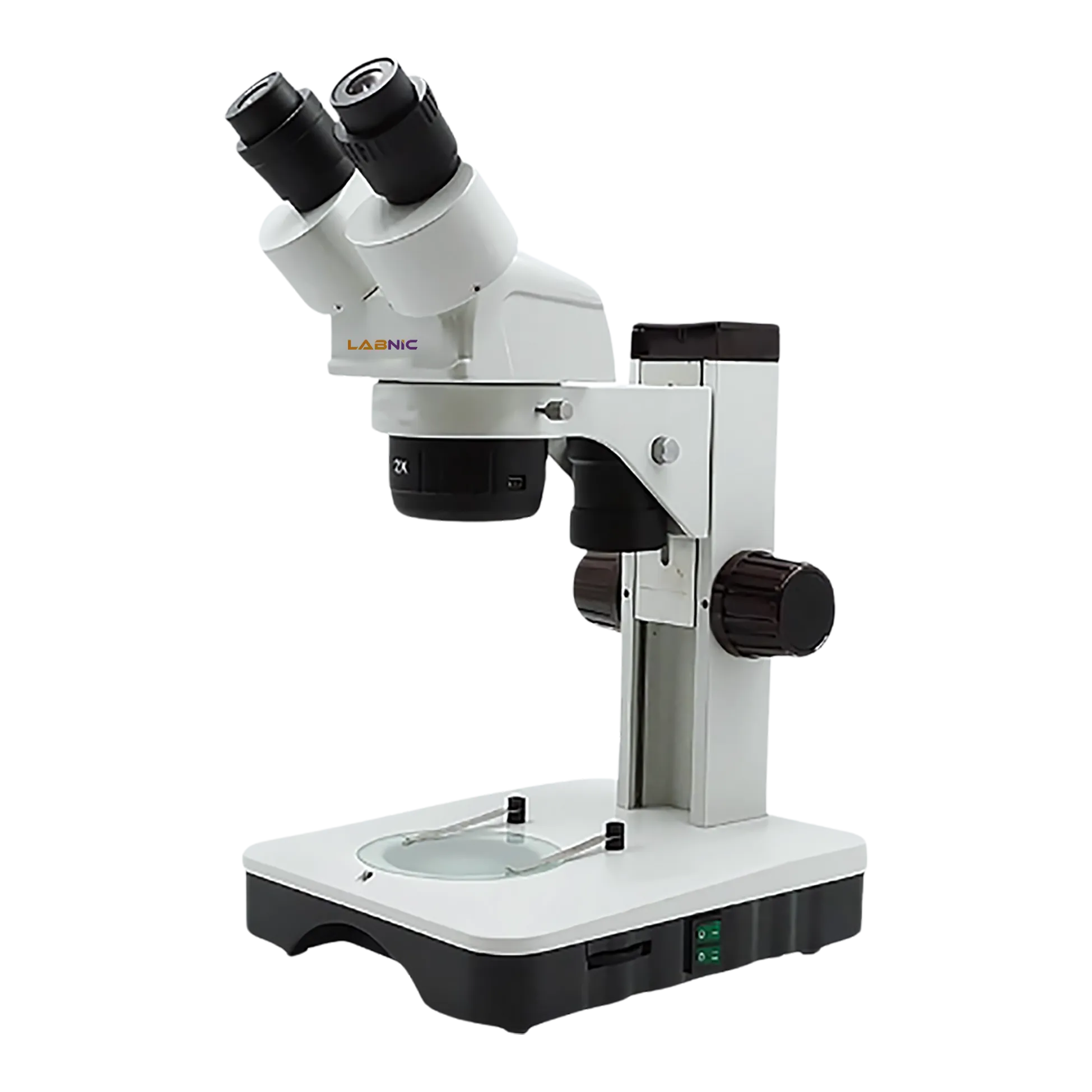

Stereo Microscope LBN-SM 125 has a Greenough optical system and a Siedentopf binocular head with a 45° inclination. It features an adjustable right tube with an eyepiece of WF10x/18mm magnification and a 30mm diameter. The microscope is equipped with a stereo objective type, a frosted glass plate of 95 mm in diameter, and an LED as a light source. With a focusing range of 100 mm, it focuses on coarse specimens only.
| Optical System | Greenough |
|---|---|
| Standard Magnification | 20x, 40x |
| Head Type | Siedentopf Binocular |
| Inclination | 45° |
| Rotation | Head Rotate 360° |
| Interpupillary | 55-75 mm |
| Diopter | Right Tube Adjustable |
| Eyepiece Diameter | 30 mm |
| Eyepiece | WF10x/18mm, 2 Pcs |
| Objective | Stereo |
| Magnification | 2x, 4x |
| Focusing Range | 100 mm |
| Light Source | LED |
| Reflect Light | Coaxial LED |
| Power Supply Type | AC110V-240V |
| Working Stage Size | 95 mm |
| Stage | Frosted Glass Stage |
| Distance | 100 mm |
| Stereo Stand Type | Track Stand |
| Weight | 5 Kg |
| Dimensions (L × D × H) | 340 × 410 × 250 mm |
It consists of the Greenough optical system
Siedentopf binocular head with 45° inclination
Adjustable right tube head diopter
Stereo objective type
Focuses on coarse specimen only
LED illumination as light source, coaxial LED reflectors
Transmit and reflect are the light source features
Frosted glass working stage
Stereo Microscope is used in the fields of agriculture, metallurgy, zoology, biology, and chemistry in medical institutes, laboratories, scientific research institutes, and health clinics for the research analysis of samples and materials.
