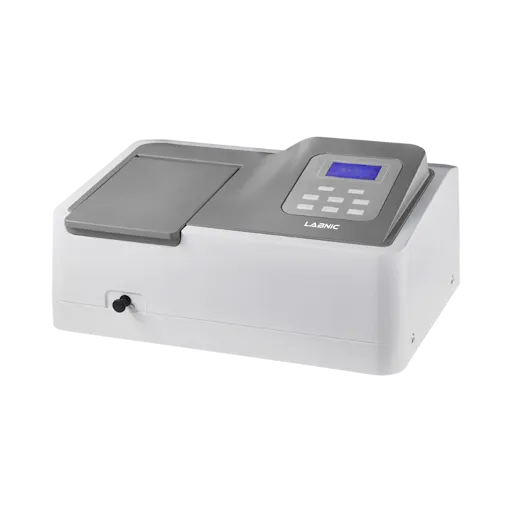

UV-Visible Spectrophotometer LBN-UV131 is a dependable and simple-to-use device with improved usability and performance. For increased longevity and flexibility, it includes automated calibration, a spill-resistant sample compartment, and a small foot print. The single beam instrument has high precision within the wavelength range of 200-1000 nm and an adjustable bandwidth of 4 nm, making it ideal for samples with sharp absorption peaks. The switching of tungsten and deuterium lamps is automatic within a selectable wavelength range, and the device includes a four-position cell holder with 10 mm pathlength cuvettes.
Optical System | Single Beam |
Spectral Bandwidth | 4.0 nm |
Wavelength Range | 200-1000 nm |
Wavelength Accuracy | ±2 nm |
Wavelength Repeatability | ≤1 nm |
Photometric Range | 0.3-3.0A, 0-200%T |
Photometric Accuracy | ±0.003A@0.5A, ±0.006A@1.0A ±0.5%T@100%T |
Photometric Repeatability | ≤0.0015A@0.5A, ≤0.003A@1.0A, ≤0.25%T@100%T |
Stability | ≤0.002A/h @ 500 nm (after preheat 2 hours) |
Light Source | Tungsten lamp & Deuterium lamp |
Stray Light | ≤0.2%T |
Sample Compartment | 4-position,10mm pathlength cuvette |
Display | LCD |
Output | USB Port & Parallel Port (Printer) |
Power | 120 W |
Power Supply | 110/220VAC, 50/60Hz |
Dimension (L × W × H) | 490 × 360 × 210 mm |
Weight | 14 Kg |
UV-Visible Spectrophotometers are widely used in clinical examination, medical industry, biochemistry, petrochemical, environmental protection, quality control and research institutes etc.
