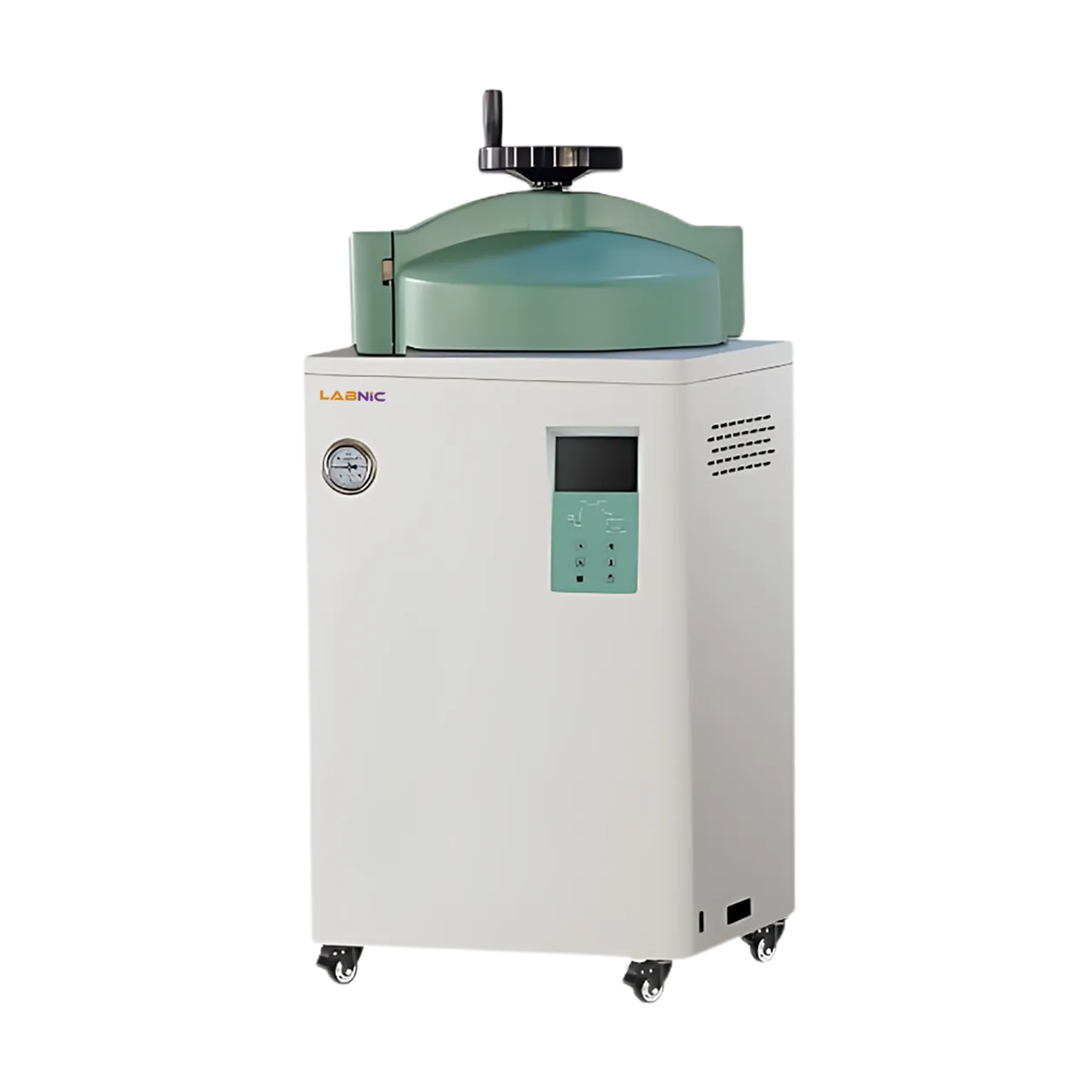

Vertical Steam Autoclave LBN-VA156 Catalog

Vertical Steam Autoclave LBN-VA156 is designed to operate high temperature range of 144℃ and with pressure of 0.3 MPa. It features water level protection, overheat protection, and over-pressure protection for the device. Integrated with thermal insulation material to prevent burns with a door interlock device for enhanced safety. Equipped with a display that shows sterilization temperature, time, F0 value in real time. Our Vertical Steam Autoclave is suitable for biological research units at all levels and is ideal for rubber, liquids, glassware, culture media, waste, and other items.

Capacity	100L
Chamber Size	Ø400×840 mm
Working Temperature	137℃
Design Temperature	144℃
Temperature Accuracy	±0.1℃
Working Pressure	0.24 MPa
Design Pressure	0.3 MPa
Sterilize Temperature	105 to 136℃
Thermal Uniformity	Less than ±0.5℃
Chamber Material	SUS304
Power Consumption	3.5kW
Power Supply	220V/50Hz
Dimension	520×540×1185 mm
Net Weight	80kg

Automatic Heat-Up and Sterilize Processes

Pressure Switch Controls

Horizontal Sliding Door

Self-Expand Seal

Built-In Steam Generator

Filter Cartridge Pore Size 0.22µm

Pre-Vacuum, Gravity, Pulse Cycles

Touch Screen (HMI) Control

 Low Water Cut-Off Function

Vertical Steam Autoclave LBN-VA156 system provides a high temperature range of 144℃ and is ideal for biological research units at all levels, such as rubber, liquids, glassware, culture media, waste and other items.
