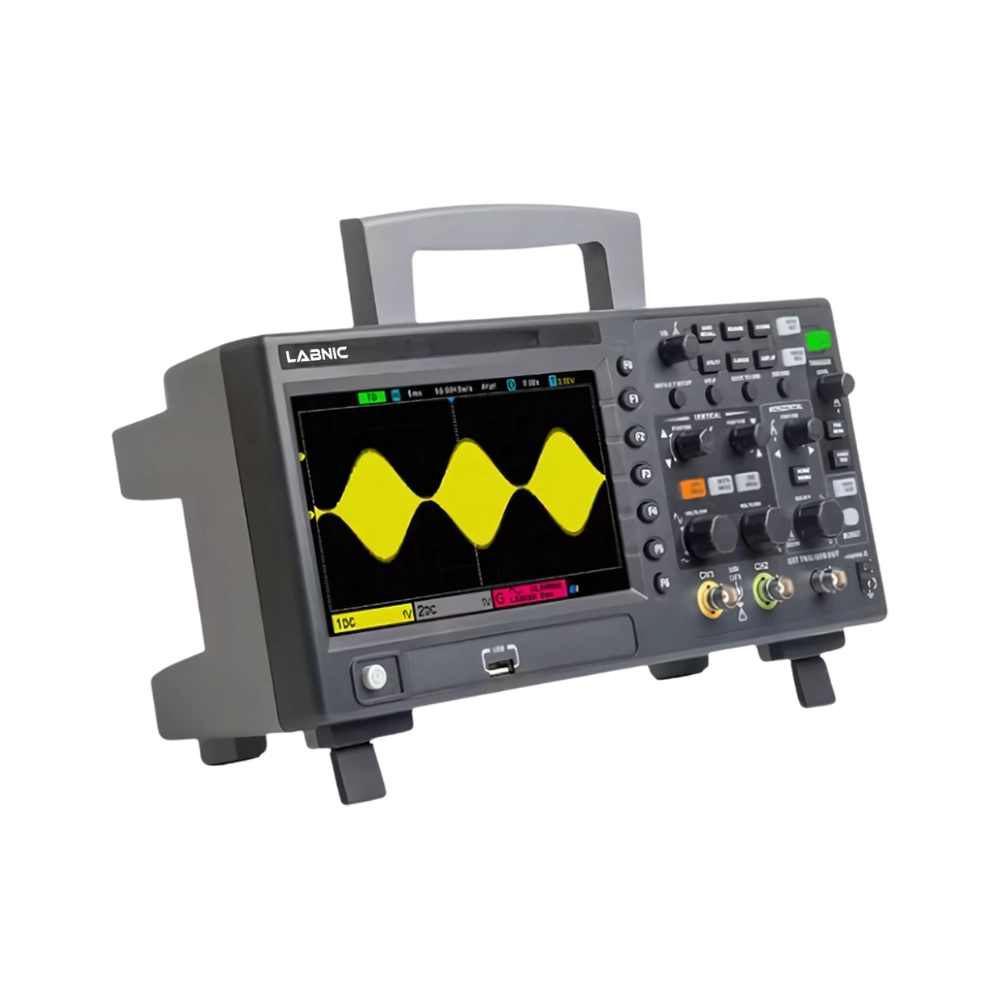

Digital Oscilloscope LBN-CO112 delivers ultra-low noise performance with high 12-bit resolution for precise signal analysis.It ensures a wide 100 MHz analog bandwidth with fast rise time ≤3.5 ns for reliable waveform capture.Equipped with a real-time sampling rate up to 1.25 GSa/s and 25 Mpts memory depth, it provides detailed waveform recording.Integrated with a 7-inch capacitive multi-touch screen, digital phosphor display, and intuitive Flex Knob for smooth operation.Our Digital Oscilloscope LBN-CO112 is widely used in electronics research, circuit debugging, education, industrial testing, and R&D applications.
| Channels | 4 Analog + EXT Trigger |
| Bandwidth | 100 MHz |
| Sampling Rate |
Up to 1.25 GSa/s (single-channel) 625 MSa/s (dual-channel) 312.5 MSa/s (full-channel) |
| Memory Depth |
Up to 25 Mpts (single-channel) 10 Mpts (dual-channel) 5 Mpts (full-channel) |
| 4M Dual Channel | Yes |
| Vertical Range | 500 μV/div to 10 V/div |
| Vertical Resolution | 12 bits |
| Probe Attenuation Factor | 1X, 10X (auto detected) |
| Input Coupling | DC, AC, GND |
| Input Impedance | 1 MΩ ± 1% |
| Max Input Voltage | 400 V (DC + AC Peak, 1 MΩ) 5 Vrms (50 Ω) |
| Trigger Types | Edge, Pulse, Video, Slope, Alternative, Pattern, Timeout |
| Protocol Decoding | Optional: I²C, SPI, RS232/UART, CAN, LIN |
| Math & FFT Functions | Add, Subtract, Multiply, Divide, FFT, Filter |
| Auto Measurements | > 30 automatic measurements |
| Digital Voltmeter | Supported |
| Data Storage | 500,000 frames (real-time recording) |
| Remote Control | USB, LAN, HDMI interfaces |
| Display Type | 7-inch capacitive multi-touch LCD (1024×600) |
| Display Persistence Time | Real-time 256-level intensity grading |
| Probe Compensation Output | 1 kHz square wave |
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | -20 °C to +70 °C |
| Humidity | ≤ 85% RH (non-condensing) |
| Altitude Operating/Non-op | Up to 3,000 m operating / 15,000 m non-operating |
| Vibration/Mechanical Shock | Meets MIL-STD-810G |
| Power Consumption | < 45 W |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Dimensions | Approx. 323 × 151 × 135 mm |
| Weight | Approx. 2.6 kg |
Digital Oscilloscope LBN-CO112 is widely used in electronics design, circuit debugging, education, R&D, and industrial testing and ideal for signal integrity analysis, waveform monitoring, troubleshooting, and product development.
Digital Oscilloscope LBN-CO112 is widely used in electronics design, circuit debugging, education, R&D, and industrial testing and ideal for signal integrity analysis, waveform monitoring, troubleshooting, and product development.
Most Frequently Asked Questions
1. What are Digital Oscilloscopes used for?
Ans. Digital Oscilloscopes are used for high-resolution waveform analysis and signal testing in electronic and electrical applications.
2. How do Digital Oscilloscopes support precise signal measurement?
Ans. Digital Oscilloscopes offer real-time sampling and multiple input channels to capture and analyze signals accurately.
3. What analysis features are available in Digital Oscilloscopes?
Ans. Digital Oscilloscopes include advanced functions such as mathematical analysis and FFT for detailed signal evaluation.
4. How do Digital Oscilloscopes simplify diagnostics and visualization?
Ans. Digital Oscilloscopes are equipped with user-friendly software that enables clear signal visualization and efficient diagnostics.
5. What connectivity options are supported by Digital Oscilloscopes?
Ans. Digital Oscilloscopes support USB or PC connectivity for data transfer, storage, and extended analysis.
6. Where are Digital Oscilloscopes commonly used?
Ans. Digital Oscilloscopes are commonly used in laboratories, classrooms, research facilities, and field-testing environments.
