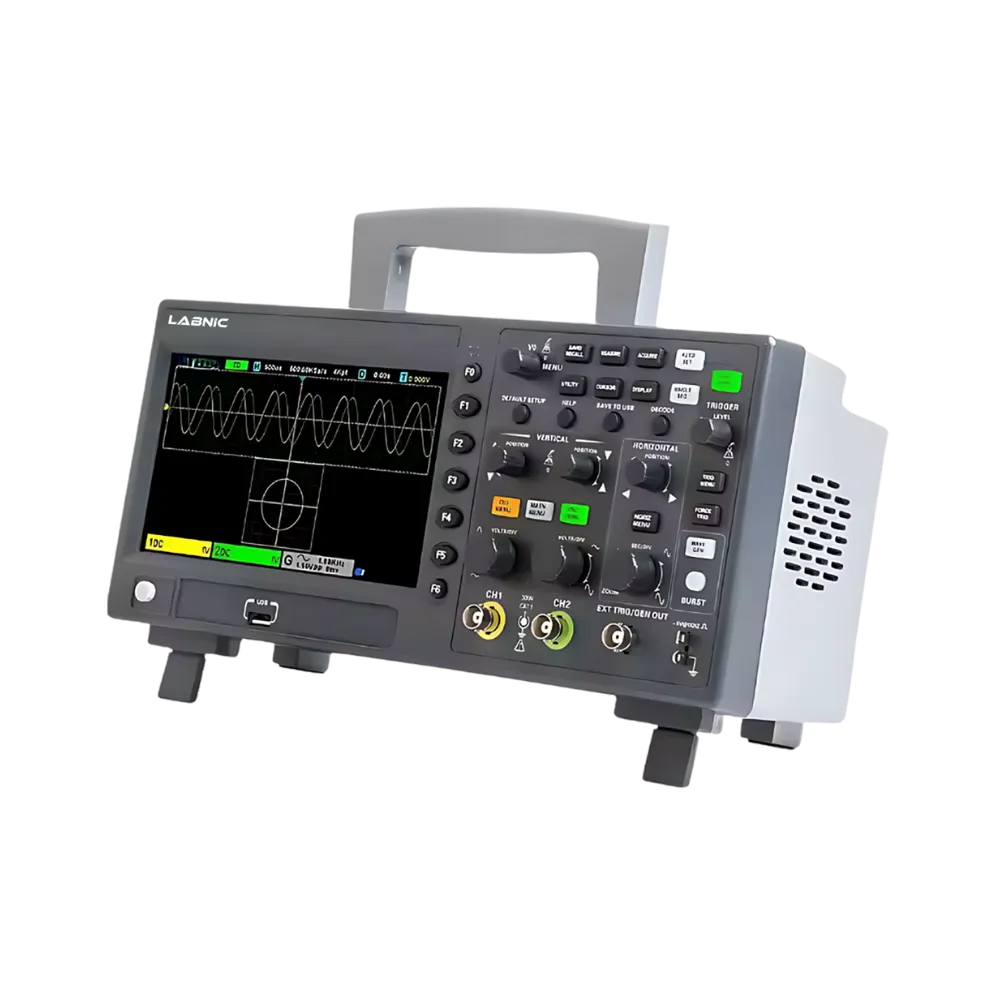

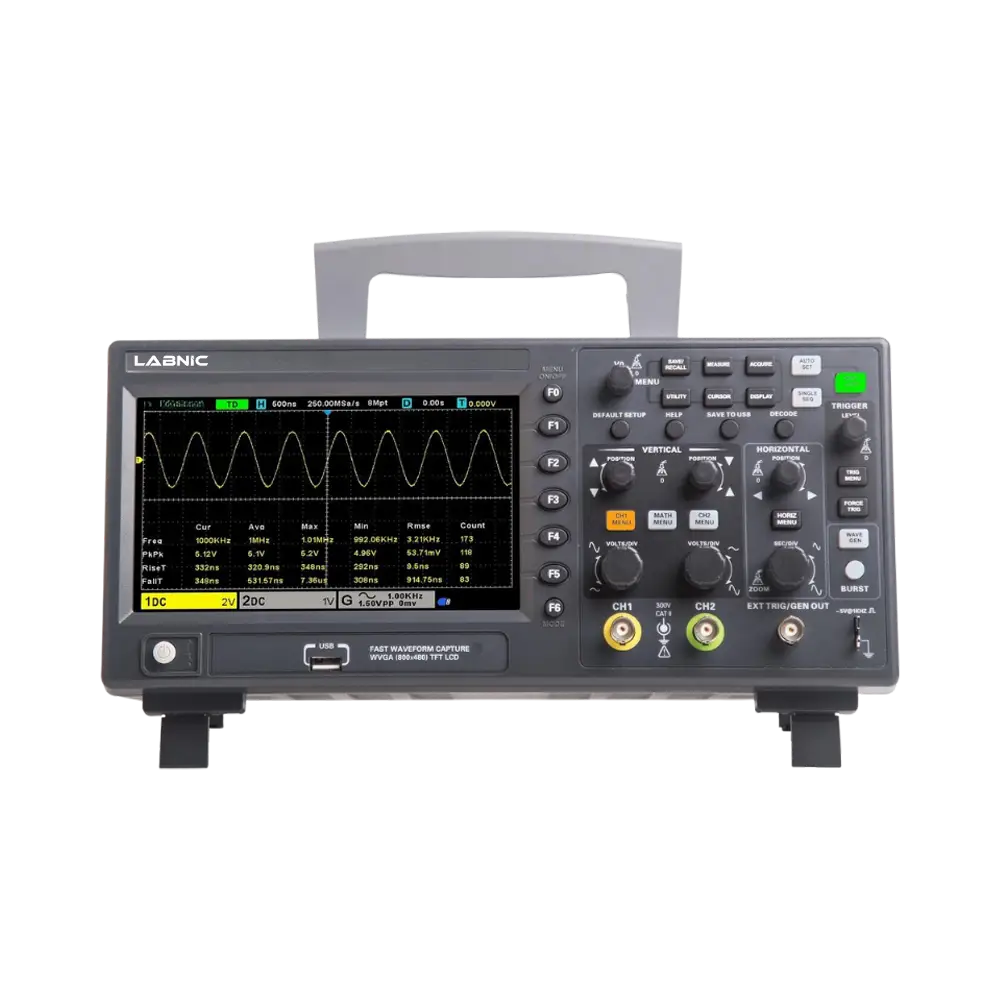

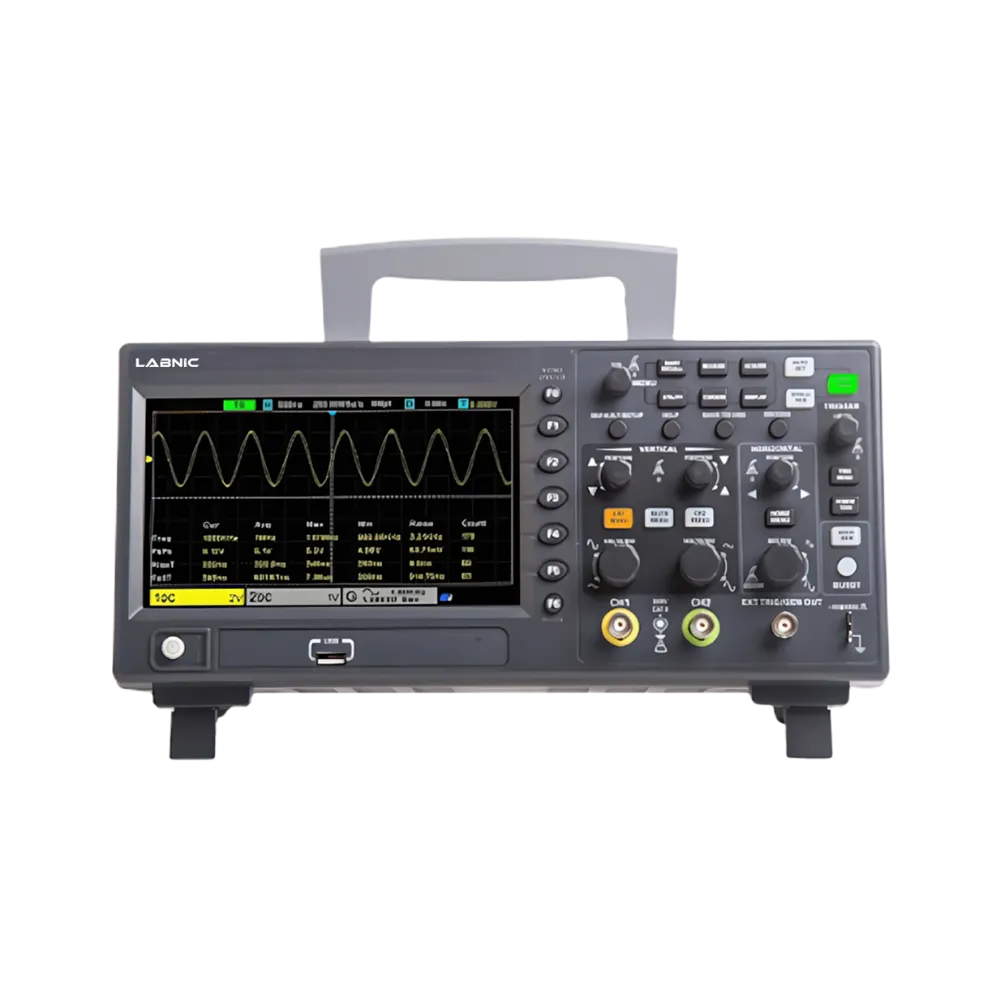

2 Channels Oscilloscope LBN-CO110 delivers accurate signal analysis with 150 MHz bandwidth, 1 GSa/s sampling rate, and 8 Mpts memory depth. It supports dual-channel operation for reliable waveform capture in electronic testing. Equipped with advanced trigger modes, 32 automated measurements, and serial bus decoding for common communication protocols. Integrated frequency counter, digital voltmeter, FFT analysis, and a built-in 25 MHz waveform generator for versatile signal evaluation. Our Digital Oscilloscope is ideal for electronics design, R&D laboratories, education, troubleshooting, and industrial testing.
| Bandwidth | 150 MHz |
| Channels | 2 |
| Sampling Rate | 1 GSa/s (single channel), 500 MSa/s (all channels) |
| Memory Depth | 8 Mpts (single channel), 4 Mpts (all channels) |
| Rise Time | ≤ 2.4 ns |
| Vertical Resolution | 8 bit |
| Vertical Sensitivity | 500 µV/div – 10 V/div (1 MΩ) |
| Time Base Range | 2 ns/div – 1 ks/div |
| Bandwidth Limit | 20 MHz (selectable) |
| Trigger Types | Edge, Pulse, Video, Slope, Timeout, Window, Pattern, Interval, Under Amp |
| Serial Bus Decode | UART, IIC, SPI, CAN, LIN |
| Arithmetic Functions | Add, Subtract, Multiply, Divide, FFT |
| Automated Measurements | 32 Measurements with Statistics |
| Analysis Functions | Frequency Counter, Digital Voltmeter |
| Acquisition Modes | Normal, Average, Peak Detect, High Resolution |
| Input Coupling | DC / AC / GND |
| Input Impedance | 1 MΩ ±1% |
| Waveform Generator | 25 MHz Max Output (Sine, Square, Ramp, Exp, Noise, DC, Arbitrary) |
| Waveform Generator Resolution | 12 bit |
| Waveform Generator Sampling Rate | 200 MSa/s |
| Connectivity | USB Host, USB Device, External Trigger |
| Display | 7-inch 64K Color TFT LCD |
2 Channels Oscilloscope LBN-CO110 is ideal for electronics design, research and development laboratories, educational training, troubleshooting, embedded systems testing, and industrial electronics applications.
2 Channels Oscilloscope LBN-CO110 is ideal for electronics design, research and development laboratories, educational training, troubleshooting, embedded systems testing, and industrial electronics applications.
Most Frequently Asked Questions
1. What are Digital Oscilloscopes used for?
Ans. Digital Oscilloscopes are used for high-resolution waveform analysis and signal testing in electronic and electrical applications.
2. How do Digital Oscilloscopes support precise signal measurement?
Ans. Digital Oscilloscopes offer real-time sampling and multiple input channels to capture and analyze signals accurately.
3. What analysis features are available in Digital Oscilloscopes?
Ans. Digital Oscilloscopes include advanced functions such as mathematical analysis and FFT for detailed signal evaluation.
4. How do Digital Oscilloscopes simplify diagnostics and visualization?
Ans. Digital Oscilloscopes are equipped with user-friendly software that enables clear signal visualization and efficient diagnostics.
5. What connectivity options are supported by Digital Oscilloscopes?
Ans. Digital Oscilloscopes support USB or PC connectivity for data transfer, storage, and extended analysis.
6. Where are Digital Oscilloscopes commonly used?
Ans. Digital Oscilloscopes are commonly used in laboratories, classrooms, research facilities, and field-testing environments.
2 Channels Oscilloscope LBN-CO110 delivers accurate signal analysis with 150 MHz bandwidth, 1 GSa/s sampling rate, and 8 Mpts memory depth. It supports dual-channel operation for reliable waveform capture in electronic testing. Equipped with advanced trigger modes, 32 automated measurements, and serial bus decoding for common communication protocols. Integrated frequency counter, digital voltmeter, FFT analysis, and a built-in 25 MHz waveform generator for versatile signal evaluation. Our Digital Oscilloscope is ideal for electronics design, R&D laboratories, education, troubleshooting, and industrial testing.
