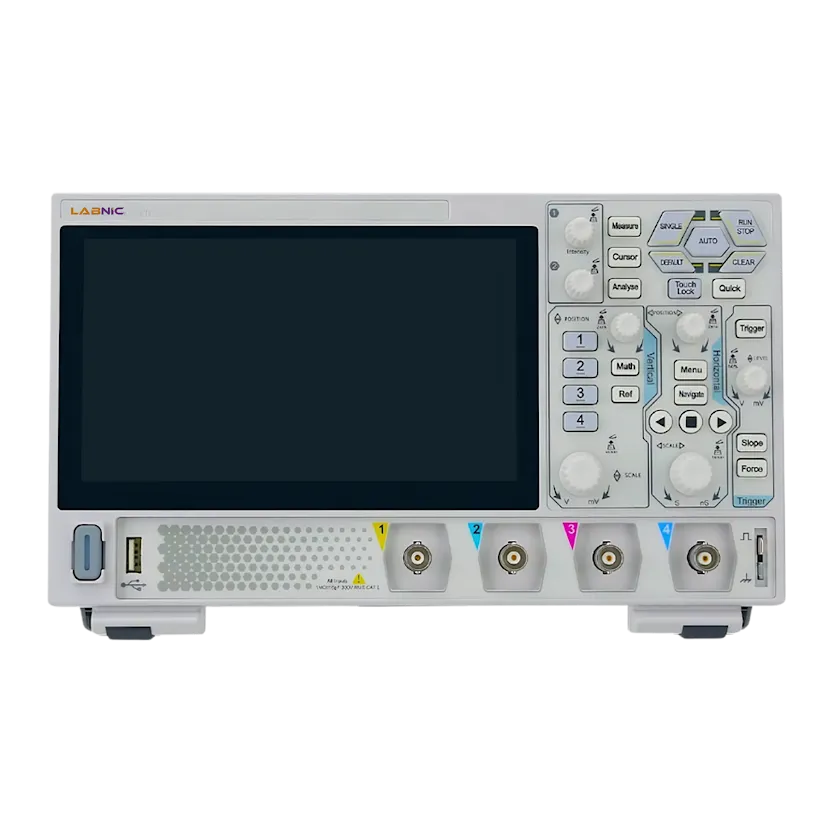

Digital Oscilloscope LBN-CO112 delivers ultra-low noise performance with high 12-bit resolution for precise signal analysis.It ensures a wide 100 MHz analog bandwidth with fast rise time ≤3.5 ns for reliable waveform capture.Equipped with a real-time sampling rate up to 1.25 GSa/s and 25 Mpts memory depth, it provides detailed waveform recording.Integrated with a 7-inch capacitive multi-touch screen, digital phosphor display, and intuitive Flex Knob for smooth operation.Our Digital Oscilloscope LBN-CO112 is widely used in electronics research, circuit debugging, education, industrial testing, and R&D applications.
| Channels | 4 Analog + EXT Trigger |
|---|---|
| Bandwidth | 100 MHz |
| Sampling Rate | Up to 1.25 GSa/s (single-channel)<br>625 MSa/s (dual-channel)<br>312.5 MSa/s (full-channel) |
| Memory Depth | Up to 25 Mpts (single-channel)<br>10 Mpts (dual-channel)<br>5 Mpts (full-channel) |
| 4M Dual Channel | Yes |
| Vertical Range | 500 μV/div to 10 V/div |
| Vertical Resolution | 12 bits |
| Probe Attenuation Factor | 1X, 10X (auto detected) |
| Input Coupling | DC, AC, GND |
| Input Impedance | 1 MΩ ± 1% |
| Max Input Voltage | 400 V (DC + AC Peak, 1 MΩ) 5 Vrms (50 Ω) |
| Trigger Types | Edge, Pulse, Video, Slope, Alternative, Pattern, Timeout |
| Protocol Decoding | Optional: I²C, SPI, RS232/UART, CAN, LIN |
| Math & FFT Functions | Add, Subtract, Multiply, Divide, FFT, Filter |
| Auto Measurements | > 30 automatic measurements |
| Digital Voltmeter | Supported |
| Data Storage | 500,000 frames (real-time recording) |
| Remote Control | USB, LAN, HDMI interfaces |
| Display Type | 7-inch capacitive multi-touch LCD (1024×600) |
| Display Persistence Time | Real-time 256-level intensity grading |
| Probe Compensation Output | 1 kHz square wave |
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | -20 °C to +70 °C |
| Humidity | ≤ 85% RH (non-condensing) |
| Altitude Operating/Non-op | Up to 3,000 m operating / 15,000 m non-operating |
| Vibration/Mechanical Shock | Meets MIL-STD-810G |
| Power Consumption | < 45 W |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Dimensions | Approx. 323 × 151 × 135 mm |
| Weight | Approx. 2.6 kg |
<span style="background-color:transparent;color:#000000;">Waveform Search & Navigation</span>
<span style="background-color:transparent;color:#000000;">Ultra-Low Noise Floor</span>
<span style="background-color:transparent;color:#000000;">Real-Time 256-Level Intensity Grading</span>
<span style="background-color:transparent;color:#000000;">Flex Knob for User-Friendly Control</span>
<span style="background-color:transparent;color:#000000;">Hardware Waveform Recording up to 500,000 frames</span>
Digital Oscilloscope LBN-CO112 is widely used in electronics design, circuit debugging, education, R&D, and industrial testing and ideal for signal integrity analysis, waveform monitoring, troubleshooting, and product development.
