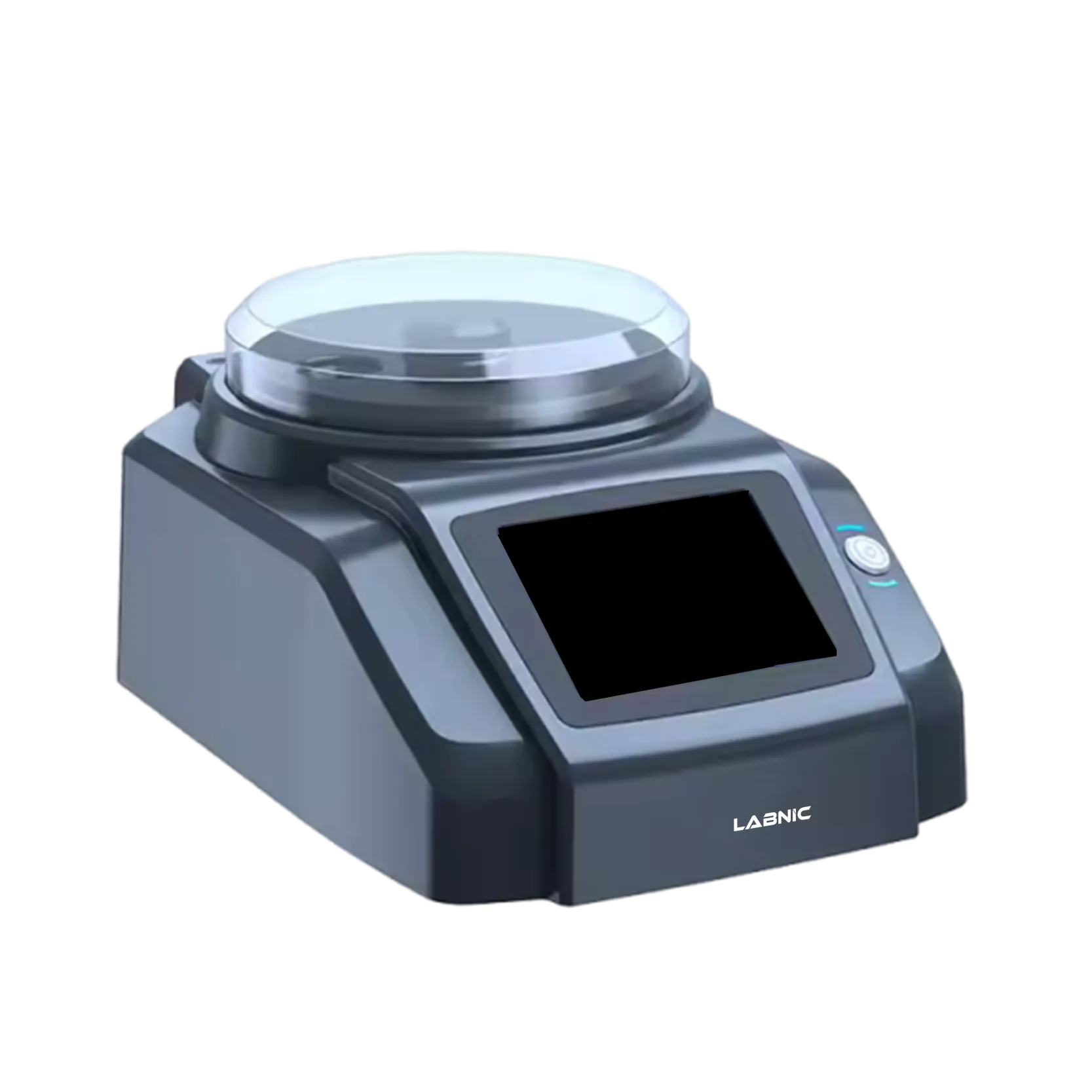

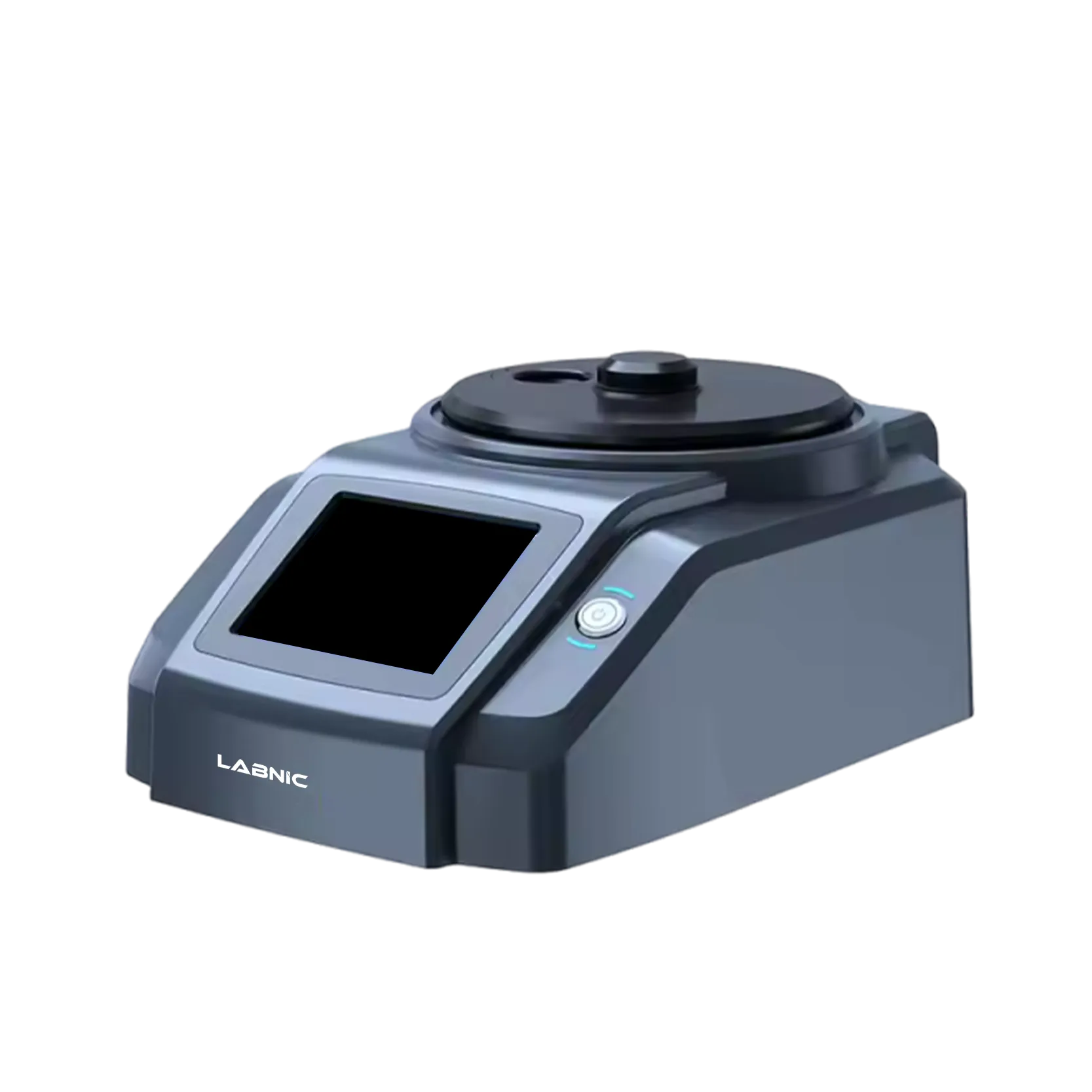

Ferrous Debris Monitor LBN-FM151 utilizes a PQ index measurement system to detect large ferromagnetic wear particles. Equipped with a quantitative analysis function, it accurately identifies wear debris in oil for enhanced fault detection. Integrated with a human-computer interaction interface, it displays each operation on the screen for user convenience. Built-in customizable settings allow users to select detection methods and name measurement data. Our Ferrous Debris Monitor includes a 4.5 ml special oil sample container with a matching conversion ring for precise analysis.
| Detection Range | 0 to 15000 PQ |
| Capture Ferromagnetic Wear Particle Range | Greater Than 1µm |
| Turntable Speed | 11S / Turn |
| Measurement Resolution | 1PQ (Average Resolution 0.1PQ) |
| Repeatability | ±0.5% or ±3PQ. |
| Ambient Temperature | 15℃ to 30℃ |
| Working Environment Humidity | 30% to 80%RH |
| Operation Input Method | Capacitive Touch Screen on Display |
| USB Connection | Type-A2.0 (Only for Connecting USB Flash Disk) |
| Data Communication | RS232 Serial Communication Port |
| Display | 5.6 inches TFT color LCD display ( 640 × 480 ) |
| Power Connection | IEC 6A 3PIN Power Cord |
| Power Consumption | Less Than 15 W |
| Power Supply | AC 100V to 240V 50Hz/60Hz |
| Dimensions | 402 × 266 × 186 mm |
| Package Dimension | 48 × 47 × 26 cm |
| Weight | Less Than 5 kg |
| Package Gross Weight | 9 kg |
Standard Oil Samples – 100 pcs
Oil Box
Power Adapter
Ferrous Debris Monitor LBN-FM151is used in oil analysis labs, wind energy, oil and gas processing, power generation, offshore & power generation, and more.
Ferrous Debris Monitor LBN-FM151is used in oil analysis labs, wind energy, oil and gas processing, power generation, offshore & power generation, and more.
Most Frequently Asked Questions
1. What are Ferrous Debris Monitors used for?
Ans. Ferrous Debris Monitors are used to detect and quantify ferromagnetic wear particles in lubricating oils.
2. What measurement method is used in Ferrous Debris Monitors?
Ans. Ferrous Debris Monitors use a PQ index measurement system to identify large ferromagnetic particles.
3. How do Ferrous Debris Monitors support fault detection?
Ans. Ferrous Debris Monitors enhance fault detection by accurately monitoring wear particle concentration in lubricants.
4. What interface features are available in Ferrous Debris Monitors?
Ans. Ferrous Debris Monitors feature a human-computer interaction interface with real-time result display.
5. Can detection settings be customized in Ferrous Debris Monitors?
Ans. Ferrous Debris Monitors allow customizable detection methods and naming of measurement data.
6. Where are Ferrous Debris Monitors commonly used?
Ans. Ferrous Debris Monitors are commonly used in oil analysis, machinery maintenance, and industrial equipment monitoring.
