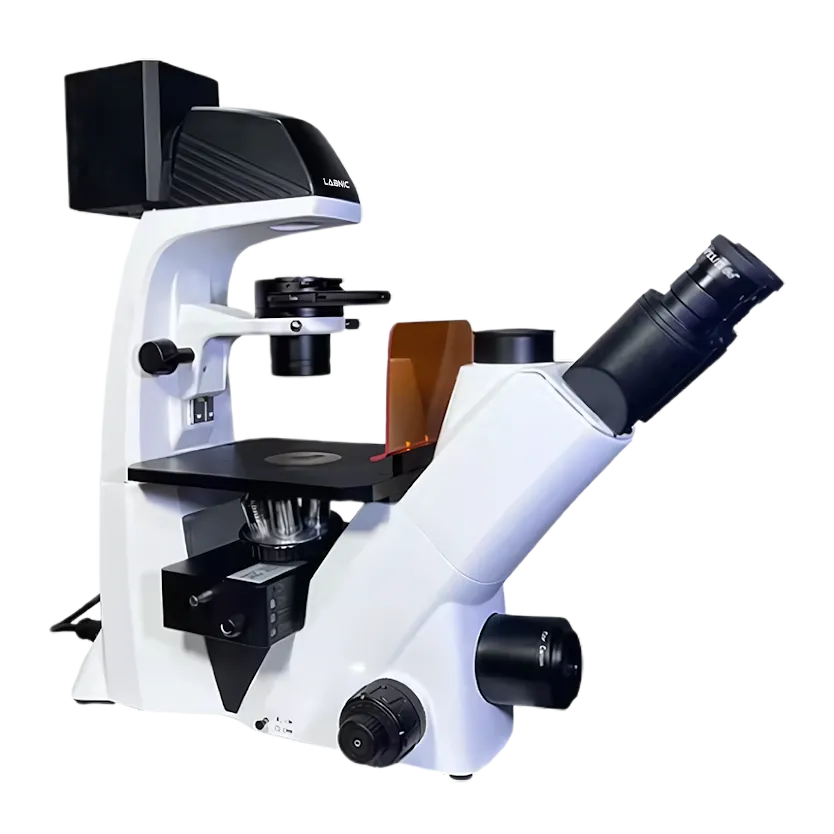

Inverted Biological Microscope LBN-IM120 is a reverse design model featuring a 5W illumination system for advanced imaging performance. Its ergonomic design ensures smooth rotation and easy access, reducing hand strain and improving workflow during extended use. Built-in LED epi-fluorescence modules for enhanced brightness with synchronized UV filters. Equipped with long working distance condenser and adaptable knobs for left or right-hand use. Our Biological microscope is ideal for cytology, microbiology, oncology, genetic engineering, botany, and various biomedical research fields.
| Viewing head | Trinocular Tube, Inclined at 45°, Interpupillary Distance Adjustable 48 to 76 mm |
| Eyepiece | Wide field Eyepiece WF15×/ 16mm |
| Objectives | Infinite Plan Achromatic Objective |
| Nosepiece | Quintuple Nosepiece |
| Optical System | Infinite Optical System |
| Condenser | Long Working Distance Condenser, N.A. 0.3. Working Distance: 72mm (with Condenser), 195mm (Without Condenser) |
| Cantering Telescope Eyepiece | 30 mm |
| Phase Contrast kit | 4× 10× 20×40× Phase Annulus Plate |
| Stage Dimensions | 210×241 mm Auxiliary Stage |
| Stage Attachment | Holder for Blood Cell Counter |
| Gross Weight | 18.5 kgs |
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 10mm |
| Illumination | 12V/30W Halogen Lamp, |
| Filter | Blue, Green, Amber/ Grey Filter with Diameter 34mm |
| Dimension | 66×59×33 mm |
| Net Weight | 14 kgs |
Inverted Biological Microscope LBN-IM120 is ideal for Cell culture observation, Tissue analysis, cytology, microbiology, genetic engineering, botany, and various biomedical research fields.
Inverted Biological Microscope LBN-IM120 is ideal for Cell culture observation, Tissue analysis, cytology, microbiology, genetic engineering, botany, and various biomedical research fields.
Most Frequently Asked Questions
1. What is an Inverted Biological Microscope?
Ans. An Inverted Biological Microscope is designed for observing live cells, tissue cultures, and liquid samples from below, with the light source and objective lenses positioned beneath the stage.
2. What are the key applications of an Inverted Biological Microscope?
Ans. It is widely used in cell biology, microbiology, IVF research, pharmaceutical studies, and live-cell imaging for observing adherent cells, tissue cultures, and microorganisms.
3. What types of samples can be observed with an Inverted Biological Microscope?
Ans. It is suitable for adherent cells, tissue cultures, microorganisms, embryos, and aquatic specimens in liquid media.
4. Does an Inverted Biological Microscope require special objective lenses?
Ans. Yes, it uses long working distance (LWD) objective lenses, allowing focus through thick samples or liquid media.
5. What are the advantages of using an Inverted Biological Microscope?
Ans. It allows non-invasive live-cell observation, supports larger sample containers like flasks and petri dishes, and is compatible with advanced imaging techniques such as fluorescence and phase contrast.
Inverted Biological Microscope LBN-IM120 is a reverse design model featuring a 5W illumination system for advanced imaging performance. Its ergonomic design ensures smooth rotation and easy access, reducing hand strain and improving workflow during extended use. Built-in LED epi-fluorescence modules for enhanced brightness with synchronized UV filters. Equipped with long working distance condenser and adaptable knobs for left or right-hand use. Our Biological microscope is ideal for cytology, microbiology, oncology, genetic engineering, botany, and various biomedical research fields.
