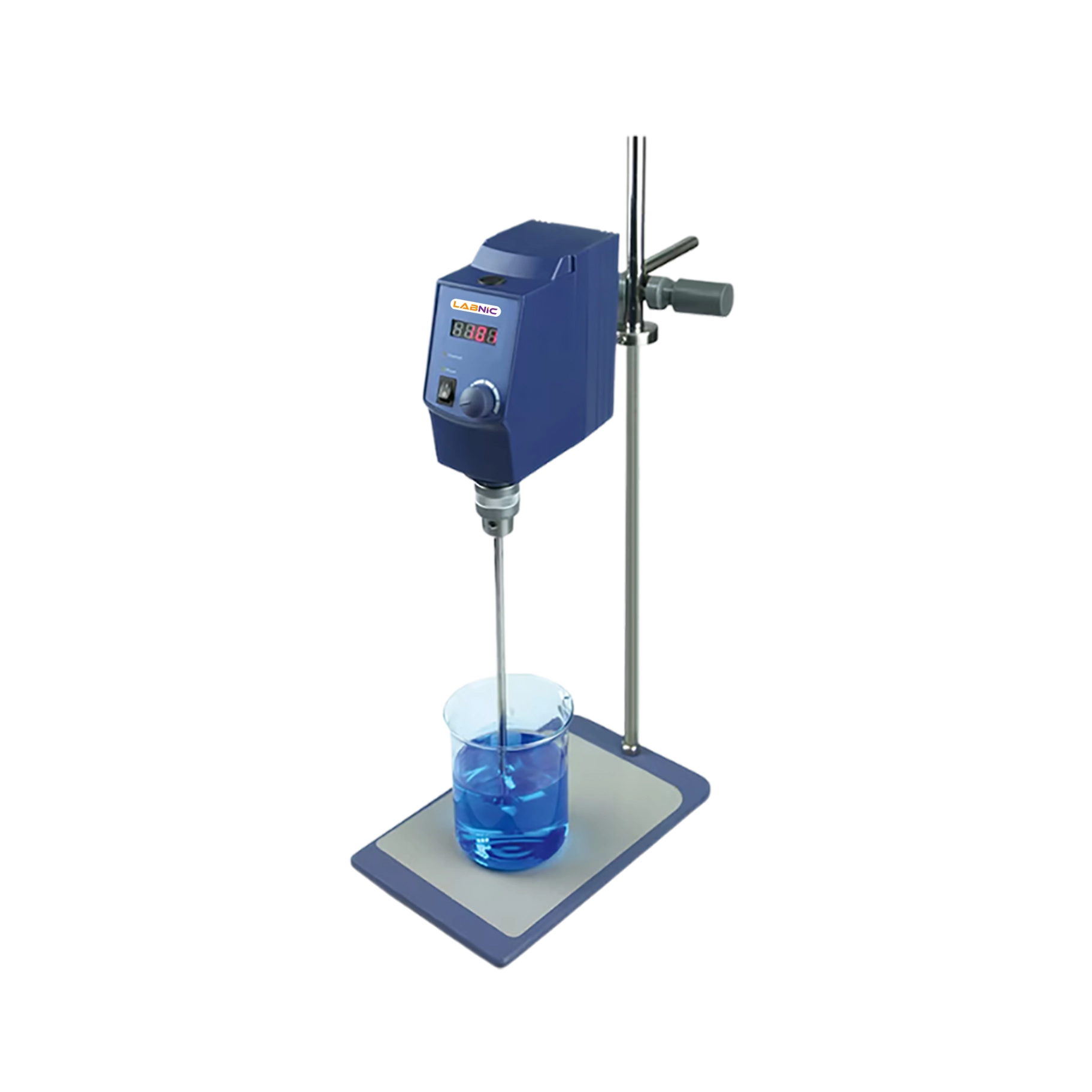

Over Head Stirrer LBN-OS122 is an ideal instrument with stirring paddle perforative hole. Equipped with powerfull brushless motor with strong torque and strong power stirring. It is also suitable for liquids with different viscocity. Drill chuck is made up of stainless steel material. It can stirr maximum 20 L of H2O with a maximum speed ranging from 2 to 1200 rpm. Ensures high torque and strong power stirring with a wide range of volumes.
| Motor | Brushless motor |
| Maximum amount of stirring (H20) | 20 L |
| RPM | 50 to 1200 rpm |
| Timing | 1 min to 23 h 59 min |
| Maximum Torque | 30 Ncm |
| Maximum Viscosity | 16000 mPas |
| Clamping diameter range of drill chuck | 1 to 8 mm |
| Power | 60W |
| Voltage | AC 100 to 240 V |
| Size | 368×262×162 mm |
| Weight | 7.7 Kg |
Provided with digital speed display
Maintain constant speed even with the changes in sample viscosities
Stirrers have a slim casing and provide noiseless operation
Strong torque and power stirring
Overload protection and circuit protection
Stirring paddle perforrative hole to adapt the containers stable
Shaft and pre-set speed are constantly monitored, and automatically adjust the variations
They are widely used for mixing the middle or high viscosity sample mixing in chemical synthesis, pharmaceutical synthesis, petrochemical industries, physical and chemical analysis
