Portable Turbidity Meter LBN-PT171

Portable Turbidity Meter LBN-PT171

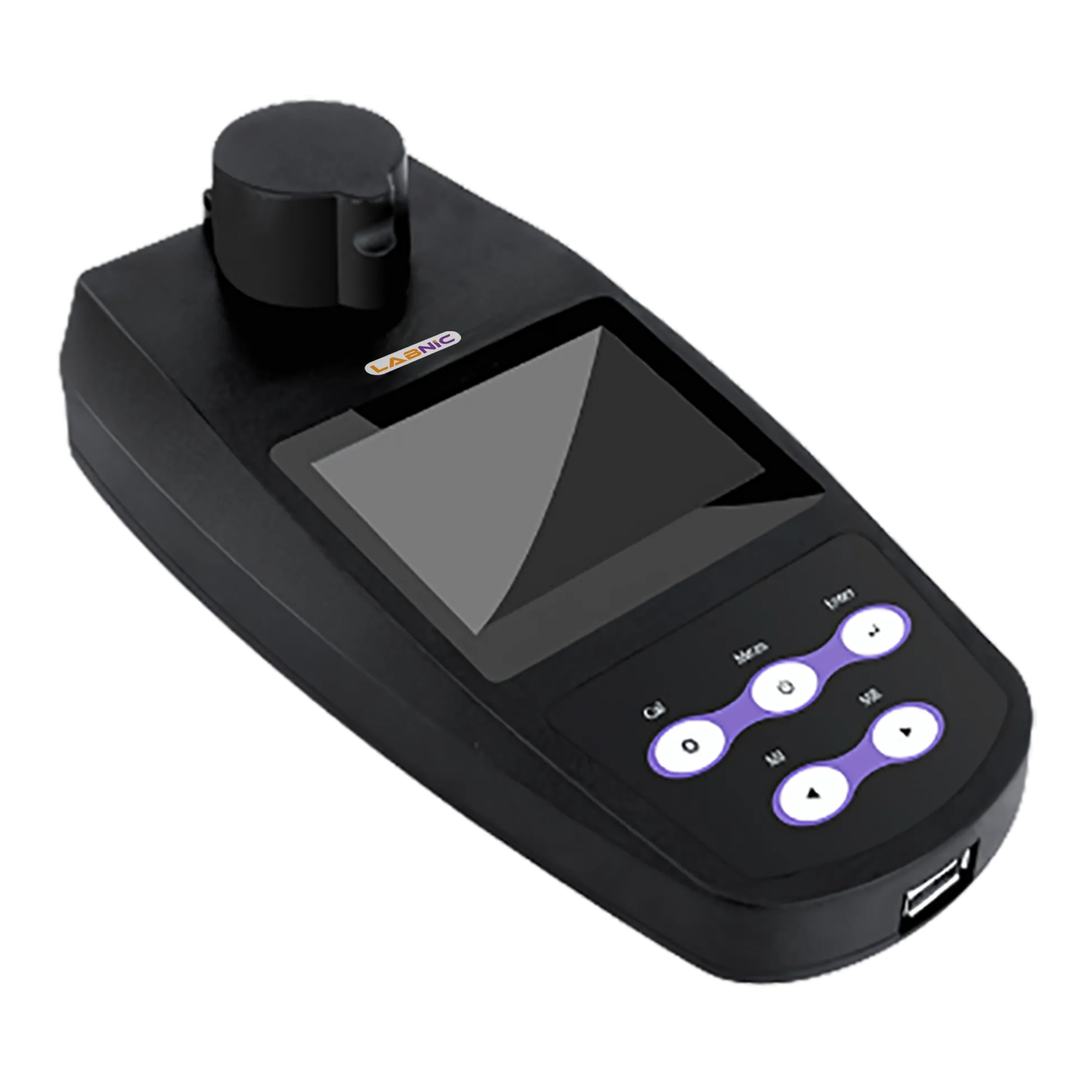

Portable Turbidity Meter LBN-PT171 is a simple yet powerful device which offers an impressive array of features which can perform 2 to 5 points calibration. It is easy to carry around and take multiple measurements from various collection points in treatment process. It uses an infrared LED light source with 850 nm wavelength operating within 0 to 50°C temperature range. With its intuitive user interface it is easy to take measurements and perform calibration and verifications easily.

Principle Nephelometric Method (90°)
Measuring Range 0~1100 Ntu, 0~275 Ebc, 0~9999 Asbc
Display Resolution 0.01 (0~99 Ntu), 0.1 (100~999 Ntu), 1 (1000~1100 Ntu)
Measurement Accuracy ±2% (0~500 Ntu), ±3% (501~1100 Ntu)
Calibration Point 2 To 5 Points
Standard Solution 0.02, 10, 200, 500, 1000 Ntu
Operating Temperature 0 To 50°C
Light Source Infrared Led, 850 nm
Detector Silicon Photodiode
Stray Light <0.02 Ntu
Vial Size 60×25 Mm
Sample Capacity 20 ml
Automatic Shut-Down After 15 Minutes Of No Key Operation
Data Storage 100 Groups
Communication Output USB
Display Customized LCD Screen (60×40 Mm)
Power Type 3×1.5V AA batteries or DC 5V Power Adapter
Dimensions 180×85×70 mm
Weight 300 g

High performance portable turbidity meter

2 to 5 points calibration

Selectable 4 turbidity units, NTU, FNU, EBC and ASBC

Single measurement mode automatically senses and locks a stable reading

Continuous measurement mode can be used for indexing or matching the sample vials

Auto power off effectively conserves battery life

Setup menu allows setting the number of calibration points, resolution, date and time etc

Reset function automatically resumes all settings back to the factory defaults

Expanded memory stores or recalls up to 100 data sets

USB communication interface for data transfer or connecting a power adapter to meter

It is suitable for water analysis control, fuel, cell cultures, food and beverage industries etc.

Download Catalog for Portable Turbidity Meter LBN-PT171
