Vertical Autoclave LBN-VA154

Vertical Autoclave LBN-VA154

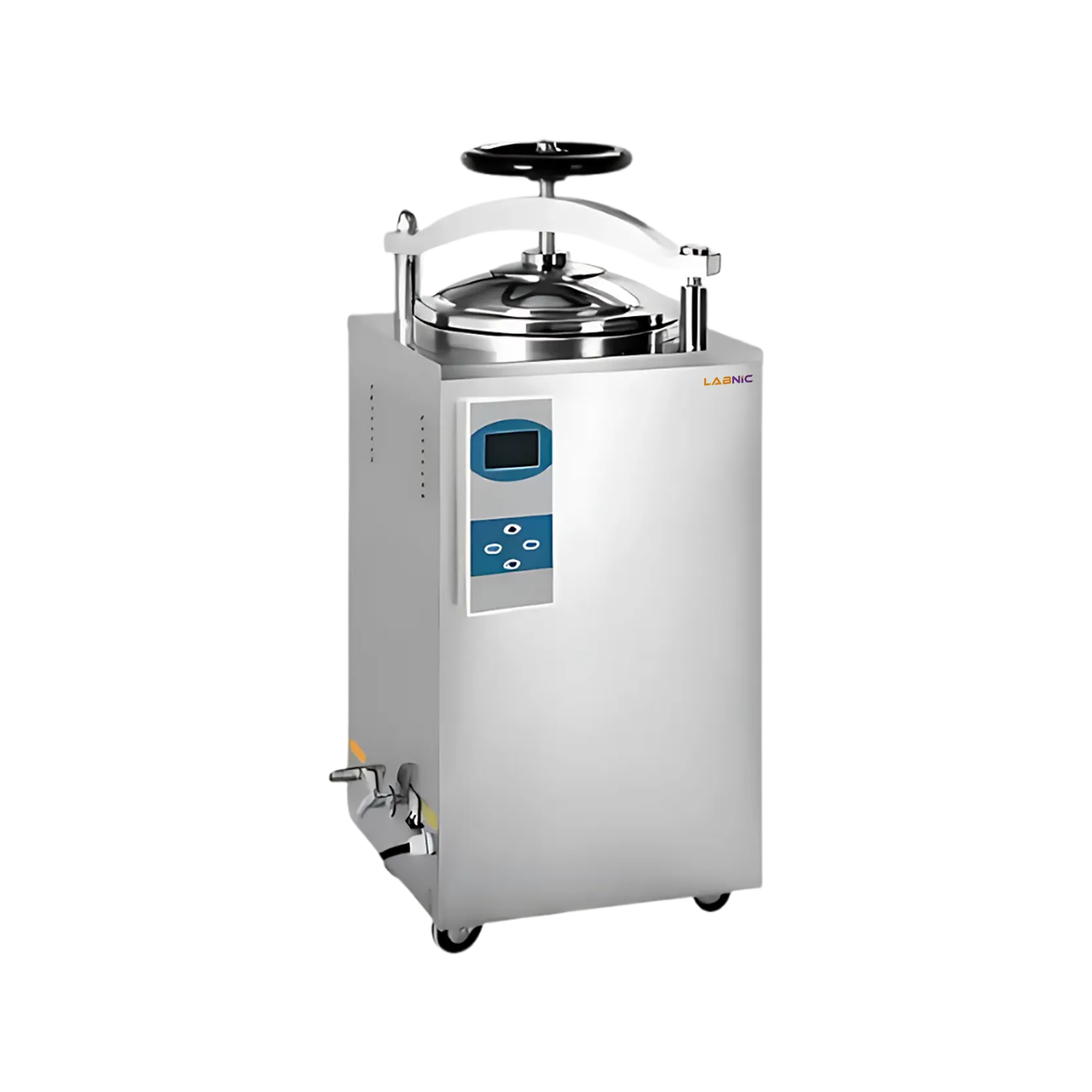

Vertical Autoclave LBN-VA154 is a top loading vertical autoclave that offers high quality, repeatable performance, and accountability for a wide range of applications. It has an easy-to-use control panel and a stainless steel chamber. It has a working capacity of 100 liters and operates in the 135/139°C temperature range. The LCD display, which is both long-lasting and high-resolution, provides an easy-to-use interface with real-time display of set and actual temperatures.

Volume 100 liters
Maximum Working / Design Temperature 135° / 139°C
Maximum Working / Design Pressure 0.22 / 0.25 MPa
Timer Range 4 – 120 min
Basket Dimension ɸ360×230 mm
Number of Baskets 3
Power 3.5 KW
Power Supply 220V±10%, 50 Hz
Internal Dimension Ø400×830 mm
Housing Dimension (W×D×H) 485×485×1290 mm
Packing Size 610×610×1490 mm
Net Weight 75 Kg
Gross Weight 89 Kg

Made of SUS304 stainless steel material

Hand-wheel type quick open door

Self-expanding type sealing ring

Exhaust cold air automatically

Microcomputer intelligent control

Self-exhaust during over pressure

Pressure safety interlock

Over temperature protection

Alarm indication in case of sterilization ends or fault indication

Equipped with G1/2A internal thread samples test hole

It is highly used in research and development centers, educational institutes, laboratories and different quality assurance facilities for material tests, culture media preparation and sterilization of various materials.
