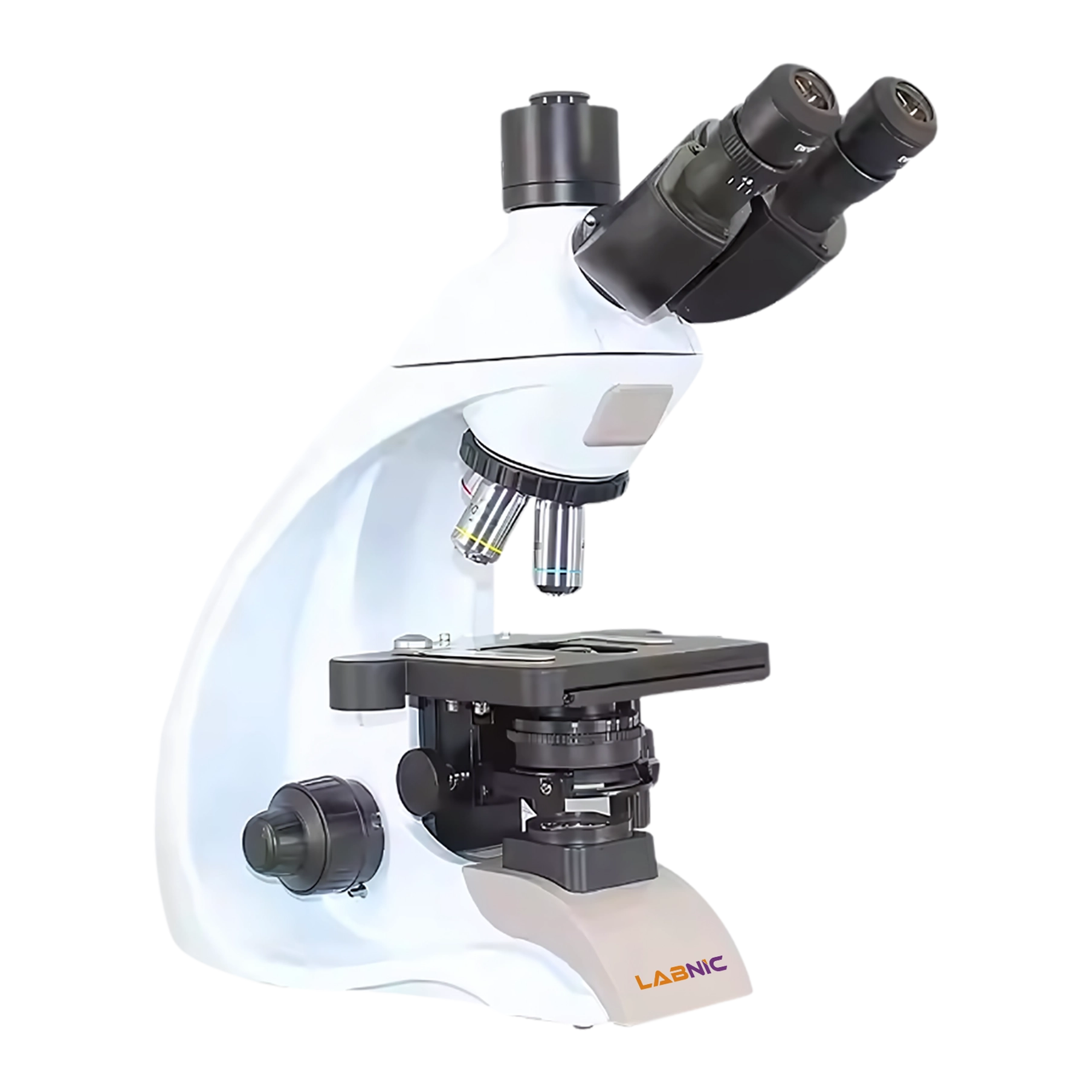

Biological Microscope LBN-BO144 delivers expansive 40× to 1000× magnification for precision laboratory microscope analysis. It features an advanced infinity optical system producing crisp, flat field images across specimens. Equipped with LED illumination and 23mm eyepieces, bright, wide-field observation. Integrated Ergonomic base, low-position coaxial focus, and roomy stages streamline prolonged research session. Our Biological Microscope is ideal for medical diagnostics, academic teaching, microbiology, and pathology applications.
| Total Magnification | 40× to 1000× |
|---|---|
| Optical System | Infinity Achromatic |
| Eyepiece | WF10X, 23 mm FOV |
| Objectives | 4×, 10×, 20×, 40×, 100× (oil, spring) |
| Viewing Head | Trinocular, 30° Inclined, 360° Rotatable |
| Stage | 210 × 140 mm, Travel 80 × 50 mm |
| Focusing | Coarse/fine, 2 µm Fine Division |
| Condenser | Abbe NA 1.25, Adjustable Iris |
| Pupil Distance | 55 to 75 mm |
| Diopter Adjustment | ±5 |
| Illumination | 3 W Adjustable LED |
| Power Consumption | 3 W |
| Power Supply | 85 to 265 V AC, 50/60 Hz |
| Dimensions | 210 × 300 × 470 mm |
| Weight | 10 kg |
Mold-Resistant Coating
Ergonomic Coaxial Controls
Large Sample Stage
Adjustable Condenser Iris
Trinocular Camera Port
Durable Metal Construction
Camera: 4K Resolution
9 inches
11. 6-inch screen. 40x-100x
Biological Microscope LBN-BO144 is ideal for hospital laboratories, university teaching, microbiology research, pathological examination, and routine clinical testing.
