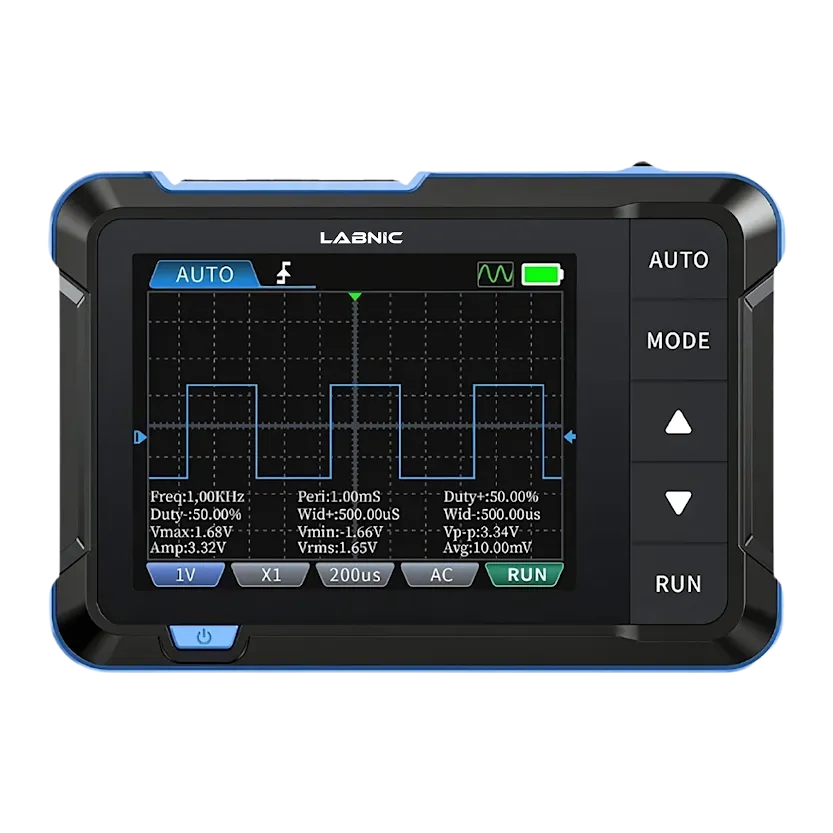

Digital Oscilloscope LBN-CO113 Catalog

Digital Oscilloscope LBN-CO113 ensures precise waveform analysis and advanced signal measurement for professional electronics testing.It supports 12 versatile waveform types, including sine, square, sawtooth, and multitone signals for accurate signal monitoring.Equipped with a compact and lightweight design, it ensures easy portability without compromising durability.Integrated high-resolution display delivers crystal-clear waveform visualization for reliable measurement. Our Digital Oscilloscopes is ideal for laboratories, electronics testing, educational institutions, and field diagnostics.

Frequency	0 to 10KHz
Bandwidth	1 MHz
Sampling Rate	5 MSa/s
Display	2.8-inch TFT LCD, 320 × 240 resolution
Vertical Sensitivity	10 mV/div to 20 V/div
Time Base Range	500 ns/div to 20 s/div
Signal Generator	12 Waveform Types
Signal Generator Output	Amplitude: 0.1 V to 3.3 V; Duty cycle: 0% to 100%
Trigger Modes	Auto, Normal, Single
Coupling Methods	AC/DC
Battery	1000 mAh Lithium Battery; approx. 4 Hours Runtime
Power Consumption	≤ 2 W
Power Supply	X1: ±40 V (Vpp: 80 V); X10: ±400 V (Vpp: 800 V)
Dimensions	210 × 150 × 50 mm
Weight	0.24 kg

<span style="background-color:transparent;color:#000000;">12 Waveform Signal Types</span>

<span style="background-color:transparent;color:#000000;">Compact and Portable Design</span>

<span style="background-color:transparent;color:#000000;">Durable Laboratory-Grade Construction</span>

<span style="background-color:transparent;color:#000000;">High-Resolution Waveform Display</span>

<span style="background-color:transparent;color:#000000;">Advanced Signal Generator Functions</span>

Digital Oscilloscope LBN-CO113 is ideal for laboratories, educational institutions, field testing, R&D, and hobbyist electronics projects.
