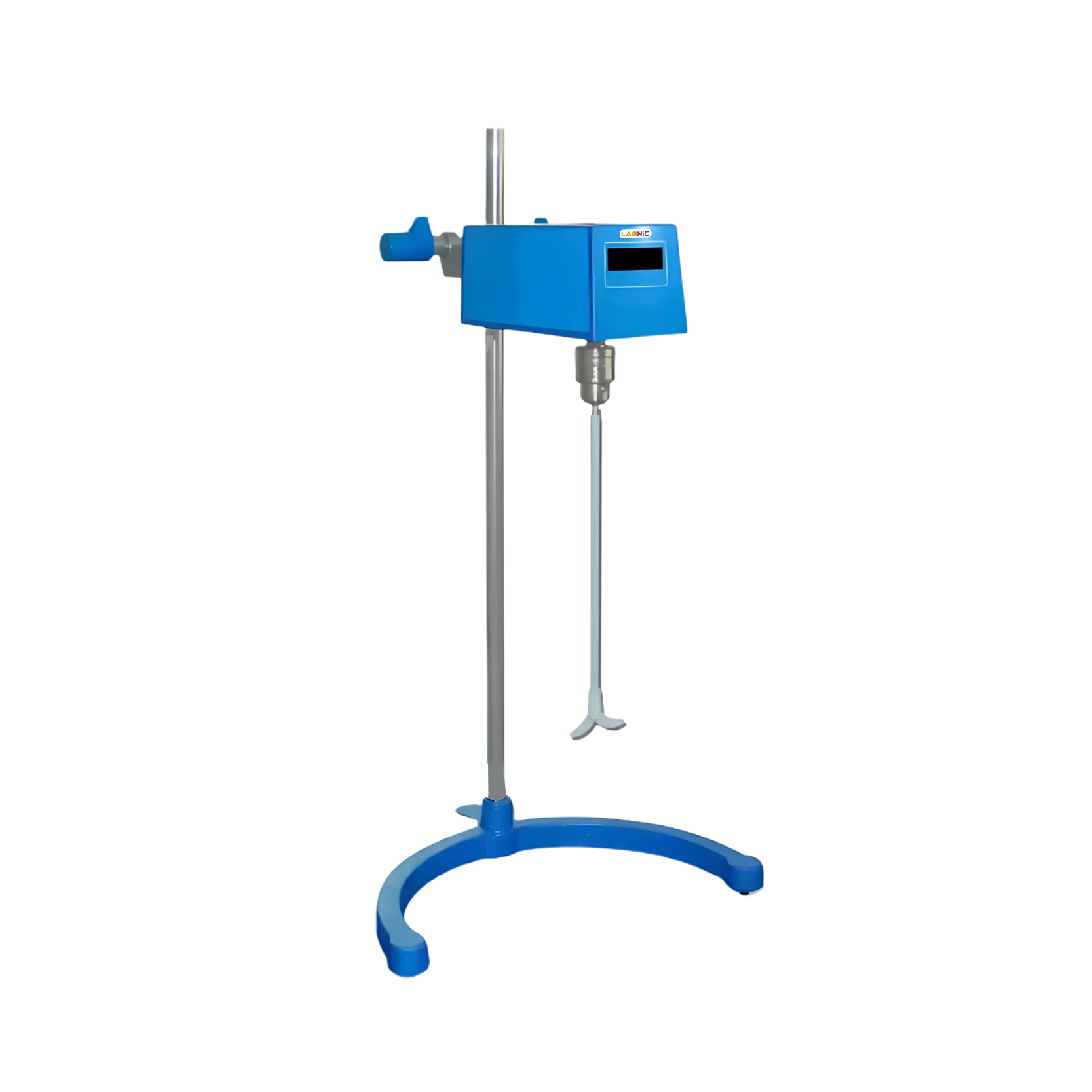

Overhead Stirrer LBN-OS175 ensures efficient mixing with a maximum stirring volume of 40L. Built-in with a speed range of 60 to 1500 rpm, it delivers precise and stable operation. Equipped with an LCD display, it provides clear real-time monitoring of speed and settings. Integrated with a timer function, it allows controlled and consistent processing. Our Overhead Stirrer is suitable for laboratories, research facilities, and industrial applications.
| Stir Speed Range | 60 to 1500 RPM |
| Stirring Volume (Water) | 40 L |
| Timer | 0 to 9999 Min |
| Motor Type | Brushless DC Motor |
| Motor Torque | 450m N.M |
| Stir Rod Length | 350 mm (Standard) |
| Stir Rod Material | SS 304 |
| Holder Length | 700 mm |
| Speed Control System | Closed Loop MCU Control |
| Digital Display | LCD |
| Chuck Clamping Range | Ø 1.5 to 10 |
| Motor Power | 100 W |
| Power Supply | 220 V / 110 Optional |
| Dimension (CM) | 69 × 39 × 20 |
| Gross Weight | 11.5 kg |
Overhead Stirrer LBN-OS175 is ideal for mixing liquids in laboratories, research facilities, chemical industries, manufacturing units, chemical synthesis, pharmaceuticals, physical and chemical analysis, petrochemicals, cosmetics, healthcare, food, and biotechnology fields.
Overhead Stirrer LBN-OS175 is ideal for mixing liquids in laboratories, research facilities, chemical industries, manufacturing units, chemical synthesis, pharmaceuticals, physical and chemical analysis, petrochemicals, cosmetics, healthcare, food, and biotechnology fields.
Most Frequently Asked Questions
1. What are Overhead Stirrers used for?
Ans. Overhead Stirrers are used for mixing, homogenizing, and recirculating large volumes or high-viscosity substances.
2. What stirring capacity is supported by Overhead Stirrers?
Ans. Overhead Stirrers support maximum stirring capacities ranging from 10 L to 70 L for versatile laboratory applications.
3. How do Overhead Stirrers ensure safe operation?
Ans. Overhead Stirrers are equipped with overload protection to prevent damage and ensure safe, reliable operation.
4. How do Overhead Stirrers maintain consistent performance?
Ans. Overhead Stirrers maintain constant stirring speed even when sample viscosity changes during operation.
5. What happens if there is a power interruption during stirring?
Ans. Overhead Stirrers automatically restart after power loss, ensuring uninterrupted and consistent workflows.
6. Where are Overhead Stirrers commonly used?
Ans. Overhead Stirrers are commonly used in research laboratories, chemical processing, and industrial mixing applications.
Overhead Stirrer LBN-OS175 ensures efficient mixing with a maximum stirring volume of 40L. Built-in with a speed range of 60 to 1500 rpm, it delivers precise and stable operation. Equipped with an LCD display, it provides clear real-time monitoring of speed and settings. Integrated with a timer function, it allows controlled and consistent processing. Our Overhead Stirrer is suitable for laboratories, research facilities, and industrial applications.
