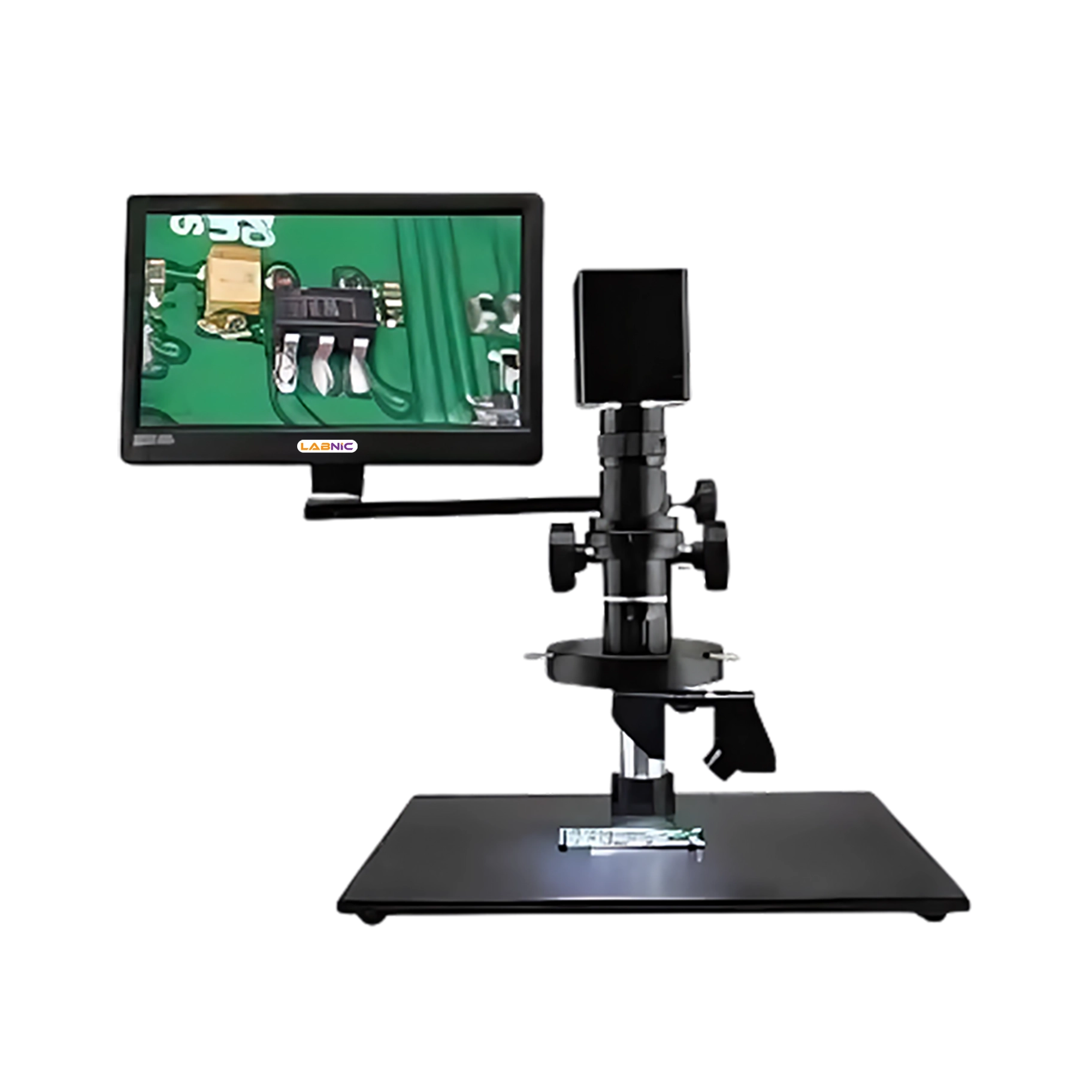

Stereo Microscope LBN-SM132 consists of a 12.5-inch monitor screen with 11-95x base magnification. This microscope, with its high resolution, is used to view and examine objects easily and clearly. It features a manual and auto brightness control system, a 2-megapixel camera with HDMI. LED as light source and pole stand are incorporated in microscope.
| Standard Magnification | 0.6-5.0x |
|---|---|
| Focusing | Coarse Only |
| Light Source | LED |
| Reflect Light | LED 4 zones control, 208 LEDs, 15000 Lux |
| Power Supply | AC110V-240V |
| Video Adapter | C-Mount 0.5x |
| Working Distance | 86 mm |
| Stereo Stand | Pole Stand |
| Height | 318 mm |
| Camera Pixel | 2.0MP |
| Sensor Size | 1/2 inch |
| Screen Size | 12.5 inch |
| Mounting | C-Mount |
| Output | HDMI, USB Hard Disk |
| Weight | 8 Kg |
| Dimensions (L × D × H) | 430 × 410 × 360 mm |
It consists of an LED light source
0.5x magnification with the C-mount video adapter
C-mount HDMI camera features
USB Hard Disk Camera output
A 12.5-inch monitor screen
Focuses on coarse specimen only
A camera of 2-megapixel resolution
Stereo Microscope is used for the designing of motherboards, PCBs, SMT, in the fields of technology, engineering institutes, laboratories, scientific research institutes, metallurgy, etc.
