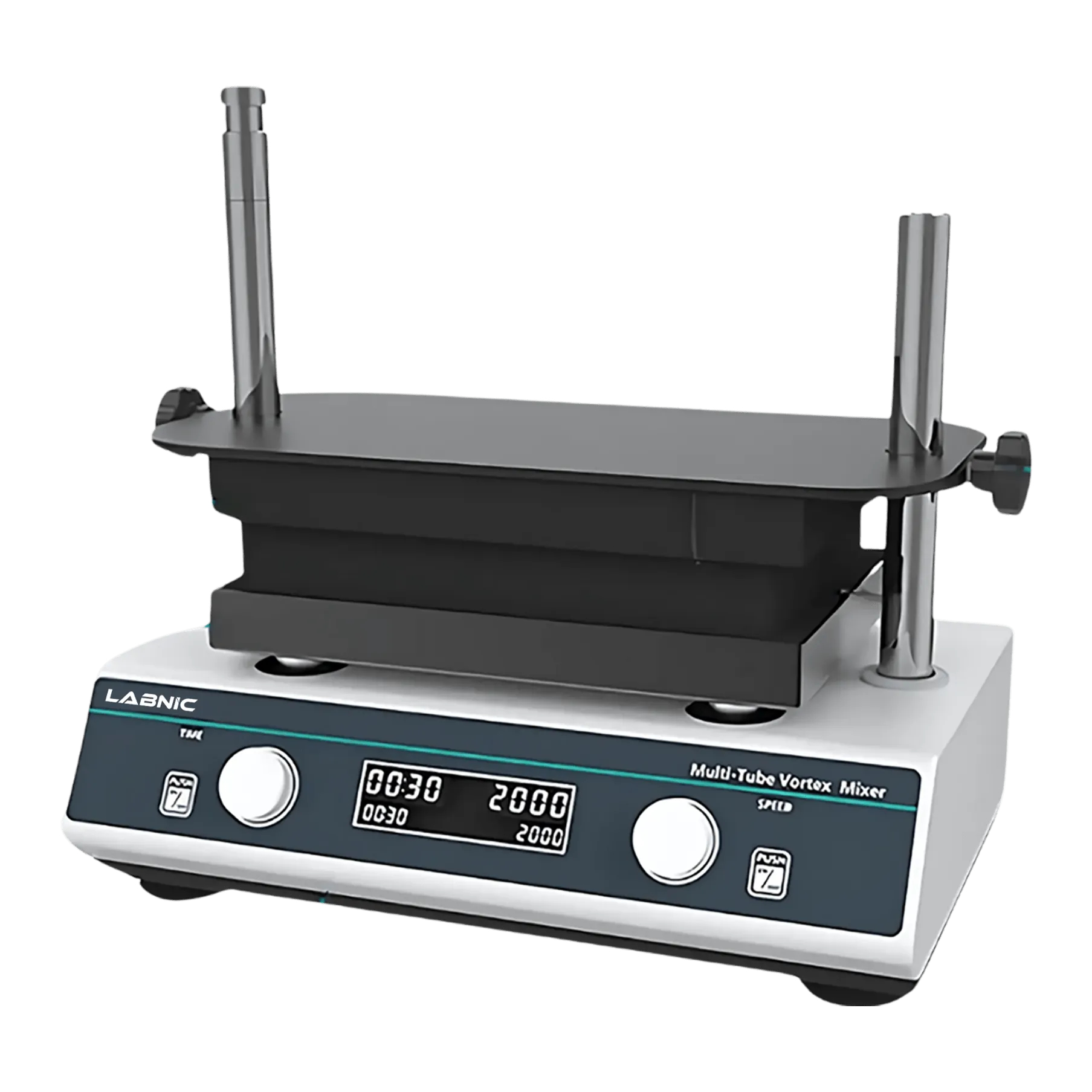

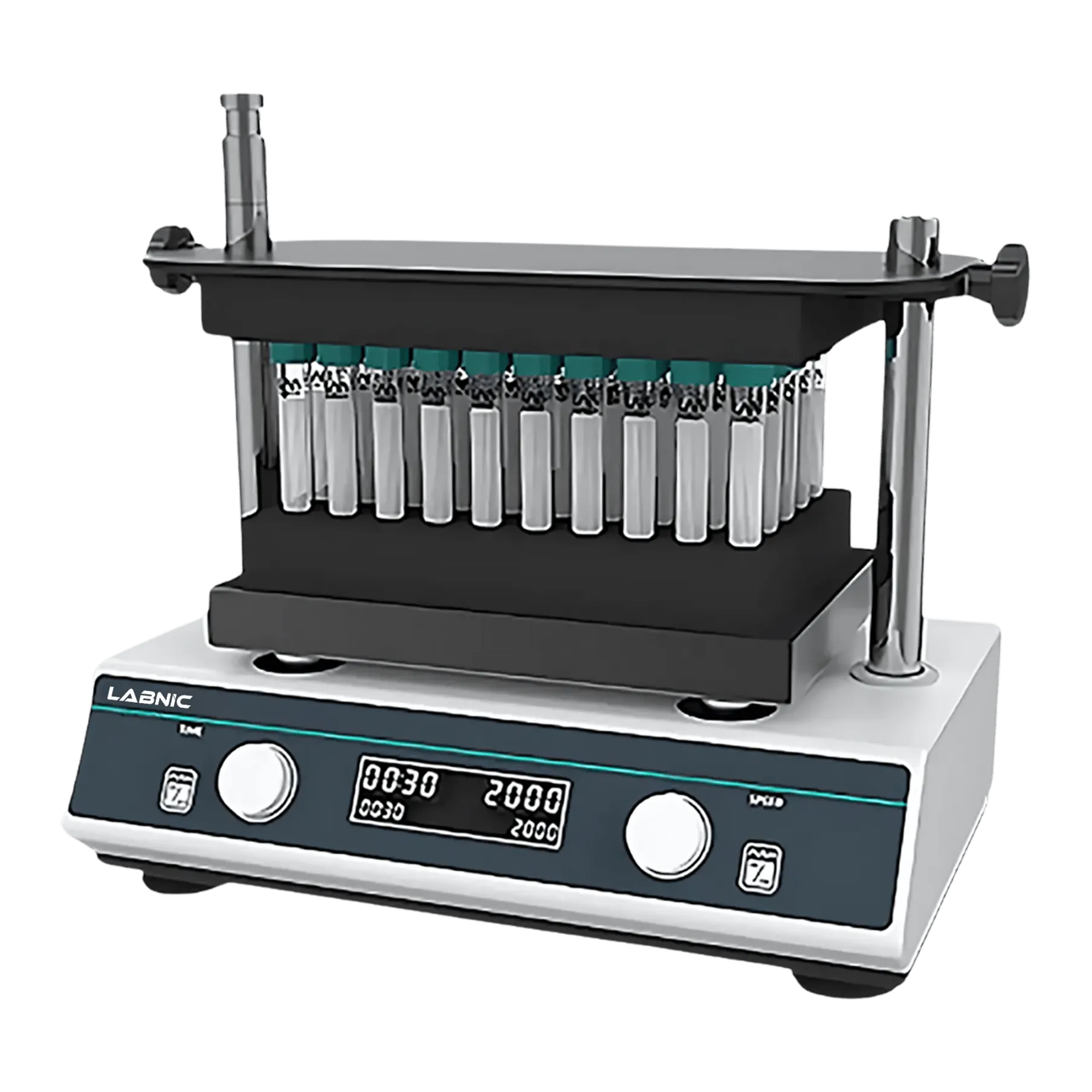

Multi-Tube Vortex Mixer LBN-MV141 processes 50 samples simultaneously with precise speed range of 500 to 3000 rpm. Offers both touch and continuous oscillation modes for user-friendly operation. Equipped with microprocessor technology for digital programming of both speed and time. Features maintenance-free, low-noise brushless DC motor for long service life. With soft start and uniform acceleration, our Multi-Tube Vortex Mixer delivers safe and reliable mixing.
| Speed Range | 500 to 3000 rpm |
| Sample Capacity | 50 |
| Amplitude | 4 mm |
| Shaking Mode | Horizontal Swing |
| Operation Mode | Touch / Continuous |
| Time Range | 1 min to 24 hrs |
| Maximum Load | 4.5 Kg |
| Display | LED |
| Controller Type | Microprocessor |
| Motor | Brushless DC Motor |
| Power Consumption | 100 W |
| Dimension (L × W × H) | 555 × 435 × 510 mm |
| Net Weight | 19 Kg |
| Gross Weight | 20 Kg |
Compact benchtop
Real-time LED screen
Smooth and stable operation
Large processing capacity
Time and speed adjustable knobs
Interchangeable foam racks
Easy to switch from touch to run mode
Multi-Tube Vortex Mixer is widely used for mixing or resuspension of cells in medical, life sciences, chemical pharmaceuticals, and agricultural scientific research, etc.
Download Catalog for Multi-Tube Vortex Mixer LBN-MV141
Download
Movement : Continuous/ touch operation
Orbital Diameter : 6 mm
Speed : 0 – 3000 rpm
Ambient Temperature : 5° to 40°C
Capacity : 50 ml
Speed Range : 3000 rpm
Control Method : Constant speed
Shaking Orbit : 4.5 mm (circle)
Movement : Orbital
Orbital Diameter : 6 mm
Speed : 5600 rpm
Ambient Temperature : 5° to 40°C
Capacity : 50 ml
Speed Range : 0 to 3000 rpm
Control Method : Knob speed regulation
Shaking Orbit : 4.5 mm (circle)
Movement : Continuous/ touch operation
Orbital Diameter : 6 mm
Speed : 400 – 3000 rpm
Ambient Temperature : 5° to 40°C
Capacity : 50 ml × 4 / 15 ml × 9 / 5 to 10 ml × 12 / 2 ml × 24
Speed Range : Touch: 0 to 3000 rpm, Run: 100 to 3000 rpm
Amplitude : 4.5 mm circular oscillation
Temperature : 5 to 40 ℃，80 %RH
Capacity : 50 ml × 4 / 15 ml × 9 / 5 to 10 ml × 12 / 2 ml × 24
Speed Range : Touch: 0 to 3000 rpm, Run: 200 to 3000 rpm
Amplitude : 4.5 mm circular oscillation
Temperature : 5 to 40 ℃，80 %RH
