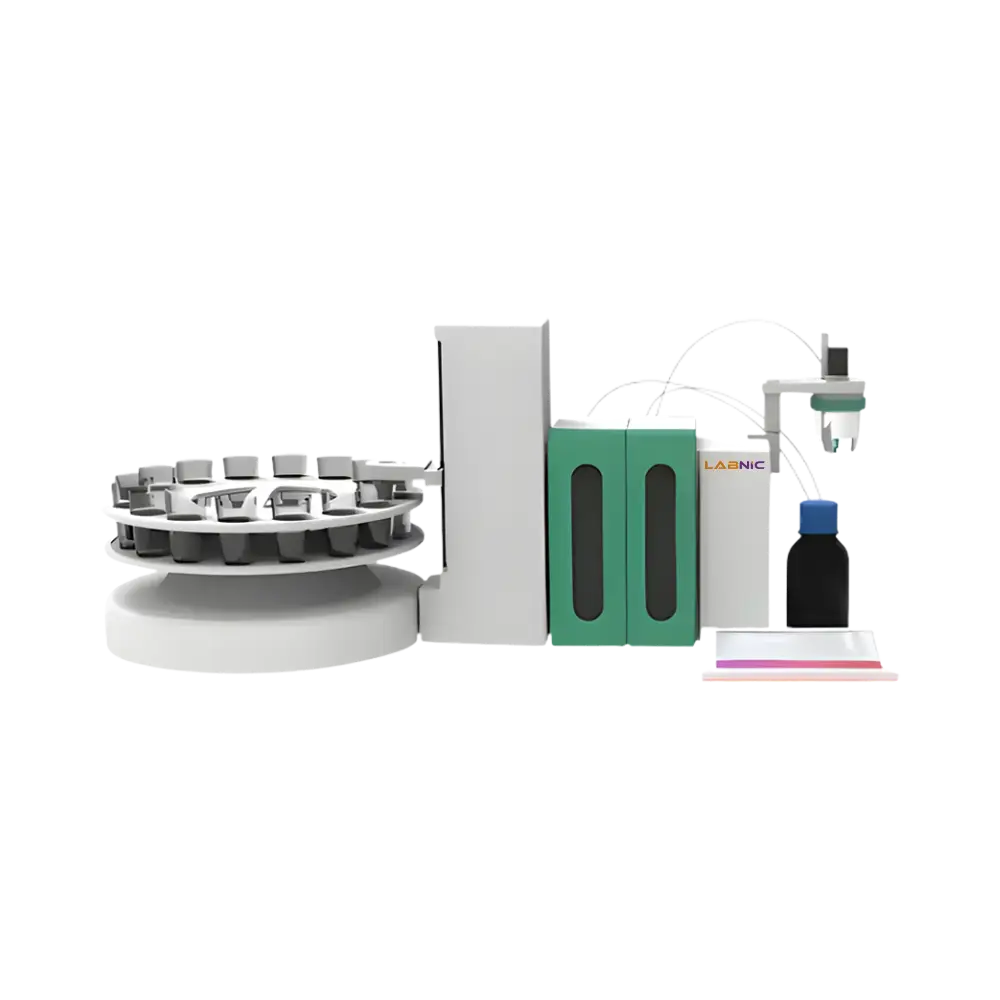

Automatic Potentiometric Titrator LBN-PT133 provides precise electrochemical analysis with a measuring range of –2000 mV to +2000 mV. It features multiple titration modes including acid-base, redox, precipitation, complexation, and non-aqueous analysis. Equipped with high-resolution pH/mV measurement and real-time titration curve display for accurate endpoint detection. Integrated with closed-loop control and a sealed PTFE pipeline for accurate and corrosion-resistant dosing. Our Automatic Potentiometric Titrator is ideal for food, pharmaceutical, environmental, and quality control laboratories.
| Selective Electrode | Chloride Ion Electrode |
| mV Measuring Range | -2000.0 mV to +2000.0 mV |
| pH Measuring Range | -20.000 to +20.000 pH |
| Temperature Range | -5 to120 °C |
| mV Resolution | 0.1 mV |
| pH Resolution | 0.001 pH |
| mV Accuracy | ±0.1 mV |
| pH Accuracy | ±0.002 Ph |
| Temperature Accuracy | ±0.1 °C |
| Measurement Modes | MEAS (pH/mV/T) |
| Calibration | Multipoint pH calibration |
| Acid Dissociation (PKA) | Supported |
| Titration Modes | MET (equal volume), DET (dynamic), timing mode |
| Kinds of Titration | Potentiometric (acid-base, redox, precipitation, complexation, non-aqueous) |
| Burette Type | Built-in Liquid-Adding Unit |
| Burette Capacity | 1, 5, 10, 25, 50 mL |
| Burette Accuracy | Resolution 1/48,000 |
| Built-in Burettes | 2 Built-in Channels |
| Expandable Burettes | Up to 8 Channels |
| Filling Time | 10 seconds (100% filling rate) |
| Sample Changer | Automatic Sampler (GT robot system) |
| Sample Vessel | 250 mL cup |
| Stirring Method | Screw Mixer / Magnetic Stirring |
| Reference Electrodes | 2, Double Junction Ag/AgCl |
| Standard Solution | 3.3 M KCl (100 mL) |
| Data Processing | Editing & Data Handling |
| Compliance Standards | FDA, GMP, GLP, Audit Trail, E-Signature |
| Internal Storage | >300 GB |
| Self-Diagnostics | Automatic Self-Check |
| Communication Interfaces | USB ×2, RS-232, Ethernet |
| Printer | USB Printer Provided |
| Power Consumption | 100W |
| Power Supply | AC 220V, 50/60 Hz |
| Dimensions | 750×560 × 420mm |
| Weight | 40 kg |
Automatic Potentiometric Titrator LBN-PT133 is used for food and agricultural testing, cement chloride analysis, soil organic matter evaluation, and COD measurement in wastewater.
Automatic Potentiometric Titrator LBN-PT133 is used for food and agricultural testing, cement chloride analysis, soil organic matter evaluation, and COD measurement in wastewater.
Most Frequently Asked Questions
1. What are Automatic Potentiometric Titrators used for?
Ans. Automatic Potentiometric Titrators are used for accurate, safe, and repeatable laboratory titration analysis across multiple applications.
2. How do Automatic Potentiometric Titrators improve analytical accuracy?
Ans. Automatic Potentiometric Titrators provide precise burette control and reliable endpoint detection for consistent results.
3. What operation features are available in Automatic Potentiometric Titrators?
Ans. Automatic Potentiometric Titrators feature intuitive touchscreen interfaces for simple method selection and operation.
4. Which titration methods are supported by Automatic Potentiometric Titrators?
Ans. Automatic Potentiometric Titrators support multiple titration methods to accommodate diverse laboratory testing requirements.
5. How do Automatic Potentiometric Titrators manage data and connectivity?
Ans. Automatic Potentiometric Titrators offer reliable data storage and seamless connectivity for efficient laboratory workflows.
6. How do Automatic Potentiometric Titrators support laboratory safety and efficiency?
Ans. Automatic Potentiometric Titrators are designed as compact systems that enhance operational safety and streamline daily laboratory tasks.
Automatic Potentiometric Titrator LBN-PT133 provides precise electrochemical analysis with a measuring range of –2000 mV to +2000 mV. It features multiple titration modes including acid-base, redox, precipitation, complexation, and non-aqueous analysis. Equipped with high-resolution pH/mV measurement and real-time titration curve display for accurate endpoint detection. Integrated with closed-loop control and a sealed PTFE pipeline for accurate and corrosion-resistant dosing. Our Automatic Potentiometric Titrator is ideal for food, pharmaceutical, environmental, and quality control laboratories.
