Overview

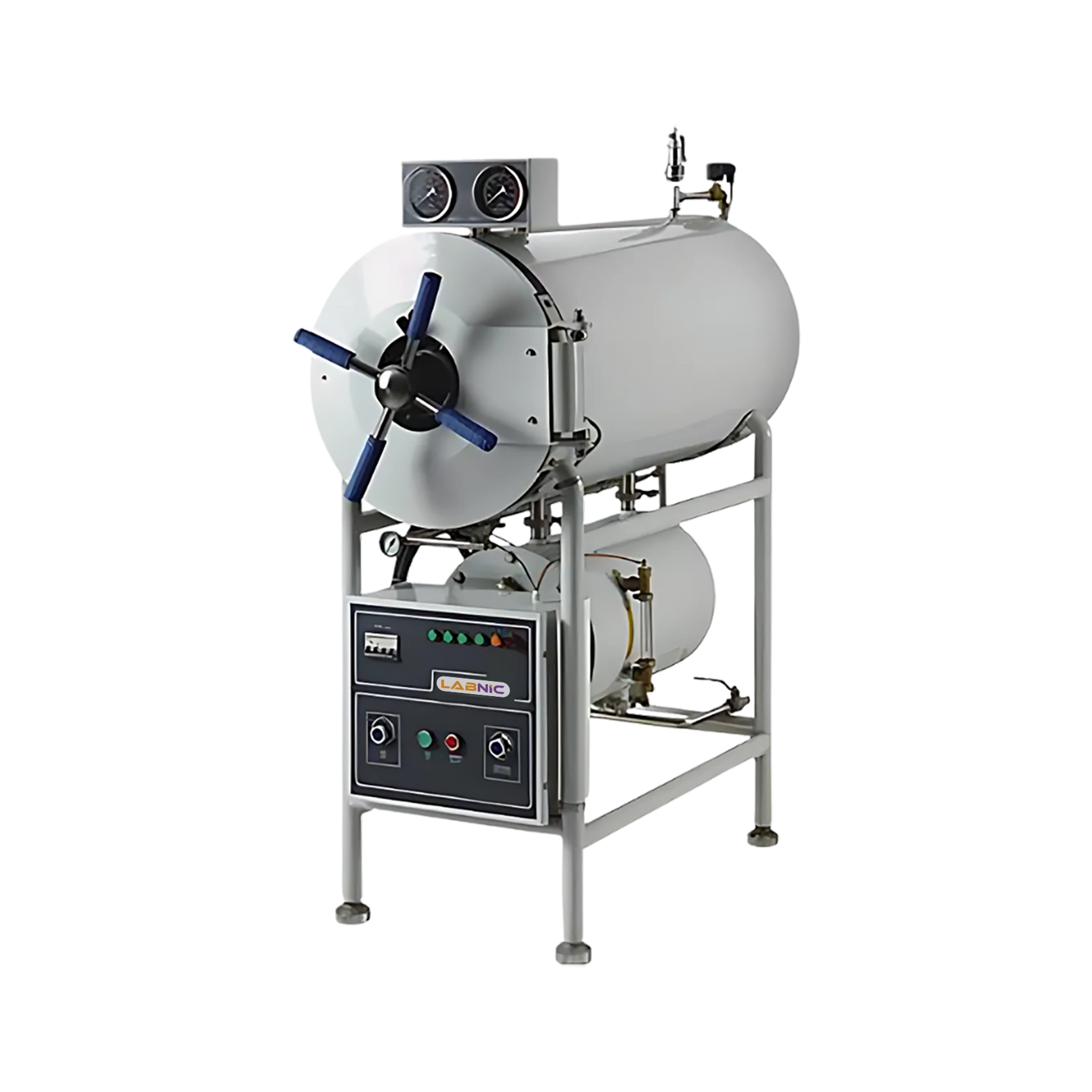

Horizontal Autoclave LBN-CH152 is a front-loading cylindrical autoclave with a 200-liter chamber capacity designed to meet large capacity sterilization needs. It is a programmable cylindrical vessel that enables automatic steam sterilization with precise cycles operating within a timer range of 0 - 60 minutes and a working temperature range of 134°C. The chamber is made of stainless steel for increased durability and reliability, and it has an auto-protect function that shuts off the power if there is insufficient water supply while the process is running.

Specifications :
Sterilizing Chamber Volume 200 L
Working Temperature 134°C
Adjustable Temperature Range 40° - 134°C
Working Pressure 0.22MPa
Sterilization Time 0 – 60 minutes
Drying Time 0 – 60 minutes
Heat Average ≤ ±2°C
Power 9 KW
Power Supply AC 380V, 50Hz
Chamber Dimension (ɸ×D) 515 ×1000 mm
Dimension (L×W×H) 1400×670×1650 mm
Package Dimension (L×W×H) 1560×820×1850 mm
Net Weight 260 Kg
Gross Weight 350 Kg
Features :
  • Stainless steel interior and exterior to increase durability and reliability
  • Standard working temperature 134°C
  • Front loading cylindrical autoclave design
  • Automated drying function
  • Automatic pressure control switch
  • Automatically controlled sterilizing process, easy to operate
  • Over – temperature, over – pressure and auto – protect functions
  • Automatic water level cut-off
  • Safety audible and visible alarms
  • Digital temperature controller
  • Silicon rubber door gasket
  • Door cannot be opened until the pressure in the chamber is reduced to 0.027MPa
  • Safe door lock system ensuring protection during sterilization
  • Control system automatically adjusts steam inlet and outlet according to chamber temperature
Applications :

Cylindrical horizontal autoclave is an ideal equipment for clinics, scientific research institutes, medical laboratories and microbiological organizations to sterilize surgical instruments, glassed fabrics and culture media etc.
