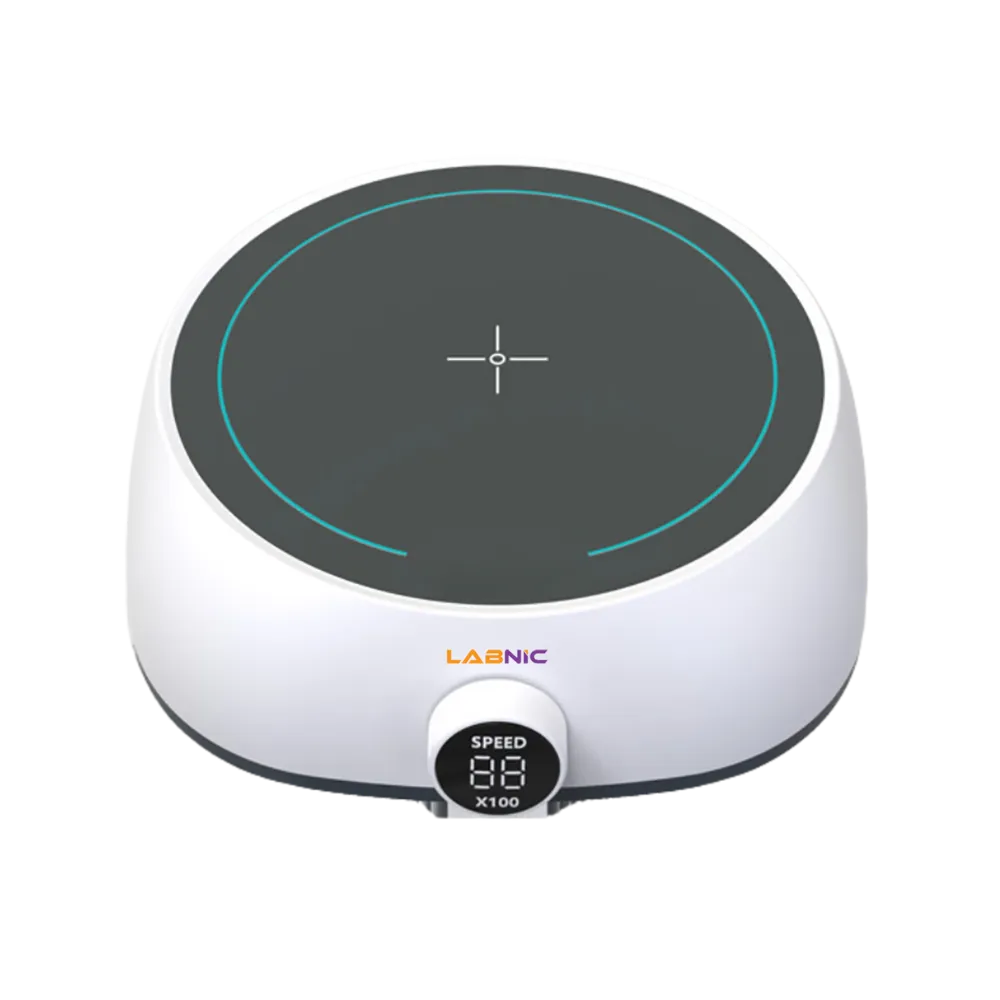

Mini Magnetic Stirrer LBN-MS156 is a compact and lightweight unit ensuring high stirring performance every time. Uniquely designed with a digital knob control for setting and displaying the speed at a range of 200 to 2000 rpm. Nonslip foot with low vibration offers a quiet operation and prevents spillage during the operation.
Function | Stirring |
Speed Range | 200 to 2000 rpm |
Maximum Stirring Volume | 4 L (H2O) |
Control | Digital Knob control |
Motor Type | Brushless motor |
Allowable Ambient Temperature | 5 to 40 ℃, 80 %RH |
Shell Protection Level | IP42 |
Stir Bar Size | 30 to 50 mm |
Voltage | 100 to 240 V, 50/60 Hz |
Power | 10 W |
Product Size | 168 × 160 × 47 mm |
Packaging Dimension | 250 × 200 × 70 mm |
Gross Weight | 0.66 Kg |
Net Weight | 0.46 Kg |
Strong magnetic field resulting in efficient mixing
Large mixing ability with uniform mixing
Equipped with durable brushless motor
Stepless speed regulation with wide speed range
Beaker can be kept on the center point easily with concise panel design
Stable non-slip feet
Mainly used for routine stirring applications for research and clinical lab in the field of life science, industrial quality analysis, etc.,
Download Catalog for Mini Magnetic Stirrer LBN-MS156
