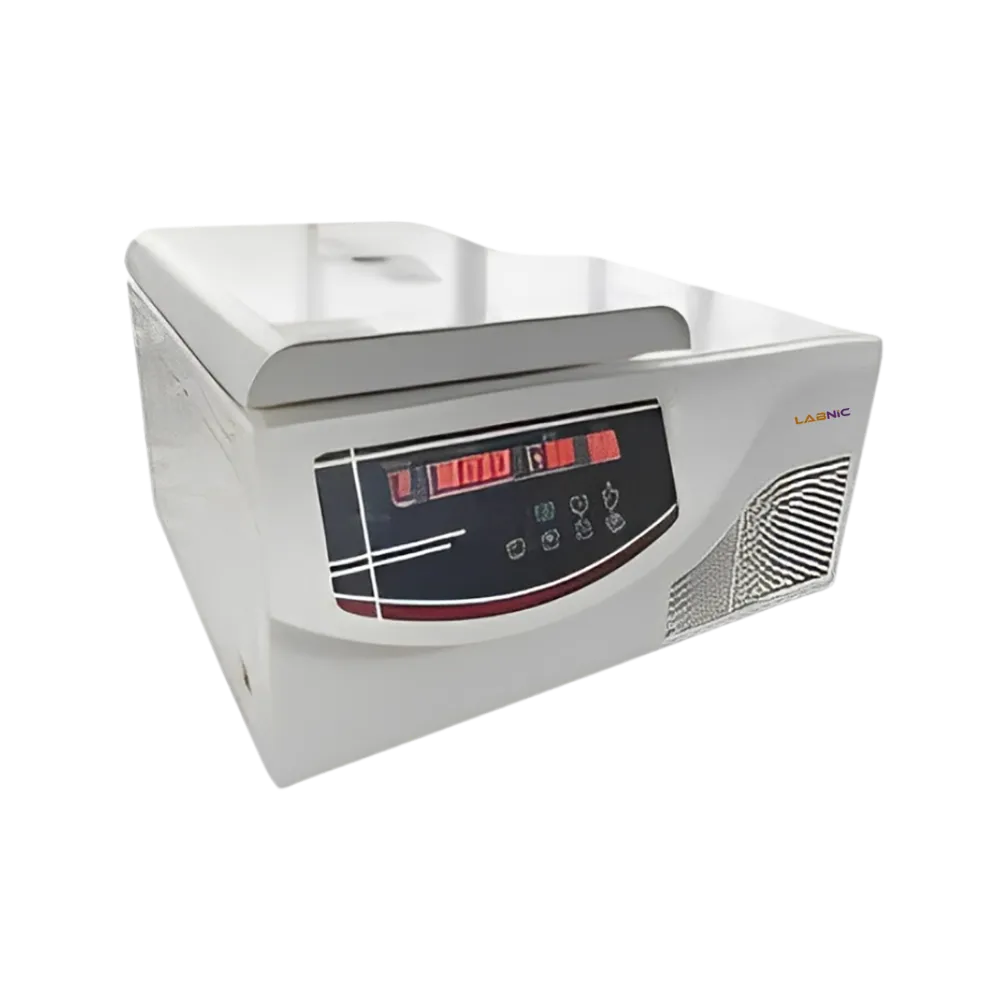

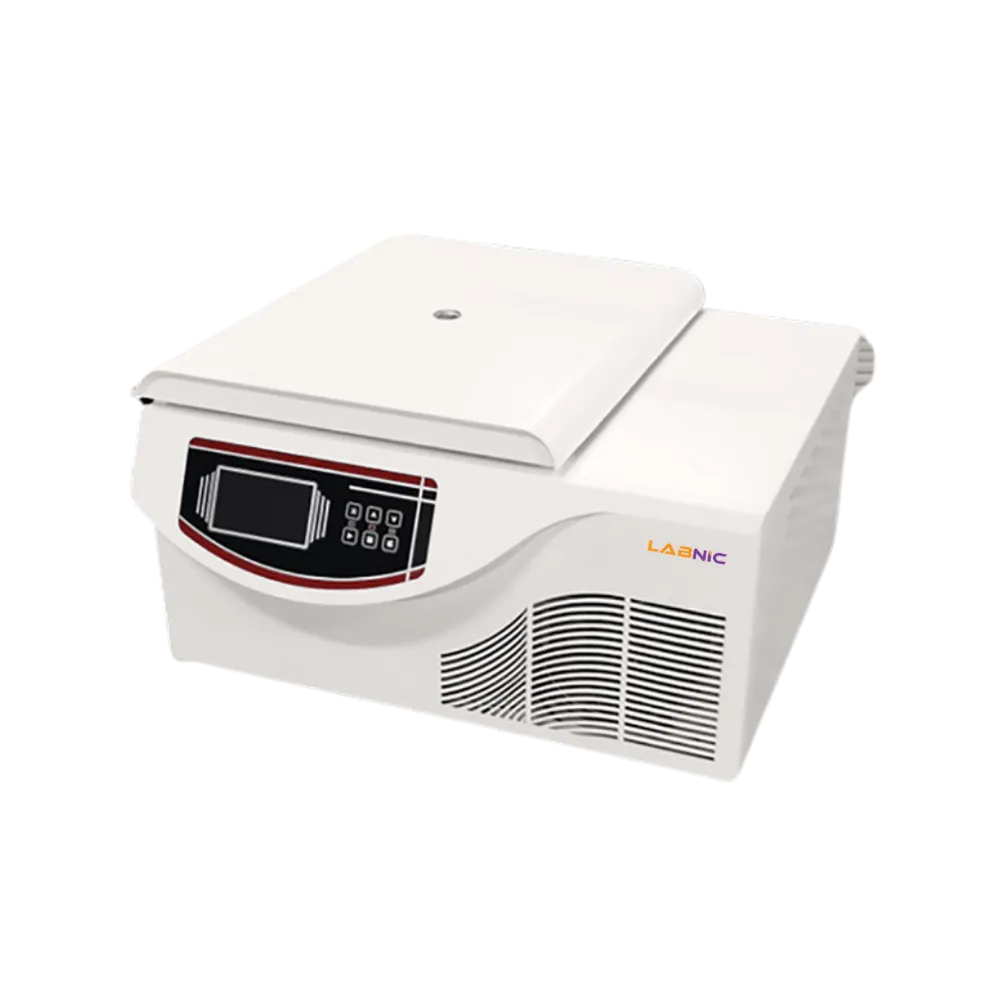

High-Speed Refrigerated Centrifuge LBN- HR146 is a strong and flexible model with a maximum speed of 16000 rpm and a selection of rotor types. For accurate control of speed, time, and relative centrifugal force, it has a micro-controller and an advanced CPU control system. The stainless-steel chamber features a two-cycle refrigeration system and the temperature can be controlled within -20 °C to +40 °C. The digital touch screen panel displays and stores up to 10 programs on the system.
Maximum Speed | 16000 rpm |
Maximum RCF | 21800 × g |
Maximum Capacity | 4 x100ml |
Speed Accuracy | ± 50 rpm |
Time | 0 to 99 mins |
Temperature | -20 °C to +40 °C |
Noise | ≤60 dB |
Display | Digital/LCD display |
Power Supply | AC 220V, 50Hz |
Dimensions (L ×W × H) | 610 × 622 × 360 mm |
Weight | 65 Kg |
Reliable drive system: CFC-free compressor, two-cycle refrigeration, no pollution, high accuracy of temperature
A wide range of rotors that can be pre-cooled in a stopped state
Equipped with digital/Touch LCD screen, micro-processor control, stainless chamber, and brush-less AC frequency conversion motor
Safety interlock system that prevents the centrifuge lid from opening during operation
Emergency lid lock in the event of a power outage
The ability to store 10 programs and rapidly access the most recent one
High-speed refrigerated centrifuge is useful for routine sample analysis in biotechnology, PCR, life sciences, clinicals and institutional laboratories.
Download Catalog for High-Speed Refrigerated Centrifuge LBN-HR146
DownloadMaximum speed : 16000 r/min
Maximum RCF : 18560×g
Time Range : 0 to 99 min
Dimension (W×D×H) : 630×470×350 mm
Capacity : 1.5ml×12 Angle rotor
0.5ml×12 Angle rotor
Maximum speed : 16000 r/min
Maximum RCF : 18560×g
Time Range : 0 to 99 min
Maximum speed : 22000 r/min
Maximum RCF : 18560×g
Time Range : 0 to 99 min
Dimension (W×D×H) : 630×470×350 mm
Maximum RPM : 20000 RPM, stepless speed adjustment, LED display speed, RCF and timer
Maximum RCF : 26500xg
Timer : 0-99min
Rotor capacity : Angle Rotor 1.5ml/2ml x12 (standard)
Maximum Speed : 18000 rpm
Maximum RCF : 23200 × g
Maximum Capacity : 4 x100ml
Speed Accuracy : ± 10 rpm
Maximum Speed : 20000 rpm
Maximum RCF : 27800 × g
Maximum Capacity : 4 x100ml
Speed Accuracy : ± 10 rpm
Maximum Speed : 22000 rpm
Maximum RCF : 34700 × g
Maximum Capacity : 4 x100ml
Speed Accuracy : ± 10 rpm
Maximum Speed : 24000 rpm
Maximum RCF : 47800 × g
Maximum Capacity : 4 x100ml
Speed Accuracy : ± 10 rpm
Maximum Speed : 6000 rpm
Maximum RCF : 6800×g
Temperature Range : -15°C to 40°C
Speed Accuracy : ±50 rpm
Maximum Capacity : 6×2000 ml
Maximum Speed : 4500 rpm
Maximum RCF : 5900×g
Temperature Range : -15°C to 35°C
Maximum RPM : 20000 RPM, stepless speed adjustment, LED display speed, RCF and timer
Maximum RCF : 26500xg
Timer : 0-99min
Rotor capacity : Angle Rotor 1.5ml/2ml x12 (standard)
Maximum RPM : 4000 rpm
Maximum RCF : 2755 × g
Timer : 0 to 99 min
Rotor capacity : 100 ml × 4, 50 ml × 8, 15 ml ×16, 10 ml × 24
Maximum Speed : 4000r/min
Maximum Capacity : 4 × 100ml
Maximum Centrifugal Force : 3150 × g
Speed Accuracy : ± 10r /min
Maximum RPM : 4000 rpm
Maximum RCF : 2325 × g
Timer : 0 to 99 min
Rotor capacity : 20 ml×12 (standard)
Maximum Speed : 500 to 4000 r/min
Maximum RCF : 2220xg
Maximum Capacity : 125/10 ml vacuum blood tube
Speed Regulation Accuracy : ±30 r/min
Maximum speed : 4000 rpm
Maximum RCF : 880 × g
Rotor capacity : 0.2 ml × 6, 0.5 ml × 6, 1.5 ml × 6, 2 ml × 6, 0.2 ml PCR tube × 16(double rows)
Voltage : 100 to 250 V 50 to 60 Hz
Labnic High Speed Centrifuge operates at a speed range of 0 to 16,000 RPM, allowing for precise separation of samples. They offer customizable speed settings, enabling separation based on the specific density of various substances. These centrifuges are designed to handle multiple samples simultaneously, significantly reducing processing time. They are compatible with different rotor types for various tube sizes and applications. Our High Speed Centrifuge features a space-efficient structure that effectively utilizes laboratory space while ensuring optimal performance.
Maximum Speed : 10000 r/min
Maximum RCF : 11000×g
Time Range : 0 to 999 min
Power Supply : AC220V 50Hz 8A
Maximum Capacity : Angle rotor 1.5/2 ml×12
Maximum Speed : 16000 r/min
Maximum RCF : 18320×g
Time Range : 0 to 99 min
Maximum RPM : 12000 rpm
Maximum RCF : 15800 × g
Timer Range : 0 to 99 min
Speed Accuracy : ± 50 r/min
Maximum RPM : 16000 rpm
Maximum RCF : 17000× g
Timer : 0 to 99 min
Rotor capacity : Angle rotor 1.5 ml/2 ml ×12 (standard)
Maximum RPM : 16000 RPM, stepless speed adjustment, LED display speed and timer
Maximum RCF : 17000×g
Timer : 0 to 99min
Rotor capacity : 1.5ml/2ml×12 (standard)
Maximum Speed : 12000 rpm
Maximum RCF : 15800 × g
Rotor Capacity : 24 Pieces of Capillary
Noise : ≤ 55dB
Maximum Speed : 18500 rpm
Maximum RCF : 19920 × g
Noise : ≤ 60dB
Time : 0 to 99 min
Maximum RPM : 12000 rpm
Maximum RCF : 15300xg
Timer : 0 to 30 minutes
Rotor capacity : ø 1.5 75 mmx24 capillary tubes
Speed Range : 200 to 14000 rpm, Increment of 10 rpm
Maximum RCF : 18620 ×g
Speed Accuracy : ±20 rpm
Rotor : 2 types
Maximum RPM : 4000 rpm
Maximum RCF : 1780 × g
Timer : 0 to 99 min
Rotor capacity : Angle rotor 15 ml / 10 ml × 8
