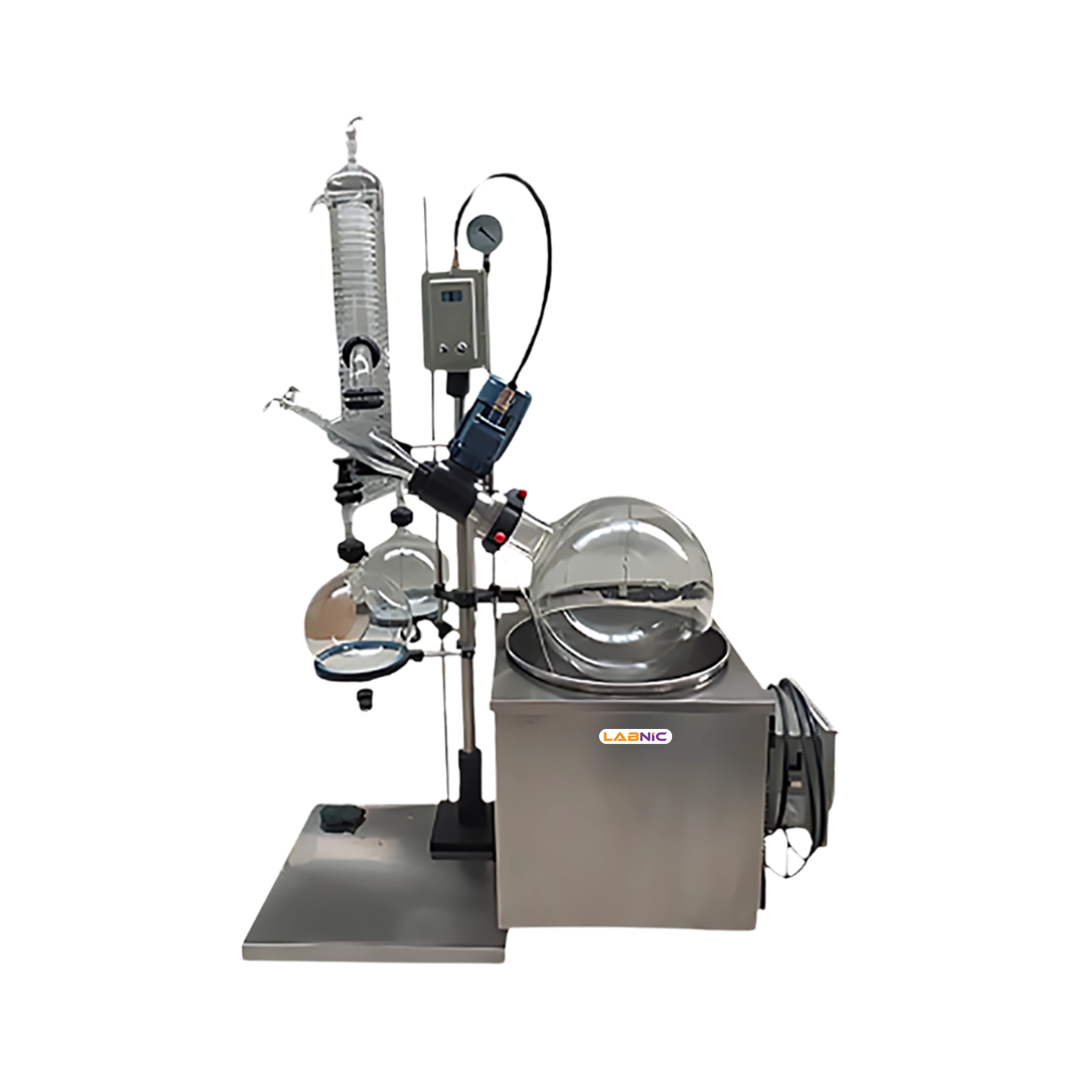

Rotary Evaporator LBN-RE137 equipped with LCD screen display for viewing the different values. It comprises of glass condenser, glass rotary bottle, and glass collection bottle along with it. It has explosion protection of motor, controller and bath. It utilizes double serpentine tube. Maximum temperature ranges from RT-98℃ with water bath. Provided with vacuum pump to improve the efficiency.
| Speed | 3 to 120, rpm digital display |
| Speed adjust | Frequency conversion |
| Bath | Heating power: 6kw/380v RT to 99℃ (water) |
| Rotation Bottle | 50LBig flange mouth (￠inner100mm) |
| Collection Bottle | 20Lflange mouth, with PTFE discharging valve |
| Condenser | Lord, vice double condenser |
| Evaporation rate | ≥ 5L/hour |
| Motor power | 250W |
| Size | 1300×800×2300 mm |
High evaporation rate
Double condenser and explosion proof
Vacuum pump and chillers are available
It is an ideal instrument for concentration drying and recycling
Constant heating with uniform rotation
Excellent air tightness and excellent anti-corrosion function
Glass materials helps in uniform thickness
LCD display to view the values
It is widely used in chemical, pharmaceutical, food, environmental, university research laboratory and industrial mass production.
Download Catalog for Rotary Evaporator LBN-RE137
DownloadA rotary evaporator is a laboratory instrument used for efficient and gentle removal of solvents from liquid samples through evaporation and condensation. It comprises a flask for the liquid mixture, a rotating heating bath to apply heat, and a rotating flask with a vacuum system for rapid and controlled evaporation. The system operates under reduced pressure, which lowers the boiling point of the solvent, allowing for its removal at lower temperatures to prevent sample degradation. Rotary evaporators are vital in various scientific disciplines, including chemistry and biology, for tasks such as concentrating solutions, purifying substances, and solvent recovery. They play a crucial role in sample preparation and analysis by producing highly concentrated and pure samples, essential for research, testing, and production processes in industries like pharmaceuticals, food, and environmental analysis.
Rotary Flask Capacity : 0.5 L to 2 L
Receiving Flask Capacity : 1 L
Water Bath Capacity : 6.5 L
Bath Size : ɸ254×130 mm
Rotary Flask Capacity : 0.5 L to 2 L
Receiving Flask Capacity : 1 L
Water Bath Capacity : 6.5 L
Bath Size : ɸ254×130 mm
Water Bath Capacity : 5 L
Rotating Speed : 20 to 200 rpm
Lifting Distance : 110 mm + 100 mm
Lifting Function : Sliding Manual Lift + Auxiliary
Rotary Flask Capacity : 5 L
Receiving Flask Capacity : 3 L
Water Bath Capacity : 12 L
Bath Size : ɸ300×170 mm
Rotary Flask Capacity : 10 L
Receiving Flask Capacity : 5 L
Water Bath Capacity : 21 L
Bath Size : ɸ350×220 mm
Rotary Flask Capacity : 20 L
Receiving Flask Capacity : 10 L
Water Bath Capacity : 41 L
Bath Size : ɸ450×260 mm
Rotary Flask Capacity : 50 L
Receiving Flask Capacity : 20 L
Water Bath Capacity : 77 L
Bath Size : ɸ550×320 mm
Rotating Flask : 5L
Optional Rotating Flask : 3L, 2L, 1L
Receiving Flask : 3L
Lifting Type : Automatic lifting
Down mode : Automatic lifting
The speed range : 20 to 110(rpm)
Temperature range : （water )RT to 98(℃)
condenser : Vertical type, double serpentine tube
Down mode : Automatic lifting
The speed range : 20 to 110 rpm
Temperature range : (water) RT to 98℃
Condenser : Vertical type, double serpentine tube
Rotating Flask : 5L
Optional Rotating Flask : 3L, 2L, 1L
Receiving Flask : 3L
Lifting Type : Automatic lifting
Bath Capacity : 5 L
Speed range : 20-280 rpm
Motor Type : Brushless DC motor
Heat Temperature range : RT ~180°C
