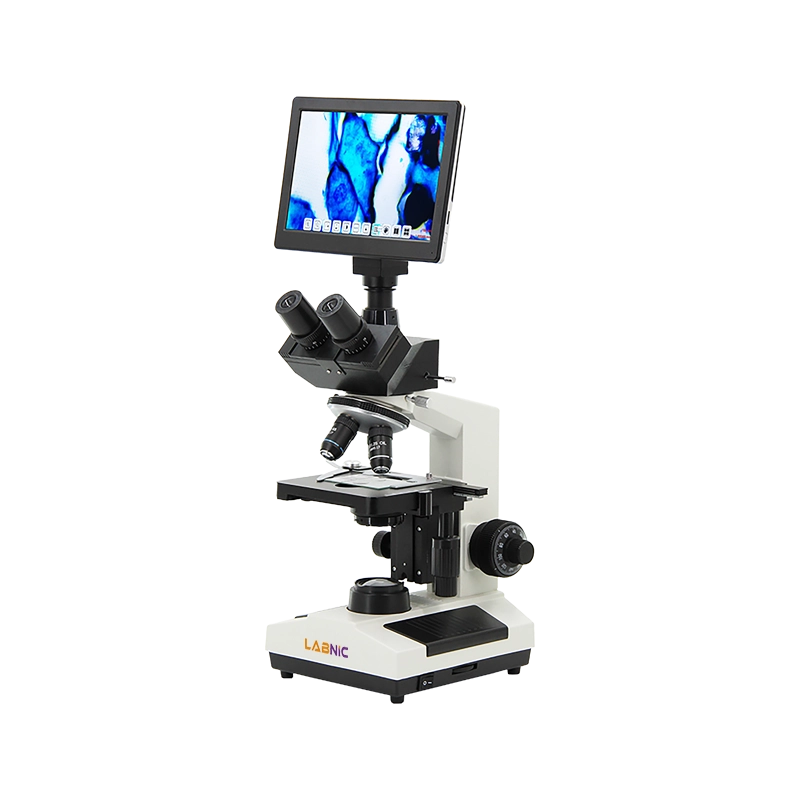

Digital Microscope LBN-DM144 has a sliding trinocular head type with a 55-75mm interpupillary, a 360° head rotation, and a 45° inclination. It has an outward quadruple nosepiece and a 1.25-inch aperture abbe condenser. A 5-megapixel camera with a C-mount and a digital eyepiece with a 23.2-mm diameter are integrated, along with a halogen light source.
| Optical System | Achromatic |
|---|---|
| Standard Magnification | 40x-1600x (optional), 140.68x-3517x (total) |
| Head Type | Siedentopf Trinocular |
| Inclination | 45° |
| Rotation | Head Rotate 360° |
| Interpupillary | 55-75mm |
| Diopter | Both Tube Adjustable |
| Light Path | E100:P0/E0:P100 |
| Eyepiece | WF10x/18mm, 2 pc, WF10x/11mm, 2 pc |
| Diameter | 23.2 mm |
| Nosepiece | Outward 4 holes |
| Objective Type | Achromatic |
| Magnification | 4x, 10x, 40x (s), 100x (o, s) |
| Stage | 2 Layer Mechanical |
| Size | 140 × 140mm |
| Moving Size | 50 × 75mm |
| Focusing Scale | 0.002mm |
| Condenser | Abbe 1.25 N. A |
| Light Source Type | Halogen |
| Transmit Light | 6V20W Halogen |
| Video Adapter | C-Mount 0.1x |
| Pixel | 5.0MP |
| Mounting | C-Mount |
| Output | USB, SD/TF Card, USB Hard Disk |
| Power Supply Type | AC110V-240V |
| Weight | 12Kg |
| Dimensions (L × D × H) | 390 × 350 × 520 mm |
It consists of an achromatic optical system
Quadruple outward nosepiece
Siedentopf trinocular head type
Coaxial coarse and fine focusing type with safety stop lock ring and adjustable tension
Abbe 1.25 N. A condenser with iris diaphragm; rack and pinion up/down
Halogens are used as light sources
A 5-megapixel camera is used, USB as output
Digital microscope is employed for sample, blood cell, and tissue culture examination, in a variety of settings including medical research facilities, biological research labs, metallurgy, health clinics, etc.
