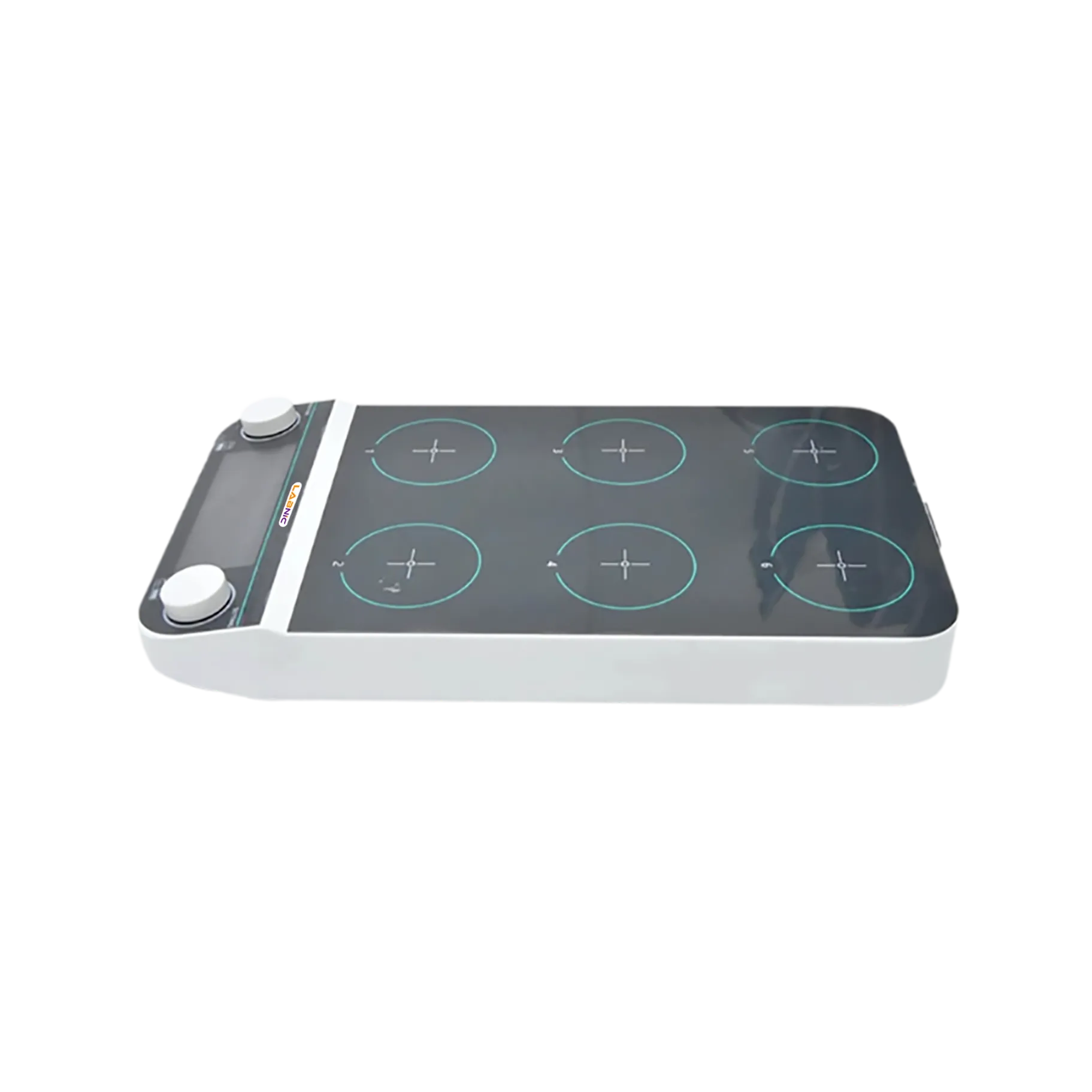

Multi-Position Magnetic Stirrer LBN-MM152 can simultaneously mix 6 sample solutions with a maximum stirring capacity of 500 ml, it homogenously mixes samples at a rotating speed of 50 to 1500 rpm. Adopts timing and locking function, having strong magnetic force it produces an efficient stirring effect. Parameters like rpm and time can be adjusted synchronously or asynchronously to meet various experiment needs.
Speed Range | 50 to 1500 rpm |
Maximum Stirring Volume | 6 × 500 ml |
No. Of Stirring Points | 6 |
Timing | 23 h / 59 min / 59 sec |
Display Type | LCD liquid crystal display |
Mixing Direction | Right |
Control | Asynchronous control (synchronization can be set) |
Motor Type | Brushless motor |
Allowable Ambient Temperature | 5 to 40 ℃, 80 % RH |
Bar Size | 20 to 50 mm |
Plate Material | PET anti-corrosion plate |
Plate Size | 110 mm |
Protection Class | IP42 |
Dimensions | 305× 225× 65 mm |
Control panel with knobs and LCD
Integrated with timing and locking function
Parameters like rpm and time can be set separately for each station, and they can also be set synchronously, to meet various experiment needs
Stable and maintenance-free brushless motor
Strong magnetic force with better stirring effect
Magnetic Stirring bar with strong magnetic force with a better stirring effect
It has a maximum stirring capacity of 500 ml for each station
Multi-Position Magnetic Stirrers are mainly used for routine stirring applications for research and clinical lab in the field of life science, industrial quality analysis, etc.
Download Catalog for Multi-Position Magnetic Stirrer LBN-MM152
DownloadSpeed Range : 50 to 1500 rpm
Maximum Stirring Volume : 4 × 500 ml
No. Of Stirring Points : 4
Timing : 23 h / 59 min / 59 sec
Speed Range : 50 to 1500 rpm
Maximum Stirring Volume : 8 × 500 ml
No. Of Stirring Points : 8
Timing : 23 h / 59 min / 59 sec
Motor : Brushless motor
Maximum amount of stirring (H20) : 20 L
RPM : 50 to 1200 rpm
Timing : 1 min to 23 h 59 min
Speed Range : 50 to 2200 rpm
Maximum Stirring Quantity [H2O] : 20 L
Speed Display Accuracy : ±3 rpm
Speed Display : LCD
Speed Range : 50 to 2200 rpm
Maximum Stirring Quantity [H2O] : 40 L
Speed Display Accuracy : ±3 rpm
Speed Display : LCD
Speed Range : 50 to 2200 rpm
Maximum Stirring Quantity [H2O] : 20 L
Speed Display Accuracy : ±3 rpm
Speed Display : LCD
Motor : Brushless motor
Maximum amount of stirring (H20) : 10 L
RPM : 100 to 2000
Timing : 1 min to 23 h 59 min
Stirring Capacity : 2000 mL
Stirring Speed : 0~1250 rpm
Timing Work Range : 0~999 minutes
Heating Power : 380 W
Function : Stirring
Speed Range : 200 to 2000 rpm
Maximum Stirring Volume : 2 L (H2O)
Control : Rotary knob / LCD
Function : Stirring
Speed Range : 200 to 2000 rpm
Maximum Stirring Volume : 4 L (H2O)
Control : Digital Knob control
Stirring capacity : 20
Speed range : 200-1800rpm
Input power : 50w
Plate dimension : 180×180mm
Stirring Capacity : 2000 mL
Stirring Speed : 0~1250 rpm
Timing Work Range : 0~999 minutes
Heating Power : 450 W
Temperature Range : RT - 550℃
Speed Range : 100 – 1500 rpm
Maximum Stirring Volume : 20 L
Stirring Position : 1
Temperature Range : RT - 500℃
Speed Range : 100 – 1500 rpm
Maximum Stirring Volume : 30 L
Stirring Position : 1
Function : Heating and stirring
Speed Range : 50 to 1500 rpm
Maximum Stirring Volume : 3 L
Plate Temperature : 300 ℃
Temperature Range : RT 5℃ - 380℃
Speed Range : 200 – 1500 rpm
Maximum Stirring Volume : 5 L
Stirring Position : 1
Function : Heating and stirring
Speed Range : 50 to 1500 rpm
Maximum Stirring Volume : 2L (H2O)
Plate Temperature : 260 ℃
Function : Stirring
Speed Range : 50 to 1100 rpm
Maximum Stirring Volume : 30 L
Speed Regulation Accuracy : ± 10 rpm/min
Function : Stirring
Speed Range : 50 to 1300 rpm
Maximum Stirring Volume : 15 L
Speed Regulation Accuracy : ± 10 rpm/min
Function : Stirring
Speed Range : 50 to 1100 rpm
Maximum Stirring Volume : 50 L
Speed Regulation Accuracy : ± 10 rpm/min
Function : Stirring
Speed Range : 50 to 1500 rpm
Maximum Stirring Volume : 10 L
Speed Regulation Accuracy : ± 10 rpm/min
