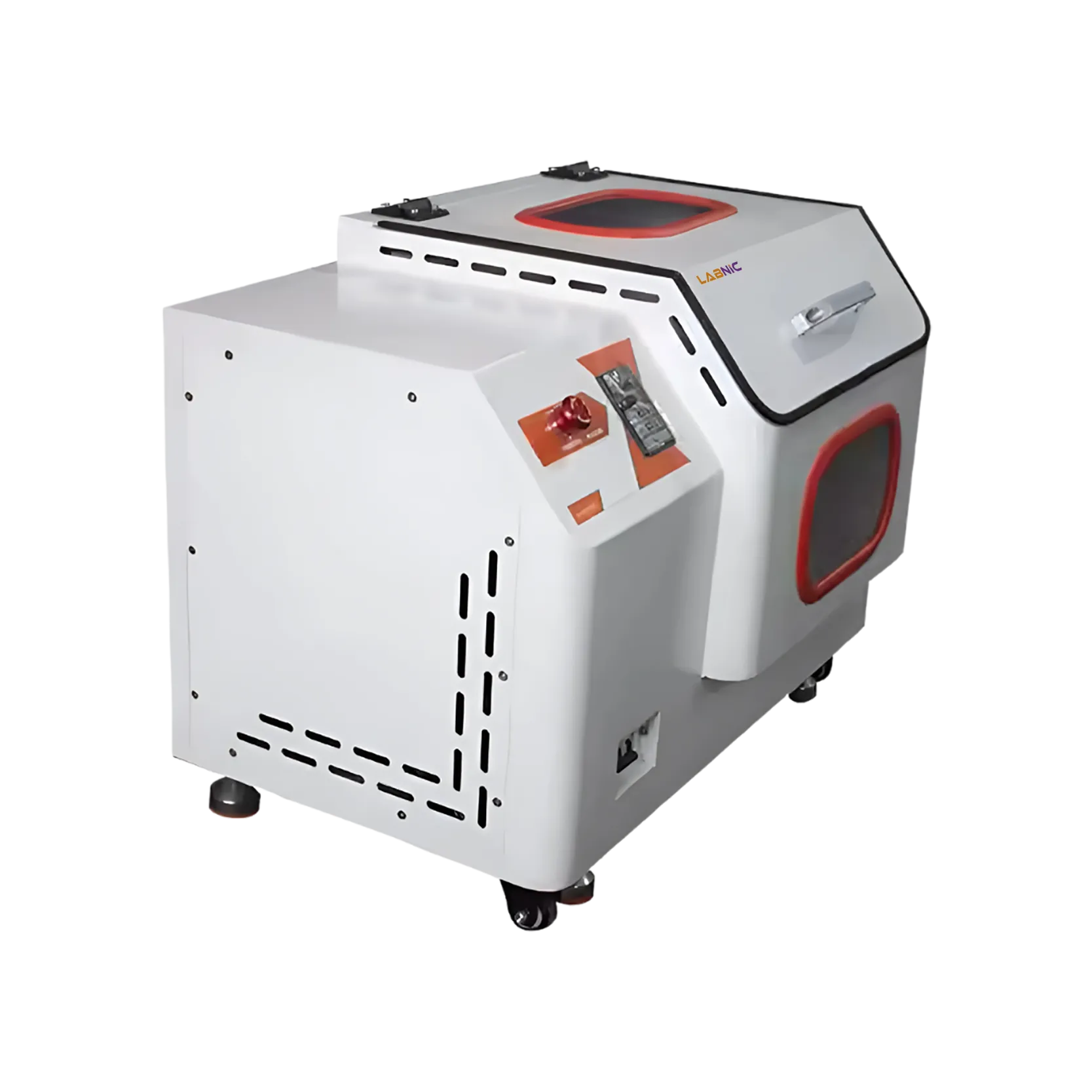

Planetary Ball Mill Machine LBN-BM145

Planetary Ball Mill Machine LBN-BM145

Planetary Ball Mill Machine LBN-BM145 is often used when the highest degree of fineness is required. It is a low noise and high efficiency providing device with a capacity of 8000 ml and a rotation speed of 60 – 560 r/min. It has a single gear with a noise reduction of <20 dB and a stable gear transmission speed to ensure test consistency and repeatability. It has back and side radiating holes for better heat dissipation and to extend machine life.

Capacity 8000 ml
Each Jar Capacity 500 – 2000 ml
Vacuum Jar Capacity 250 – 1000 ml
Jar Quantity 2 – 4
Type Planetary
Speed Rate 2:1 r/min
Revolution Speed 30 - 280 r/min
Rotation Speed 60 - 560 r/min
Long Run Time 100 Hr
Run Time 1 – 9999 Hr
Noise <60 dB
Multi Section Speed Setting 7 sections
Feed Particle Size <15 mm, Hard material <3 mm
Grain Size 0.1 μm or 100 nm
Ball Material Ratio (2~10):1
Grinding Ways Dry/wet/Vacuum grinding
Loading And Unloading Method Intermittent type
Transmission Mode Gear drive
Motor Power 1.5 Kw
Rated Voltage 220 V
Rated Power 750 W
Frequency 50 Hz
Dimension 80×60×75 cm
Machine Weight 115 Kg

Powerful and quick grinding down to nano range

Reproducible results due to energy and speed control

Suitable for long-term trials

4 different types of grinding modes

Safety slider for safe operation

Wide range of materials for contamination free grinding

Perfect stability on lab bench

Programmable starting time

Adjustable belt-tightness with extended service life

Adopts rolling friction drive between metal wheel and abrasive wheel

Compact structure with clamshell

Back and side radiating holes for heat dissipation

Two windows for observation and control grinding process better

Planetary ball mill is widely used in fields of geology, metallurgy, electronics, chemical industries, medicinal departments, environmental protection and biological laboratories etc.
