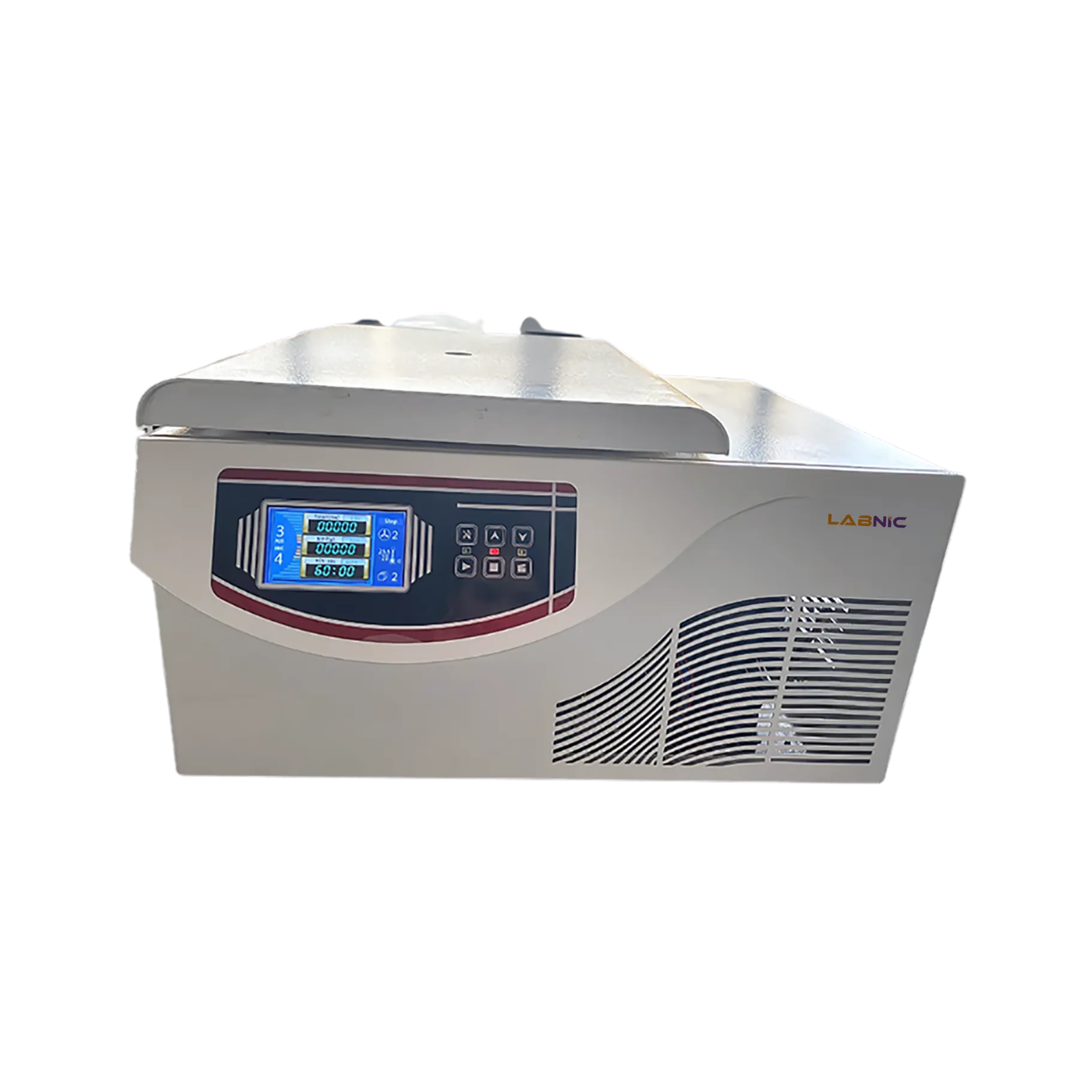

High-Speed Refrigerated Centrifuge LBN- HR148 is a strong and flexible model with a maximum speed of 20000 rpm and a selection of rotor types. For accurate control of speed, time, and relative centrifugal force, it has a micro-controller and an advanced CPU control system. The stainless-steel chamber features a two-cycle refrigeration system and the temperature can be controlled within -20 °C to +40 °C. The digital touch screen panel displays and stores up to 10 programs on the system.
| Maximum Speed | 20000 rpm |
| Maximum RCF | 27800 × g |
| Maximum Capacity | 4 x100ml |
| Speed Accuracy | ± 10 rpm |
| Time | 0 to 99 mins |
| Temperature | -20 °C to +40 °C |
| Noise | ≤60 dB |
| Display | Digital/LCD display |
| Power Supply | AC 220V, 50Hz |
| Dimensions (L ×W × H) | 610 × 622 × 360 mm |
| Weight | 65 Kg |
Reliable drive system: CFC-free compressor, two-cycle refrigeration, no pollution, high accuracy of temperature
A wide range of rotors that can be pre-cooled in a stopped state
Equipped with digital/Touch LCD screen, micro-processor control, stainless chamber, and brush-less AC frequency conversion motor
Safety interlock system that prevents the centrifuge lid from opening during operation
Emergency lid lock in the event of a power outage
The ability to store 10 programs and rapidly access the most recent one
High-speed refrigerated centrifuge is useful for routine sample analysis in biotechnology, PCR, life sciences, clinicals and institutional laboratories.
Download Catalog for High-Speed Refrigerated Centrifuge LBN-HR148
Download
Maximum speed : 16000 r/min
Maximum RCF : 18560×g
Time Range : 0 to 99 min
Dimension (W×D×H) : 630×470×350 mm
Capacity : 1.5ml×12 Angle rotor
0.5ml×12 Angle rotor
Maximum speed : 16000 r/min
Maximum RCF : 18560×g
Time Range : 0 to 99 min
Maximum speed : 22000 r/min
Maximum RCF : 18560×g
Time Range : 0 to 99 min
Dimension (W×D×H) : 630×470×350 mm
Maximum RPM : 20000 RPM, stepless speed adjustment, LED display speed, RCF and timer
Maximum RCF : 26500xg
Timer : 0-99min
Rotor capacity : Angle Rotor 1.5ml/2ml x12 (standard)
Maximum Speed : 16000 rpm
Maximum RCF : 21800 × g
Maximum Capacity : 4 x100ml
Speed Accuracy : ± 50 rpm
Maximum Speed : 18000 rpm
Maximum RCF : 23200 × g
Maximum Capacity : 4 x100ml
Speed Accuracy : ± 10 rpm
Maximum Speed : 22000 rpm
Maximum RCF : 34700 × g
Maximum Capacity : 4 x100ml
Speed Accuracy : ± 10 rpm
Maximum Speed : 24000 rpm
Maximum RCF : 47800 × g
Maximum Capacity : 4 x100ml
Speed Accuracy : ± 10 rpm
Maximum Speed : 6000 rpm
Maximum RCF : 6800×g
Temperature Range : -15°C to 40°C
Speed Accuracy : ±50 rpm
Maximum Capacity : 6×2000 ml
Maximum Speed : 4500 rpm
Maximum RCF : 5900×g
Temperature Range : -15°C to 35°C
Maximum RPM : 20000 RPM, stepless speed adjustment, LED display speed, RCF and timer
Maximum RCF : 26500xg
Timer : 0-99min
Rotor capacity : Angle Rotor 1.5ml/2ml x12 (standard)
Maximum RPM : 4000 rpm
Maximum RCF : 2755 × g
Timer : 0 to 99 min
Rotor capacity : 100 ml × 4, 50 ml × 8, 15 ml ×16, 10 ml × 24
Maximum Speed : 4000r/min
Maximum Capacity : 4 × 100ml
Maximum Centrifugal Force : 3150 × g
Speed Accuracy : ± 10r /min
Maximum Speed : 500 to 4000 r/min
Maximum RCF : 2220xg
Maximum Capacity : 125/10 ml vacuum blood tube
Speed Regulation Accuracy : ±30 r/min
Maximum RPM : 4000 rpm
Maximum RCF : 2325 × g
Timer : 0 to 99 min
Rotor capacity : 20 ml×12 (standard)
Maximum RPM : 16000 rpm
Maximum RCF : 17000 x g
Timer : 0 to 99 min
Rotor capacity : 1.5 ml/2 ml ×12 (standard)
Maximum RPM : 16000 RPM, stepless speed adjustment, LED display speed and timer
Maximum RCF : 17000×g
Timer : 0 to 99min
Rotor capacity : 1.5ml/2ml×12 (standard)
Maximum Speed Range : 0 to 6000 rpm
Speed Accuracy : ± 10 rpm
Maximum RCF : 5040 xg
Timer Range : 0 to 99 min
Maximum RPM : 16000 rpm
Maximum RCF : 17000× g
Timer : 0 to 99 min
Rotor capacity : Angle rotor 1.5 ml/2 ml ×12 (standard)
Maximum Capacity : Angle rotor 1.5/2 ml×12
Maximum Speed : 16000 r/min
Maximum RCF : 18320×g
Time Range : 0 to 99 min
Maximum RPM : 4000 rpm
Maximum RCF : 1780 × g
Timer : 0 to 99 min
Rotor capacity : Angle rotor 15 ml / 10 ml × 8
Maximum speed : 4000 rpm
Maximum RCF : 880 × g
Rotor capacity : 0.2 ml × 6, 0.5 ml × 6, 1.5 ml × 6, 2 ml × 6, 0.2 ml PCR tube × 16（double rows）
Voltage : 100 to 250 V 50 to 60 Hz
Maximum Speed : 18500 rpm
Maximum RCF : 19920 × g
Noise : ≤ 60dB
Time : 0 to 99 min
Maximum RPM : 12000 rpm
Maximum RCF : 15300xg
Timer : 0 to 30 minutes
Rotor capacity : ø 1.5 75 mmx24 capillary tubes
Maximum Speed : 12000 rpm
Maximum RCF : 15800 × g
Rotor Capacity : 24 Pieces of Capillary
Noise : ≤ 55dB
Speed Range : 200 to 14000 rpm, Increment of 10 rpm
Maximum RCF : 18620 ×g
Speed Accuracy : ±20 rpm
Rotor : 2 types
